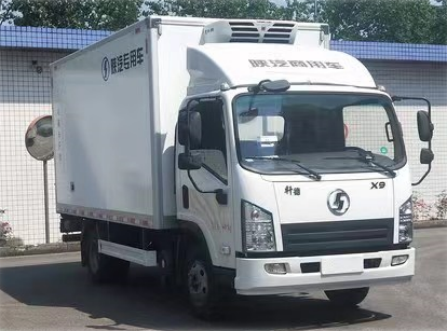

MODEL/车型 | SX5123E1Y14B3810 |
Steering wheel position方向盘位置 | left-hand drive 左舵 |
Driving type/驱动形式 | 4×2 |
Max.Weight/最大总质量（T） | ≤12t |
Wheelbase/轴距(mm) | 3800 |
Max. Speed/最高车速(km/h) | 108km/h |
Engine/ 发动机 | Brand/品牌 | YUCHAI/玉柴 |
Model/型号 | YC4D140-33 |
Emission Standard/排放 | Euro II/欧二 |
Rated output power 功率 | 103KW/140HP |
Rated speed/ 额定转速（r/min） | 2800rpm |
Max.Torque/ 最大扭矩转速 | 420N.m/ 1400~1700rpm |
Displacement(L)排量 | 4.214 L |
Transmission/变速箱 | Brand/品牌 | FAST/法士特 |
Model/型号 | 6DS50T-D |
Front axle/ 前轴 | Brand/品牌 | Domestic brand / 国产品牌 |
Model/型号 | 2.5T |
Rear axle/ 后桥 | Brand/品牌 | Domestic brand / 国产品牌 |
Model/型号 | 6T simple reduce axle，ratio 5.83 6吨 单级减速驱动桥,速比 5.83 |
Clutch/离合器 | Assisted clutch 离合器助力 |
Steering/转向机 | Domestic technology / 国内技术 |
Suspension/悬架 | Leaf spring suspension,front 9 and rear 11+5 板簧悬架，前9后11+5 |
Fuel tank/燃油箱 | 130L Iron fuel tank / 130L 铁质燃油箱 |
Wheels and tires/轮胎 | 7.50R16LT/14PR with spare tyre 7.50R16LT/14PR带备胎 |
Brakes/制动 | Running brake:Dual circuit compressed air brake/行车制动 |
Parking brake:Air discharging with spring control/停车制动 |
Auxiliary brake: Engine exhaust brake/发动机排气辅助制动 |
Cabin/驾驶室 | Model x9-1995, Fixed mechanical suspension/air conditioning/electric windows/Radio/central locking/alarm of safety belt unfastened/simple steering wheel/Deflector on top X9-1995，固定式机械悬置/空调/电动车窗/收放机/中控锁/安全带锁扣报警/普通方向盘/车顶导流罩 |
Others/其他 | front and rear hook /100Ah maintenance-free battery/ air filter/air reservoir in iron/ downward exhaust gas 前后拖钩/100Ah免维护蓄电池/单级空滤器/铁质储气筒/下排气 |
Vehicle Up-body 上装规格 | refrigerator cargo：5000x2200x2000 all-plastic fully enclosed composite box plate structure (external RV-grade FRP + inner food-grade FRP + high-density insulation layer) hot press one-time molding, box body heat insulation bridge treatment; sub-frame electrophoresis coating; high-quality thickened aluminum alloy profile edge wrapping, high-quality 304 stainless steel rear door frame冷藏车厢： 5000x2200x2000全塑全封闭复合厢板结构（外房车级玻璃钢+内食品级玻璃钢+高密度保温层）热压机一次成型，厢体隔热断桥处理；副车架电泳涂装；优质加厚铝合金型材包边、优质304不锈钢后门框；优质304不锈钢锁具、LED顶灯、防水开关；EPDM多爪密封条、不锈钢上车把手；整体隔热栅应用，底板优质铝花纹板；符合要求的反光标识反光贴；合资专供冷机DZ7000（-18°温度可调）。 |
