SHACMAN Wide Body Dump Truck

Advantages:

1, high security:

Cab adopts single door single seat mine offset cab, beautiful shape, metal skeleton + skin structure, with the same level of safety in Europe, in line with European ECER29 safety regulations.

SHACMAN body dump truck improves vehicle reliability, oil saving, high attendance; The reinforced structure can be used as construction machinery for the transportation of heavy goods under harsh conditions such as mining.

It has good anti-rollover performance in the unloading process and rough mountain road driving, and the application of ultra-wide vehicles greatly reduces the vehicle density in the mine pit and improves the driving safety.

King of loads, Lord of mines

2, strong bearing capacity:

SHACMAN wide-body dump truck adopts high-bearing wide-body mining special axle, specially designed vehicle suspension, high-strength frame assembly, wide-base large-diameter engineering tires, safe and reliable Depkaler hydraulic lifting system, over-profile body and wide-body box designed for various off-highway transportation heavy-load conditions to ensure sufficient loading capacity and super-strong carrying capacity. Much more than the same power highway dump truck, to achieve "DORA fast run".

3, strong power:

High performance engine, high speed ratio drive axle and high torque transmission ensure smooth start and climb of heavy load vehicle.

4, Cost-effective:

Comprehensive consideration of procurement cost, loading capacity, fuel consumption, the number of drivers, maintenance costs and other factors, the vehicle has a significant advantage;

5. Good passability:

Large design value approach Angle, departure Angle, high mining front axle and engineering special tire selection, low speed and high torque power configuration for the vehicle in harsh conditions to provide protection.

6, Easy maintenance:

Series models use engine, transmission, braking system, steering system, electrical system and construction machinery, road vehicles common, the main wearing parts of the high degree of common.

SHACMAN   Wide Body  Dump Truck

系列 Serial	STL360/70系列宽体自卸车 STL360/70 Series Wide Body Dump Trucks	STL390/90系列宽体自卸车 STL390/90 Series Wide Body Dump Trucks	STL-DK110 /110系列宽体自卸车 STL-DK110 /110 Series Wide Body Dump Trucks
车辆型号 Vehicle Model	STL360	STL390	STL-DK110A

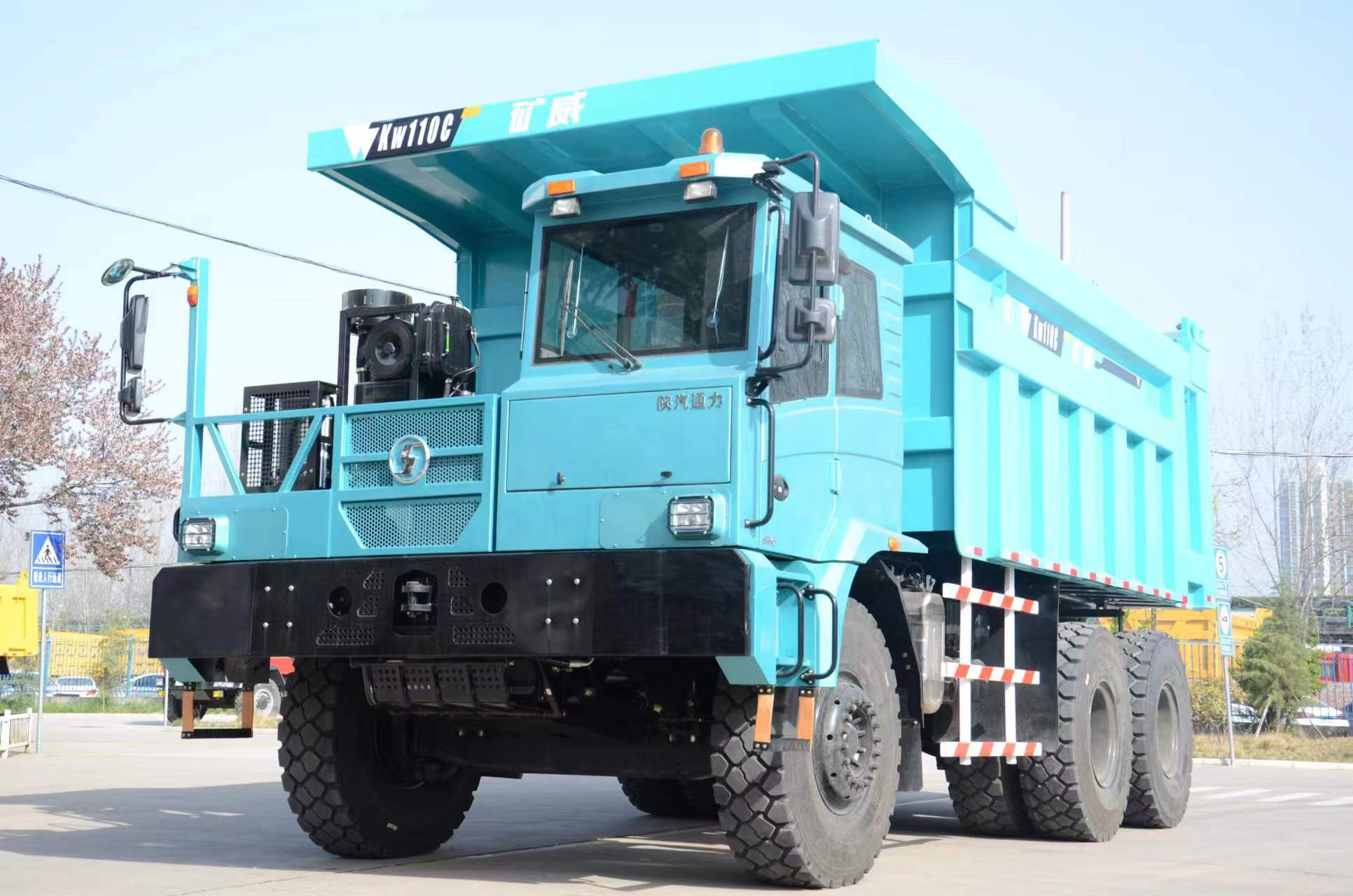

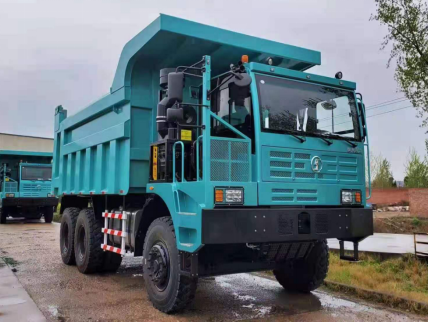

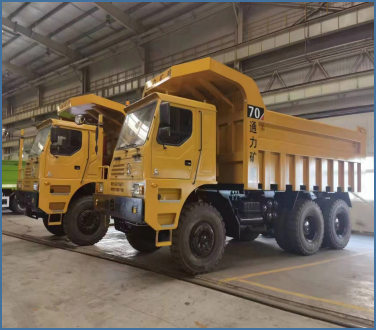

图片 Photos
驱动形式 Drive Type	6×4	6×4	6×4
整备质量 Curb Weight（KG）	22000	30000	35000
额定载质量 Rated Load Weight（KG）	40000	60000	70000
额定总质量 GVW（KG）	62000	90000	105000
整车参考外形尺寸 Overall dimension（mm）	8760(矿/Mine)×3255×3950	9150×3500×4250	9060*3675*4230
最高时速 Max. Speed（Km/h）	38	45	36
最小离地间隙 Min. ground clearance（mm）	380	330	370
最小转弯半径 Min. turning radius（mm）	≤11	≤13	≤13
最大爬坡能力 Max Climb Capability（%）	≥40	≥32	≥32
轴距 Wheelbase（mm）	3750+1560	3850+1560	3850+1750
驾驶室 Cab	偏置单边矿用驾驶室 Offset single side mine cab	偏置单边矿用驾驶室 Offset single side mine cab	偏置单边矿用驾驶室 Offset single side mine cab
发动机型号 Engine Model	康明斯QSM11(385 30) Cummins QSM11(385 30)	玉柴YC6K480-GT30 Yuchai YC6K480-GT30	康明斯Z14-C540-30 Cummins Z14-C540-30
发动机排量 Displacement（L）	10.8	12.155	14
额定功率/转速 Rated power/ rotation rate（KW/rpm）	306/1900	353/1900	397/2100
最大扭矩/转速 Max. Torque/rotation rate （N.m /rpm）	1898/1400	2200/（1100－1500）	2400/（1100－1500）
排放标准 Emission	工程机械三阶段 Non-road three stages	工程机械三阶段 Non-road three stages	工程机械三阶段 Non-road three stages
变速箱 Tranmission	法士特10JSD220 FAST 10JSD220	法士特8DS240A FAST 8DS240A	法士特8DS260 FAST 8DS260
前轴轴荷 Front Axle Load	汉德13T HANDE 13T	汉德20T无落差矿用桥 HANDE 20T non drop mining Axle	汉德25T HANDE 25T
后桥轴荷 Rear Axle Load	汉德25T×2   HANDE 25T×2                              （速比12.87）Ratio:12.87	汉德35T×2   HANDE 35T×2         （速比12.87）Ratio:12.87	汉德40T×2  HANDE 40T×2                                      （速比18.722）Ratio:18.722
车架 Truck Frame	直槽铆接式，双层大梁（10+8）,材质600L Straight groove riveted type, double layer beam (10+8), Material 600L	直槽铆接式，双层大梁（10+10）材质600L Straight groove riveted type, double layer beam (10+10), Material 600L	直槽铆接式，双层大梁，（12+10），600L材质 Straight groove riveted type, double layer beam (10+12), Material 600L
转向系统 Steering system	循环球转向机+液压助力缸 Circulating ball steering gear+hydraulic power cylinder	全液压转向 Full hydraulic steering	全液压转向 Full hydraulic steering
制动系统 Brake system	双回路制动，JACOB制动，驻车制动 Dual circuit braking, JACOB braking, parking brake	双回路制动，排气制动，驻车制动 Dual circuit braking, exhaust braking, parking braking	I-brake制动、驻车制动、双回路制动 I-brake, parking brake, dual circuit brake
电器系统 Electrical system	180Ah,单线制24V，负极搭铁 180Ah, single wire 24V, negative ground	180AH单线制24V，负极搭铁 180Ah, single wire 24V, negative ground	180Ah,单线制24V，负极撘铁 180Ah, single wire 24V, negative ground
空滤器 Air filter	油浴式空气滤清器 Oil-bath air filter	油浴式空气滤清器 Oil-bath air filter	油浴式空气滤清器 Oil-bath air filter
油箱材质及容积 Fuel tank material & Capacity（L）	400L铝合金 400L aluminum alloy	600L铝合金 600L aluminum alloy	600L铝合金 600L aluminum alloy
轮胎数量及规格 Tire quantity & Specification	14.00R24	14.00R25（斜胶胎/Oblique rubber tire）	16.00R25
上装 Compartment	矿用斗带后门，5600×3000×1600       （平装26.88方）底14边10，前板固定厚度10，大板NM400，其余T700 Mining bucket with back door, 5600×3000×1600 (flat 26.88 square) bottom 14 sides 10, fixed thickness of front plate 10, large plate NM400, remaining T700	矿用斗带后门，5800×3200×1800  （平装33.4方）底16边12，底板后门NM400，前板侧板T700 Mining bucket with back door, 5800×3200×1800 (flat 33.4 square) bottom 16 sides 12, bottom back door NM400, front side panel T700	矿用斗带后门，6000×3400×2000 （平装40.8方）底16边12，底板后门NM400，前板侧板T700 Mining bucket with back door, 6000×3400×2000 (flat 40.8 square) bottom 16 sides 12, bottom back door NM400, front side panel T700
举升形式 Lift Type	德普196多节前举 DeepKaler 196 Multi Section Front Lifting	德普196多节前举 DeepKaler 196 Multi Section Front Lifting	德普196多节前举 DeepKaler 196 Multi Section Front Lifting
