SHACMAN F3000 8X4 Dump Truck

Brand: Shacman
Power: Diesel
Drive Wheel:  8x4
Steering: Left steering
Engine: 430ps
Emission: Euro V

Availability:
Quantity:
Inquire Add to Basket

  • Shacman

Product Description

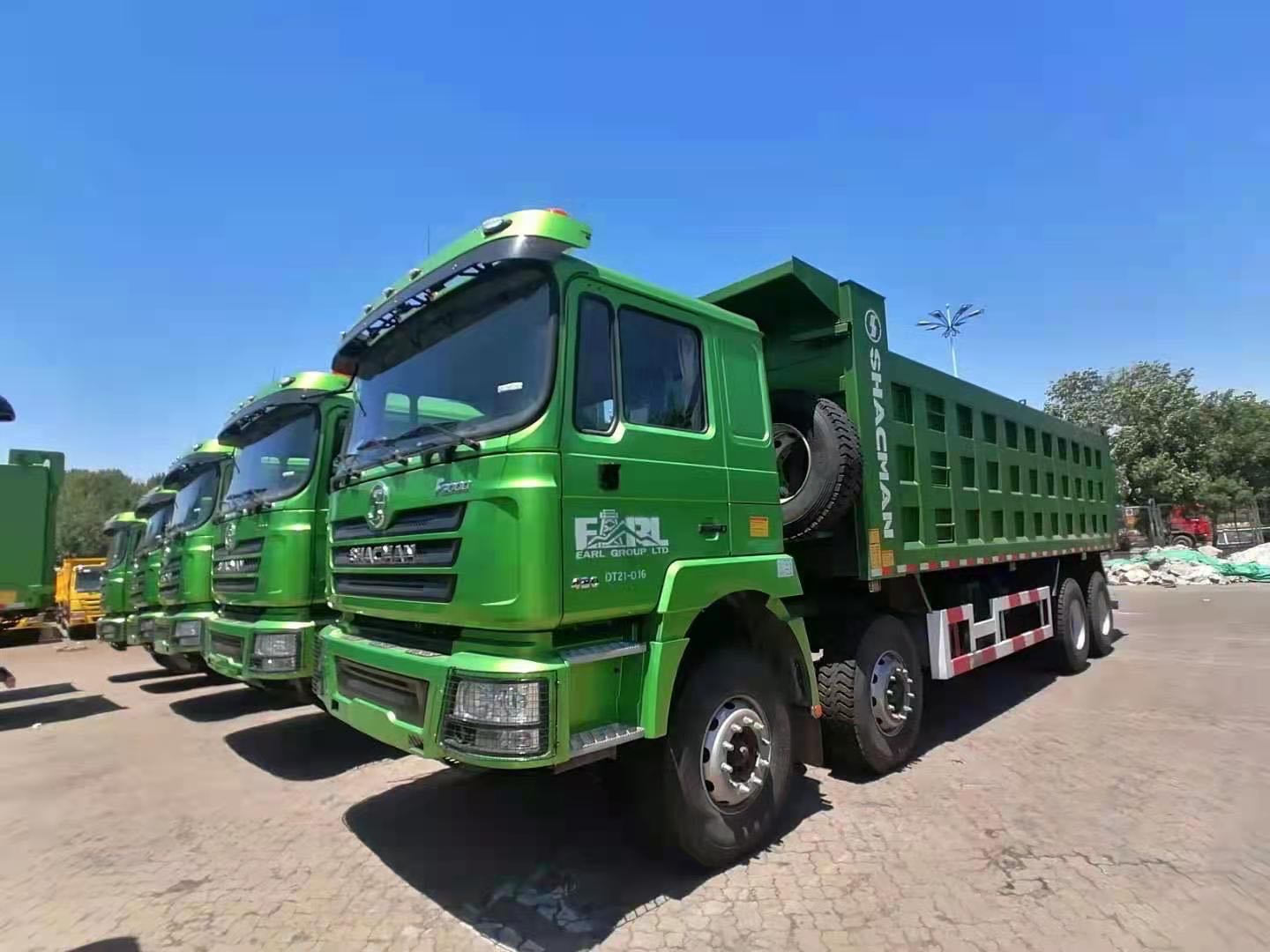

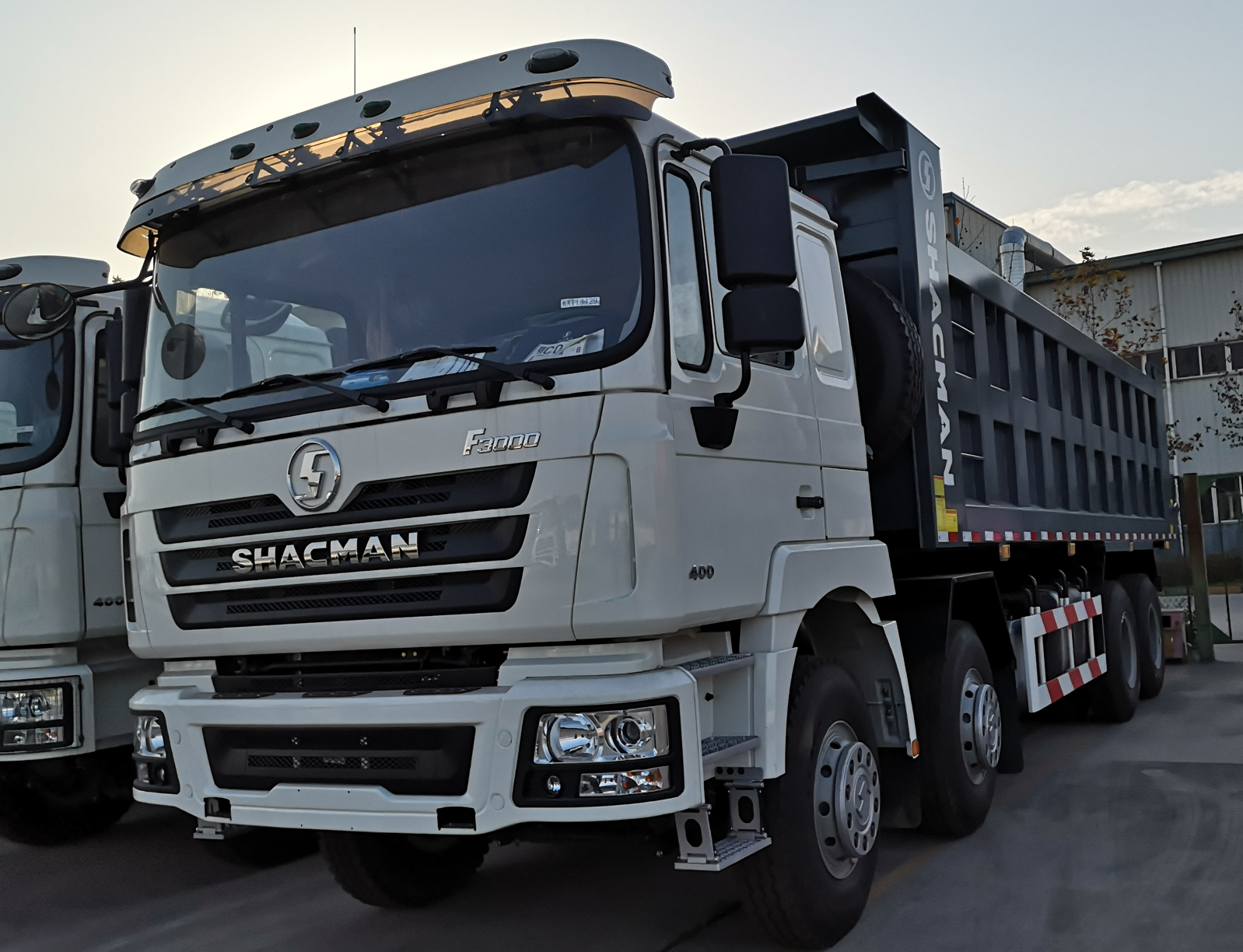

SHACMAN F3000  8X4 Dump Truck


shacman dump truck

tipper truck

Main Specifications:

MODEL

SX3318DV406

Steering type

Left

Driving type

8x4

Wheelbase(mm)

1800+3975+1400mm
Overall dimension(mm) (include dome height)
 7100*2550*4000

Front and rear turning radius of semi trailer

2100/2200 mm

Approach angle/ departure angle

20°/44°

Engine

WP12.430E50   430PS
Transmission

12JSD200T-B

12 forward gear, 2 reverse gear
Front Axle MAN 9.5T

Rear axle

16T MAN

speed ratio =5.262

Cab

F3000 flat top cab/one sleeper/hydraulic suspension of the cab/hydraulic main seat/air conditioning/third level boarding steps/metal bumper

Frame(mm)

 850×300（8+7）

Suspension

 Front and rear few spring leaf

Fuel tank

 300L aluminum alloy fuel tank
Air filter common air filter

Wheels and tires

12.00R20   1 spare tire)
Dump container configurations

Dump truck large box/rectangular bucket/field grid/7600 * 2300 * 1500/bottom 8 sides 6/domestic 180 front lift/large box material Q355


Other Truck Types

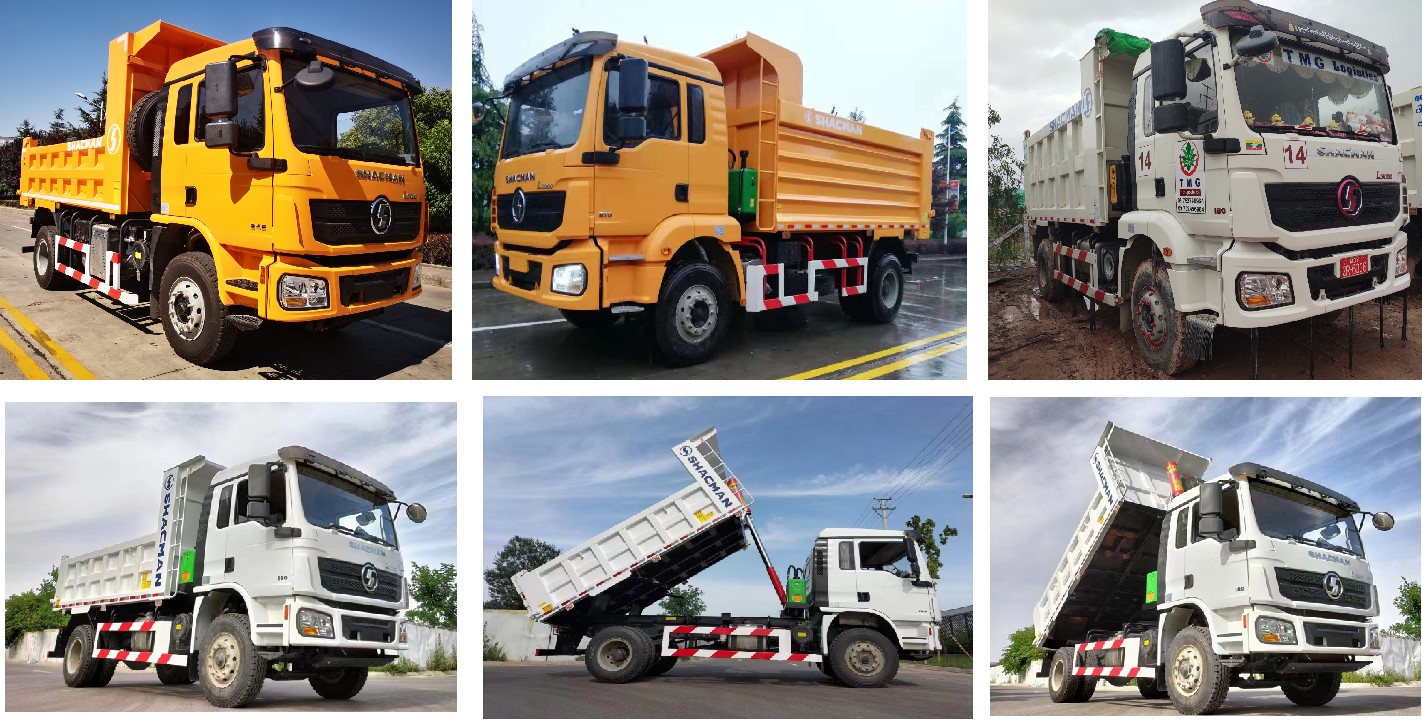

L3000 dump truck

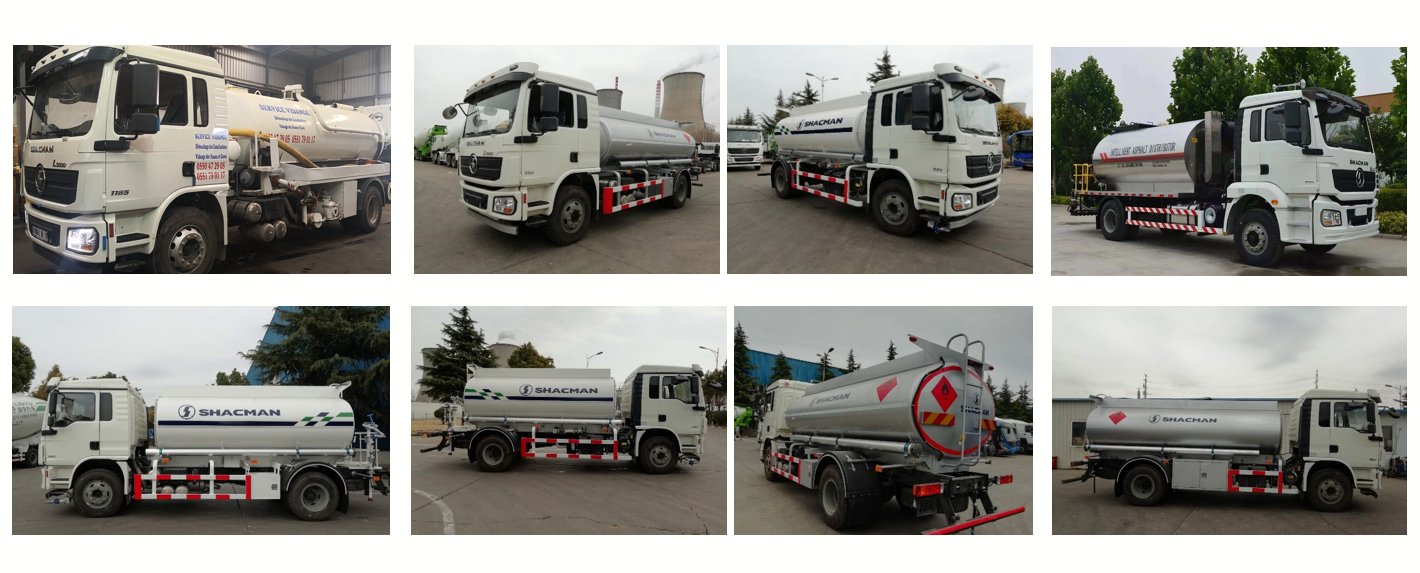

L3000 tank truckTank Truck

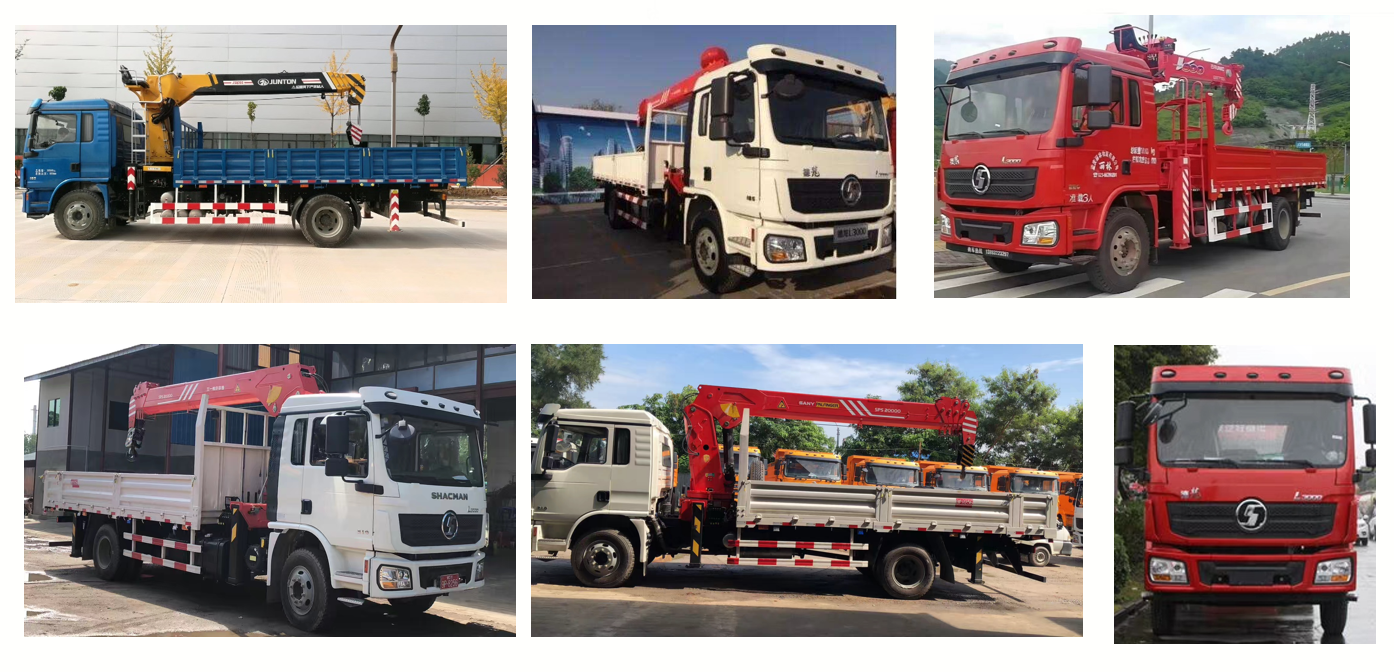

L3000 craneTruck with Crane

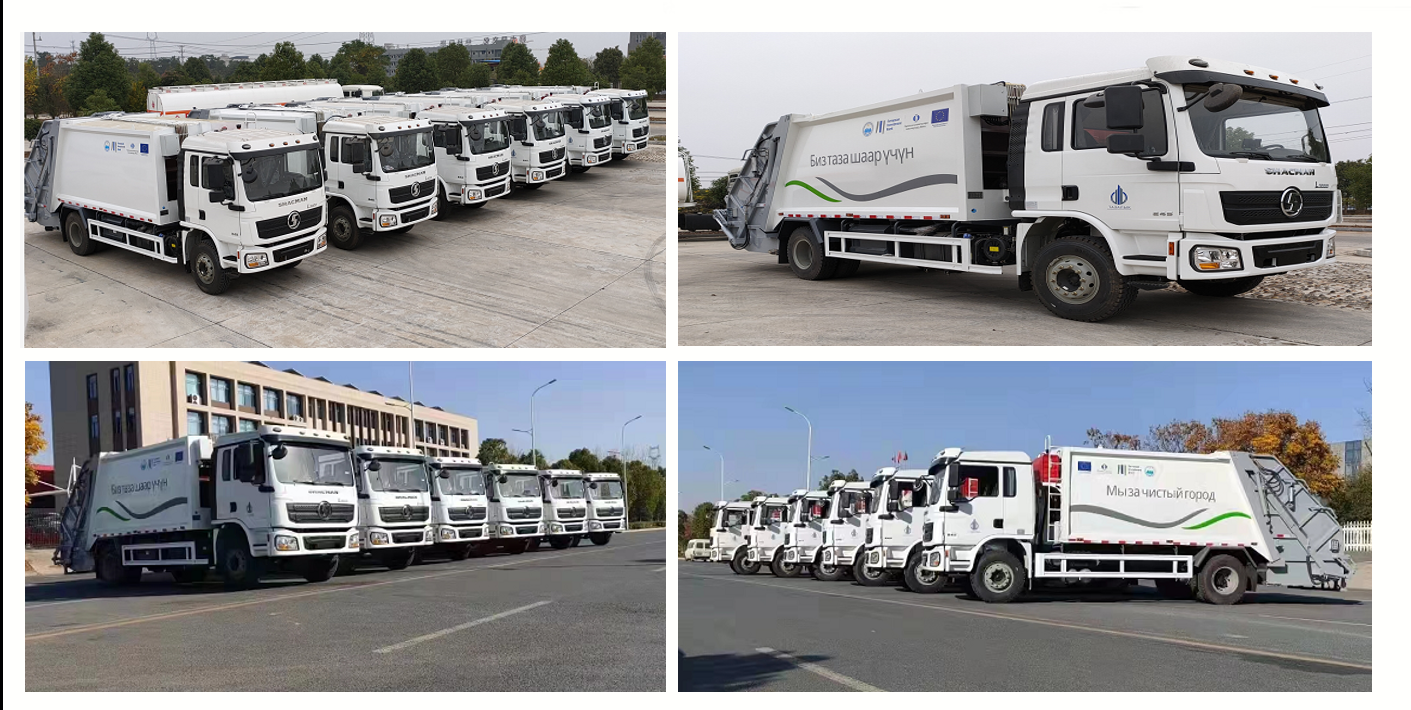

L3000 refuse truck

   Compressed garbage truck
