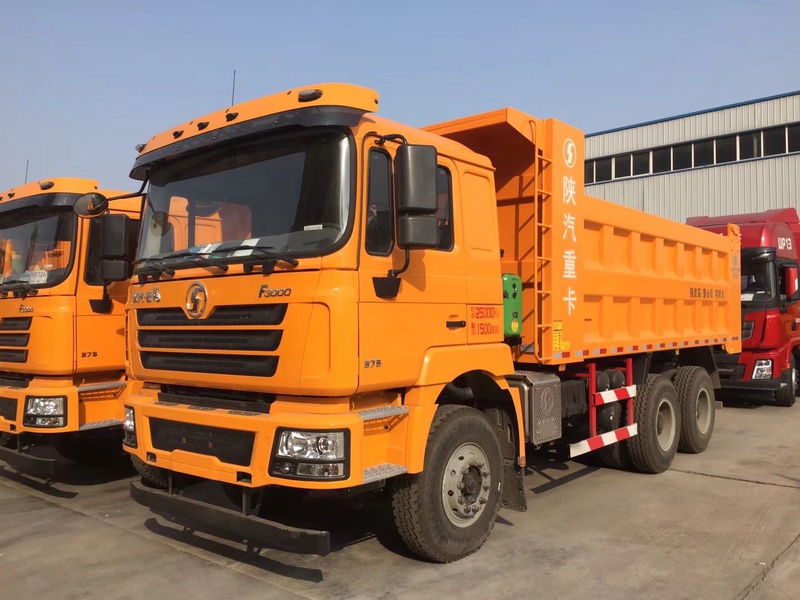

SHACMAN F3000 8X4 Dump Truck SX3255DR384R Right Steering Tpye

Steering Place

 Right Hand

Driving type

6×4

Gross Weight（kg）

≤50

Wheelbase(mm)

3775+1400

Max. Speed/(km/h)

45～50/75 km/h

Engine

Brand

WEICHAI

Model

WP10.340E22

Emission standard

EUROⅡ

Rated output power

340HP

Transmission

Brand

FAST

Model

10JSD180+QH50

Front axle

MAN 9.5T

Rear axle

16T MAN double, ratio 5.92

16T MAN Double 5.92

Rear suspension

850

Frame

850×300（8+7）

Suspension

Front and rear multi leaf springs, four main pieces+four U leaf springs

Fuel tank

380L iron oil tank /380L

Wheels and tires

315/80R22.5

Cabin

F3000 mid-length flat roof cab/hydraulic Driver’s Seat/Four-Point hydraulic Suspension Cab/Metal Bumper

Container information

Dump truck large box/cross hatch/rectangular bucket/

5600x2300x1500/bottom 8 sides 6/domestic 180 front lift cylinder

Basic configuration

F3000 medium length flat top cab, hydraulic main seat, four point hydraulic suspension, ordinary rear-view mirror, ordinary heating, manual window lifter, manual turnover, metal bumper, three-level boarding pedal, oil bath air filter, flexible shaft control, oil pan protective grille, iron air reservoir, installation of a long-term coarse filter, fuel system anti-theft, nut protective cap, right steering gear, 165Ah maintenance-free battery, reversing buzzer, headlight protective grille Tail light protective grille, tail beam lighting (with protective grille), SHACMAN logo, full English logo, rear fender, chrome plated horsepower logo on both sides of the door, sunshade decorative lamp

Optional configuration

Electrically controlled automatic thermostatic air conditioner, electric turnover, 300L aluminum alloy oil tank, 12.00R20
