QL4250W2NCZ
ISUZU
Product Description

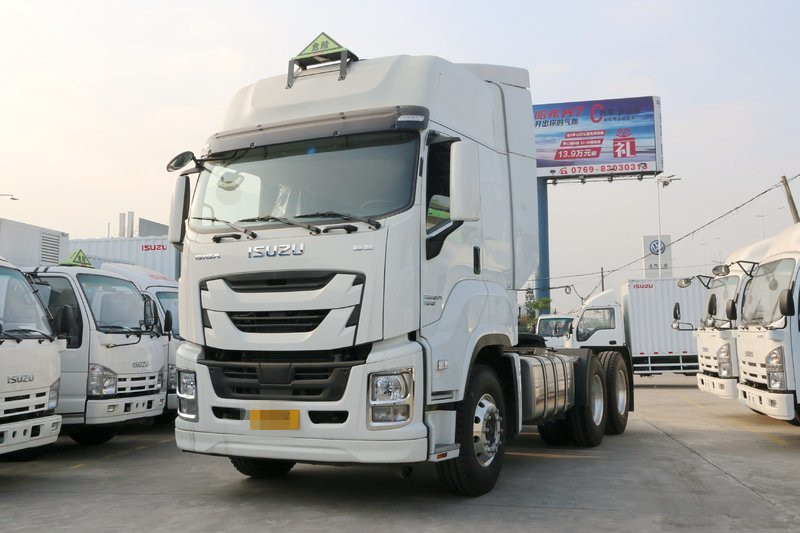

New ISUZU VC61 6x4 High Roof Tractor Truck (Euro V)

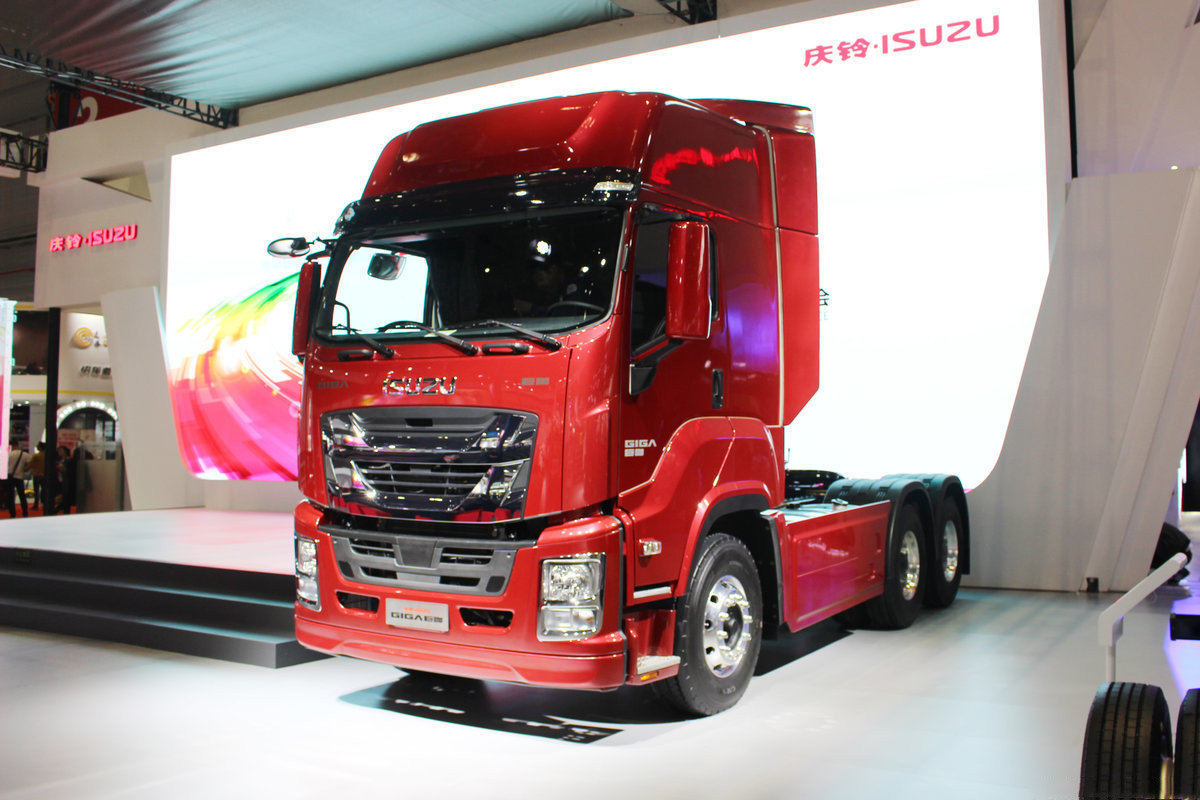

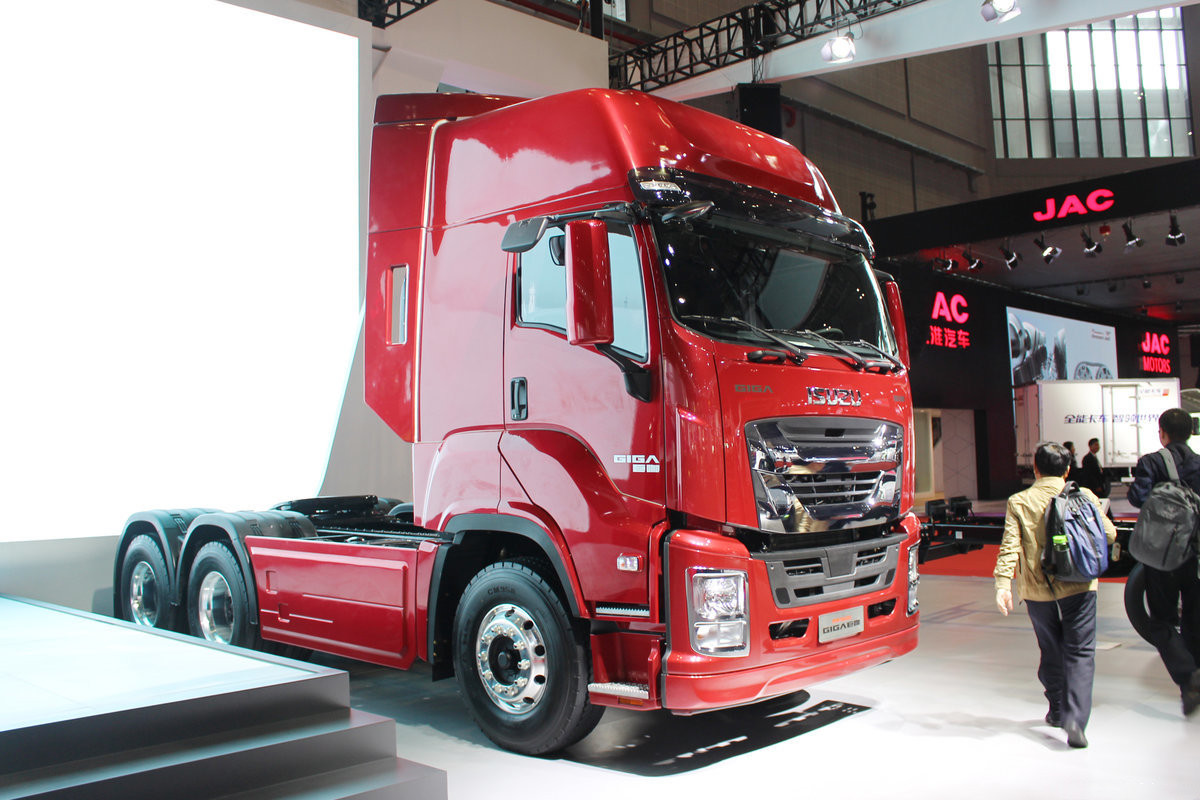

Qingling ISUZU GIGA New Generation Heavy Truck
Features: High end, intelligent, home-based and customized
It has high horsepower, automatic gear, disc brake, etc. to bring more value and meet more requirements of users.
Tractor Truck：VC61 Parameter Comparison 25T
Truck name | Tractor | Tractor | Tractor |
Truck No. | QL4250W2NCZ | QL4250W1NDZ | QL4250W2NDM |
Engine Model No. | 6WG1-TCG51 | 6WG1-TCG52 | 6WG1-TCG51 |
Fuel type | 0 # or - 10 # national V diesel (s content ≤ 10ppm) | ||
Displacement | 15681ML | 15681ML | 15681ML |
Engine power | 338 KW | 308KW | 337KW |
Torque | 2060N.M | 2060N.M | 2060N.M |
Drive Speed Ratio | |||
Transmission Model | 16S2230TO | 16S2230TO | 16S2230TO |
Gross Mass(kg) | 25000 | 24900 | 25000 |
Curb Mass(kg) | 8870/9280 | 9100/8750 | 8670 |
Load Mass(kg) | |||
Towering mass (kg) | 39920/40000 | 39670/40000 | 37200 |
Wheel base(mm) | 3385+1370 | 3385+1370 | 3385+1370 |
Cab type | Single row | Single row | Single row |
Passenger | 2 | 2 | 2 |
Overall dimension Length (mm) | 6895 | 6895 | 6895 |
Overall dimension Width (mm) | 2540 | 2540 | 2540 |
Overall dimension Height (mm) | 3970 | 3970(with dome) | 3970(with dome) |
Front wheel track(mm) | 2065 | 2065 | 2065 |
Rear wheel track(mm) | 1855/1855 | 1875 | 1875/1875 |
Leaf spring | 4/4 | 4/4 | 4/-/- |
Front suspension (mm) | 1370 | 1370 | 1370 |
Rear suspension (mm) | 770 | 770 | 770 |
Axle load(kg) | 6900/18000 | 6900/18000 | 6500/111500/7000 |
Max. speed | 98 | 80 | 110/89 |
