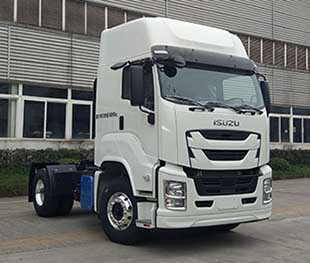

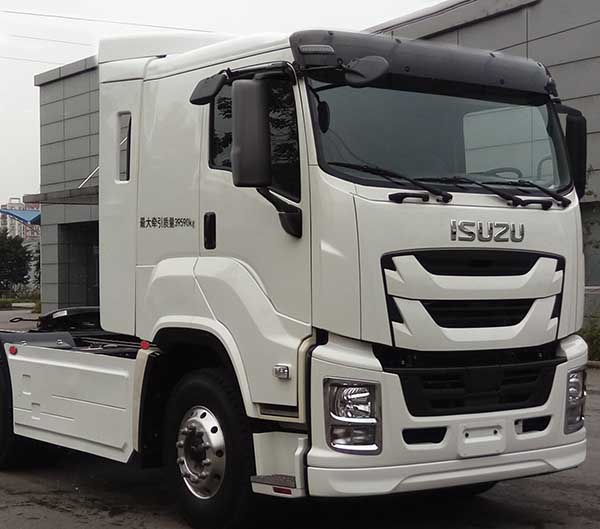

Qingling Isuzu Giga Tractor Truck VC61 6X4 QL4180U2JDR

Transmission Type: Manual
Power: Diesel
Load Capacity: ＞50t
Emission Standard: Euro 5
Availability:
Quantity:
Inquire Add to Basket

  • QL4180U2JDR

Product Description

New ISUZU VC61 6x4 High Roof Tractor Truck (Euro V)


Qingling ISUZU GIGA New Generation Heavy Truck

Features: High end, intelligent, home-based and customized

It has high horsepower, automatic gear, disc brake, etc. to bring more value and meet more requirements of users.

Specifications

Heavy Duty Truck：VC 61  Parameter Comparison   18T



Truck name

Tractor

Truck No.

QL4180U2JDR

Engine Model No.

6UZ1TCG50

Displacement

9839

Engine power

279
Torque

1765

Drive Speed Ratio

Transmission Model

16S2030TO

Gross Mass(kg)

18000

Curb Mass(kg)

6980/6870

Load Mass(kg)

Towering mass (kg)

34890/35000

Wheel base(mm)

3450

Cab type

Single row

Passenger

2

Overall dimension Length (mm)

5790

Overall dimension Width (mm)

2542

Overall dimension Height (mm)

3720/3970

Front wheel track(mm)

2065

Rear wheel track(mm)

1875

Leaf spring

4/4+3,7/10

Front suspension (mm)

1370

Rear suspension (mm)

970

Axle load(kg)

7000/11000

Max. speed

110
