QL4251U2NDZ
Product Description

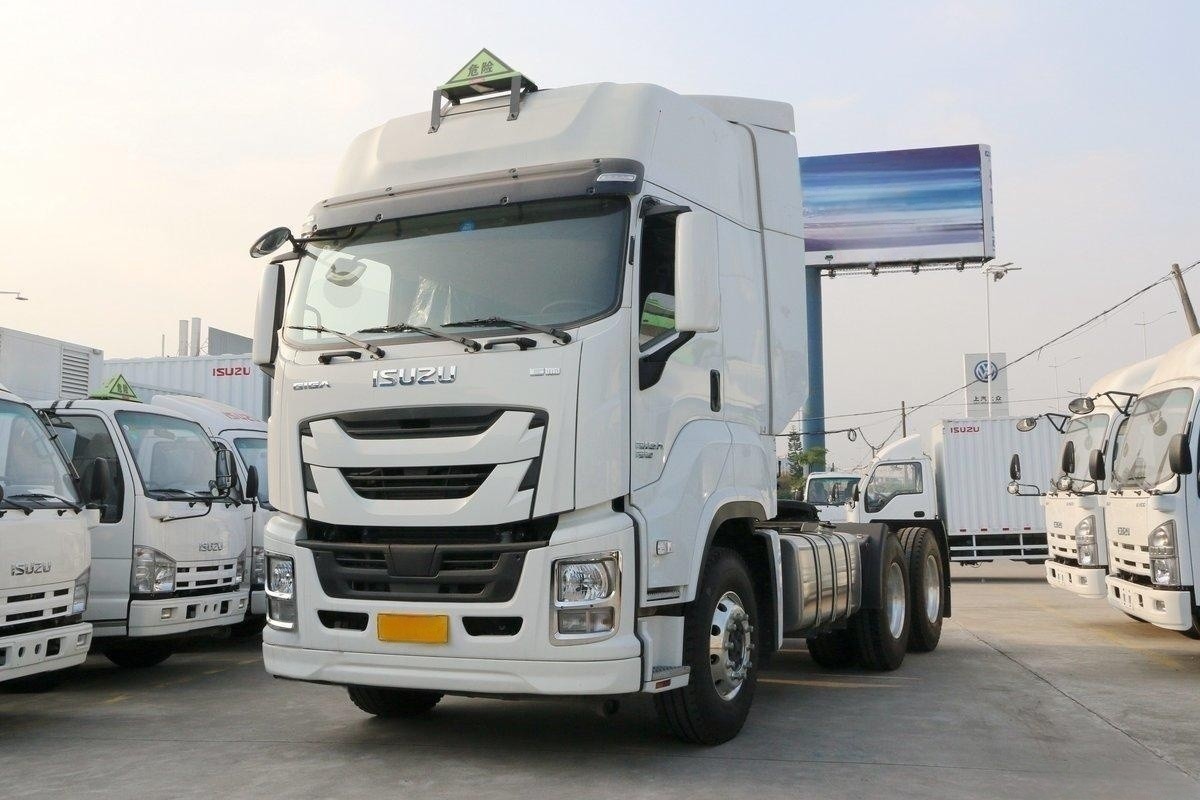

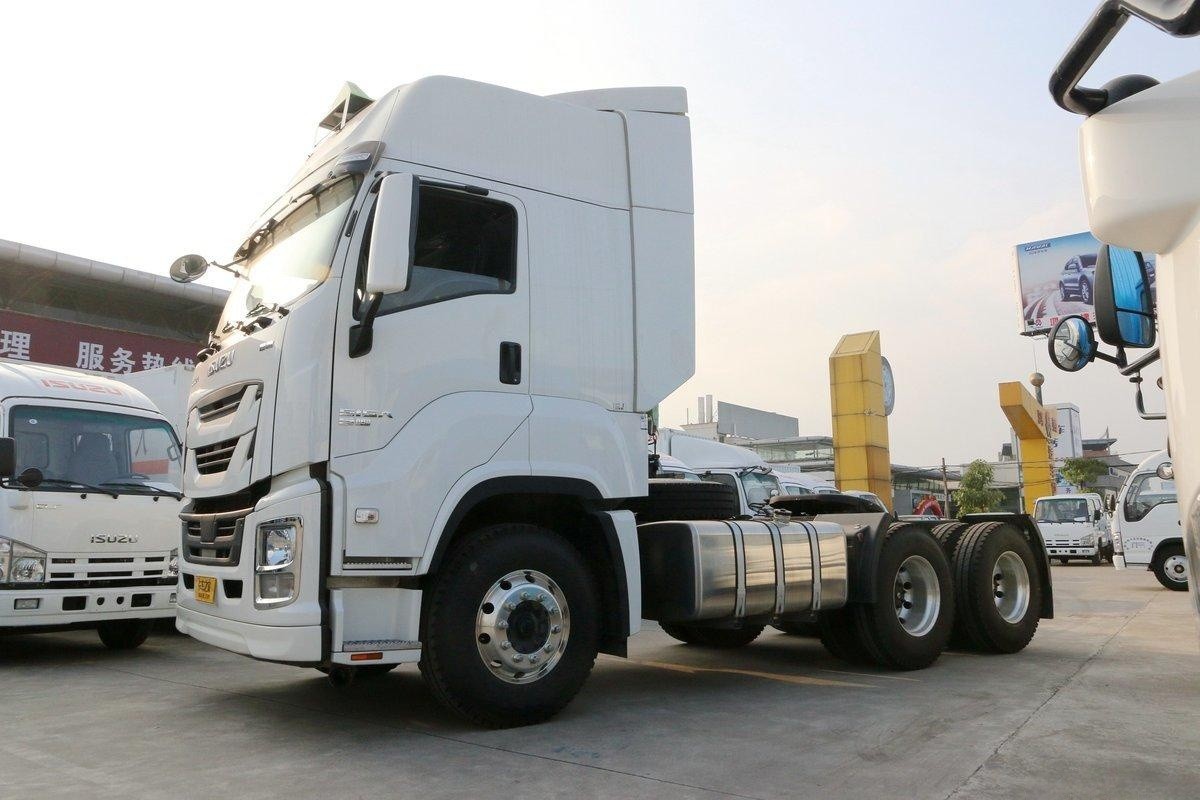

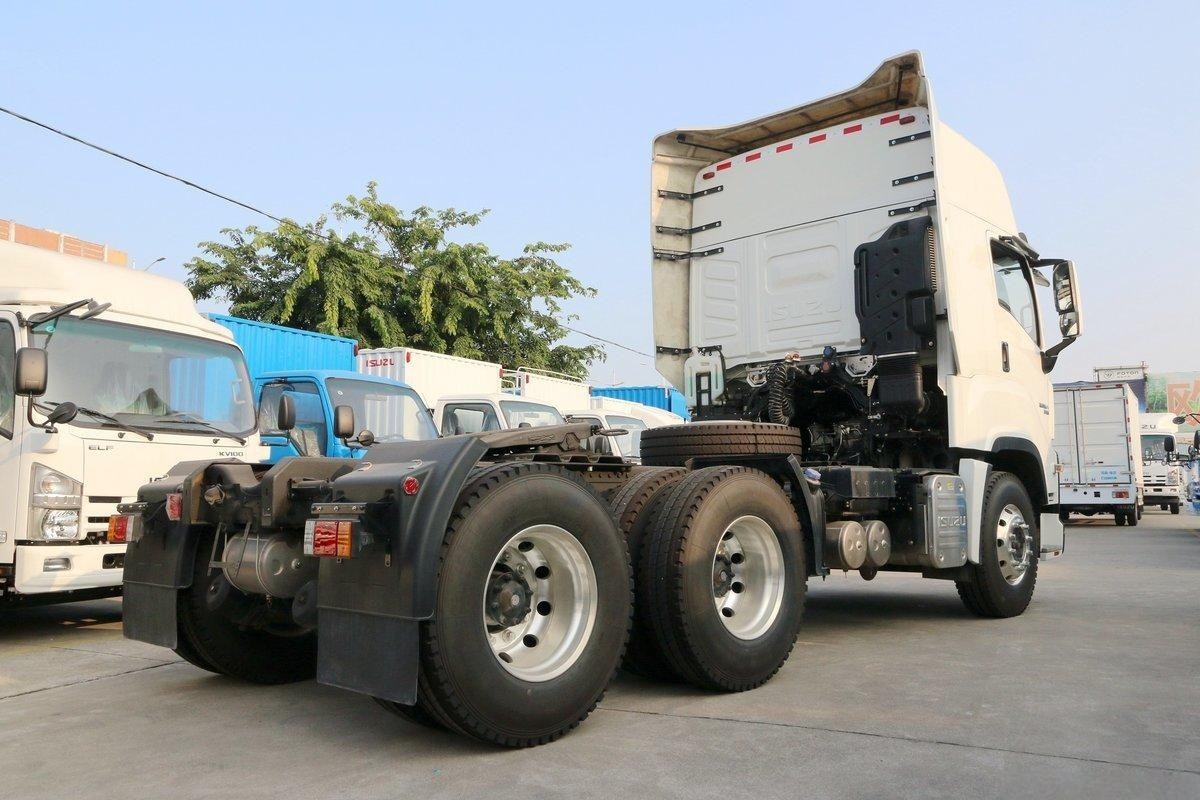

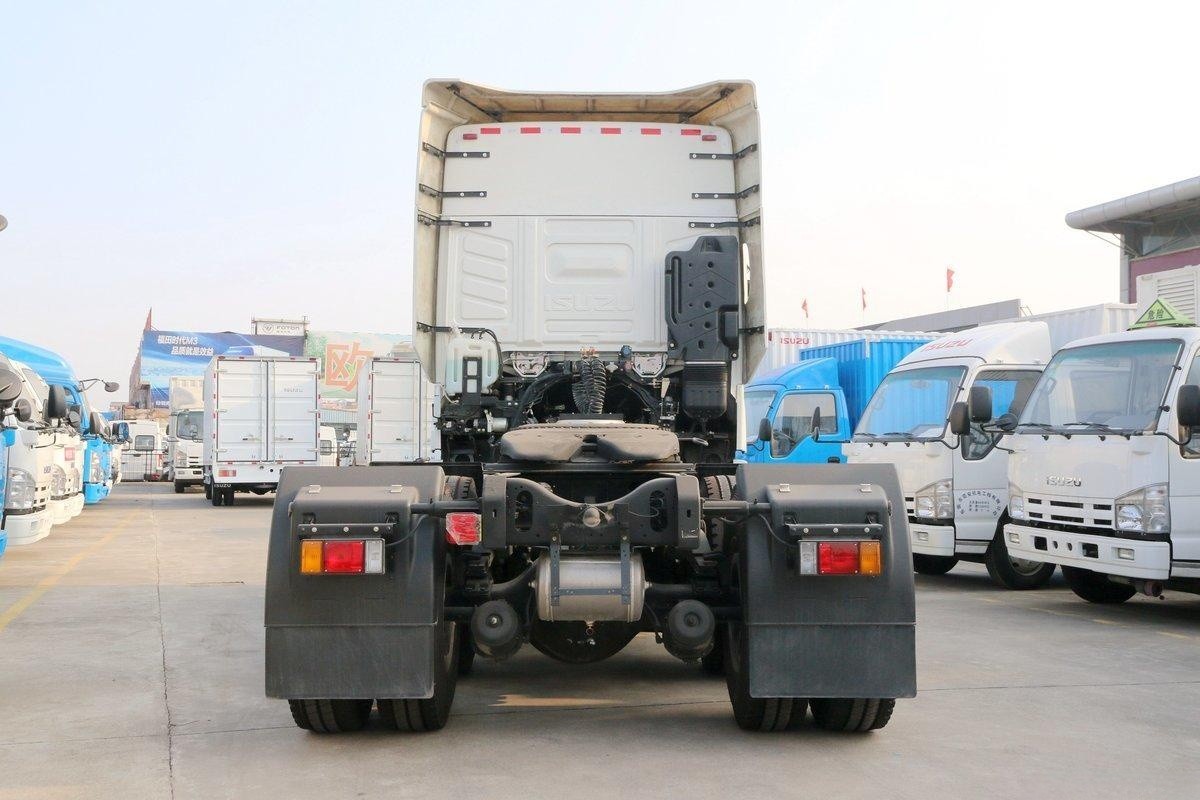

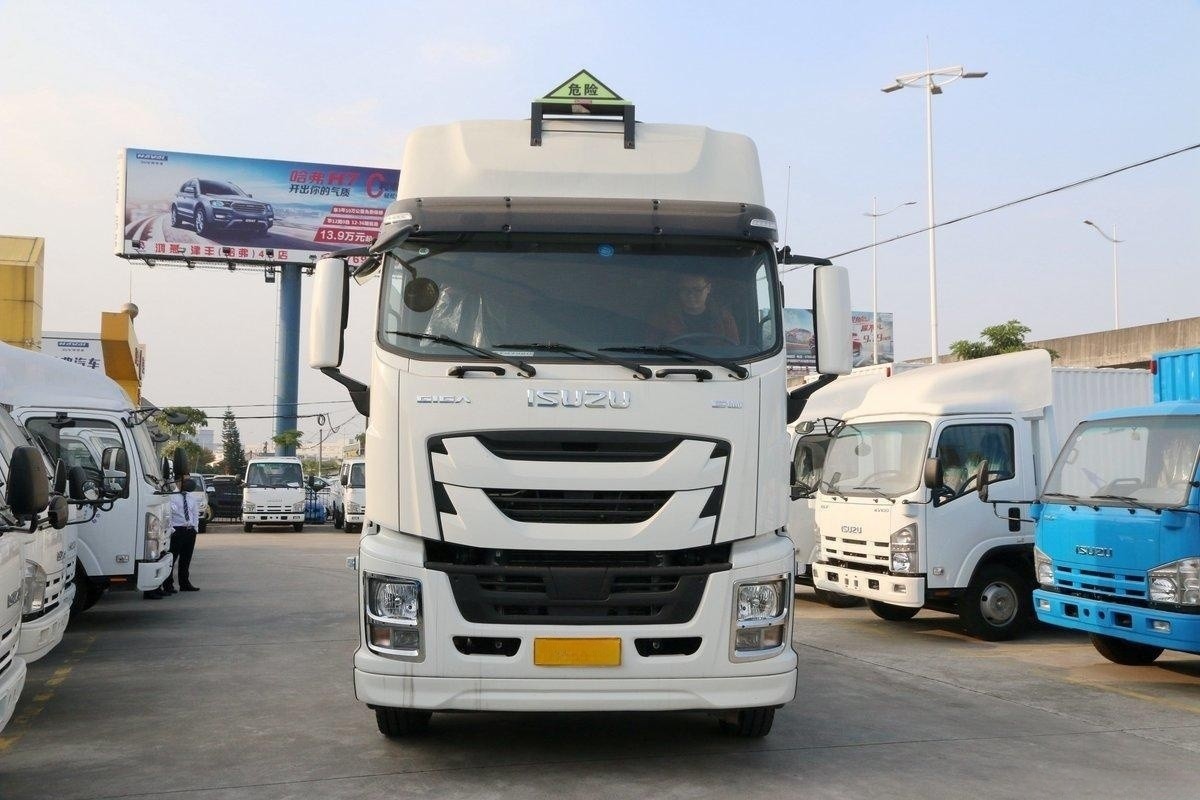

New ISUZU GIGA 6x4 High Roof Tractor Truck (Euro V)
Qingling ISUZU GIGA New Generation Heavy Truck
Features: High end, intelligent, home-based and customized
It has high horsepower, automatic gear, disc brake, etc. to bring more value and meet more requirements of users.
Heavy Duty Truck：GIGA Parameter Comparison 25T
Truck name | Tractor |
Truck No. | QL4251U2NDZ |
Engine Model No. | 6UZ1-TCG50 |
Fuel type | 0 # or - 10 # national V diesel (s content ≤ 10ppm) |
Displacement | 9839 |
Engine power | 380 |
Torque | 1800 |
Drive Speed Ratio | |
Transmission Model | ZF16S2030TO |
Gross Mass(kg) | 25000 |
Curb Mass(kg) | 8850 |
Load Mass(kg) | |
Towering mass (kg) | 40000 |
Wheel base(mm) | 3385+1370 |
Cab type | Double row with a berth |
Passenger | 2 |
Overall dimension Length (mm) | 6895 |
Overall dimension Width (mm) | 2540 |
Overall dimension Height (mm) | 3970 |
Front wheel track(mm) | 2065 |
Rear wheel track(mm) | 1875/1875 |
Leaf spring | 4/4 |
Front suspension (mm) | 1370 |
Rear suspension (mm) | 770 |
Axle load(kg) | 7000/18000 |
Max. speed | 80 |
