Qingling-Isuzu EVK100 7.3T 4.97 Meters Electric Truck QL5070XXYBEVECDA 96.77kWh

Condition: New
Steering: Left
Horsepower: 95hp
Fuel Type: Diesel
Drive: 4x2
Emission Standard: Euro 5
Brand: Isuzu
Overall size: 6740*1880*2350mm
Container size: 4010*1790*380mm


Availability:
Quantity:

Product Description

Qingling-Isuzu EVK100  7.3T  4.97 Meters Electric Truck QL5070XXYBEVECDA     96.77kWh

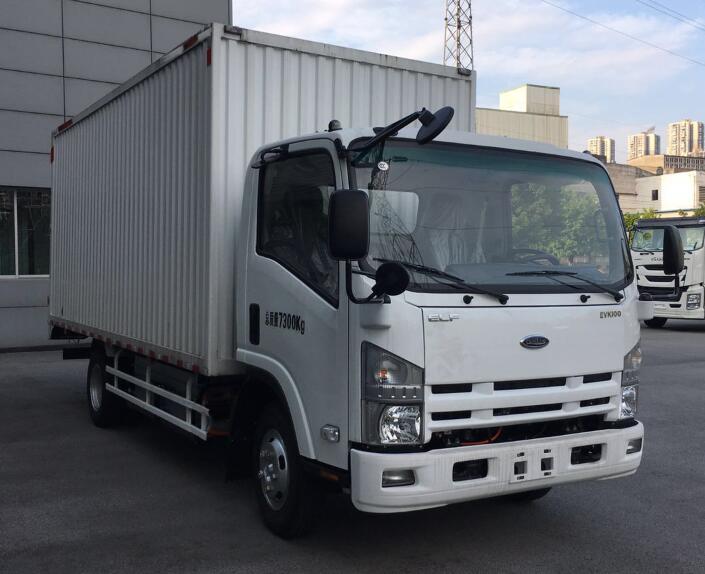

QL5070XXYBEVECDA



Advantage:


Intellectualization

The advanced and efficient CAN network system is adopted, and the overall electrical architecture is newly designed to provide intelligent vehicle machine interconnection, information management and remote diagnosis in real time.



Utilization

The internal and external modeling and DTS are designed according to the standard of passenger cars.

SUV appearance, interior soft technology and materials.



Reliability

Strong chassis with high load and high torsion resistance

Optimize and lift chassis systems such as frame, front and rear axles, suspension and transmission; Greatly improve the robustness, reliability and bearing capacity of the chassis.


High strength body

3H body structure, high-strength steel proportion of more than 70%, rigid passenger compartment body, effectively protect your safety.



Security

The taga pickup has reserved 6 airbags and ESC layout design. In addition to the front seat belt reminder and other sub items, the full height configuration meets the C-NCAP five-star standard.

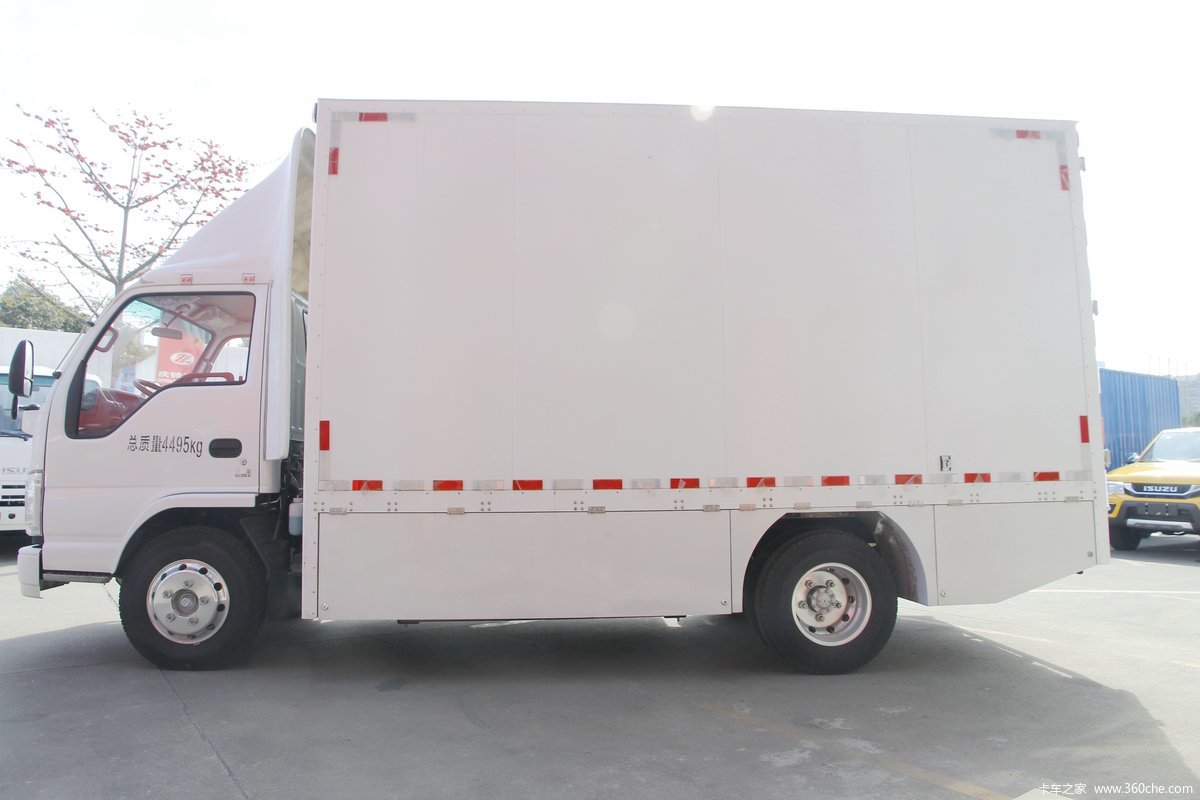

QL5070XXYBEVECDA2



Truck name

Pure electric cargo truck


Truck No.

QL5041XXYBEVECCA2

Gross Mass(kg)

4495

Curb Mass(kg)

2950

Load Mass(kg)

1415

Towering mass (kg)


Wheel base(mm)

3360

Cab type

Single row

Overall dimension (mm)

5995*2100*3090mm

Container volume


Container internal dimension  (mm)

1800

Front wheel track(mm)

1570

Rear wheel track(mm)

1570

Leaf spring

-/5

Front suspension (mm)

945

Rear suspension (mm)

1309

Axle load(kg)

1273/2232

Max. speed

110
