QL1073BUKAY
ISUZU
Product Description

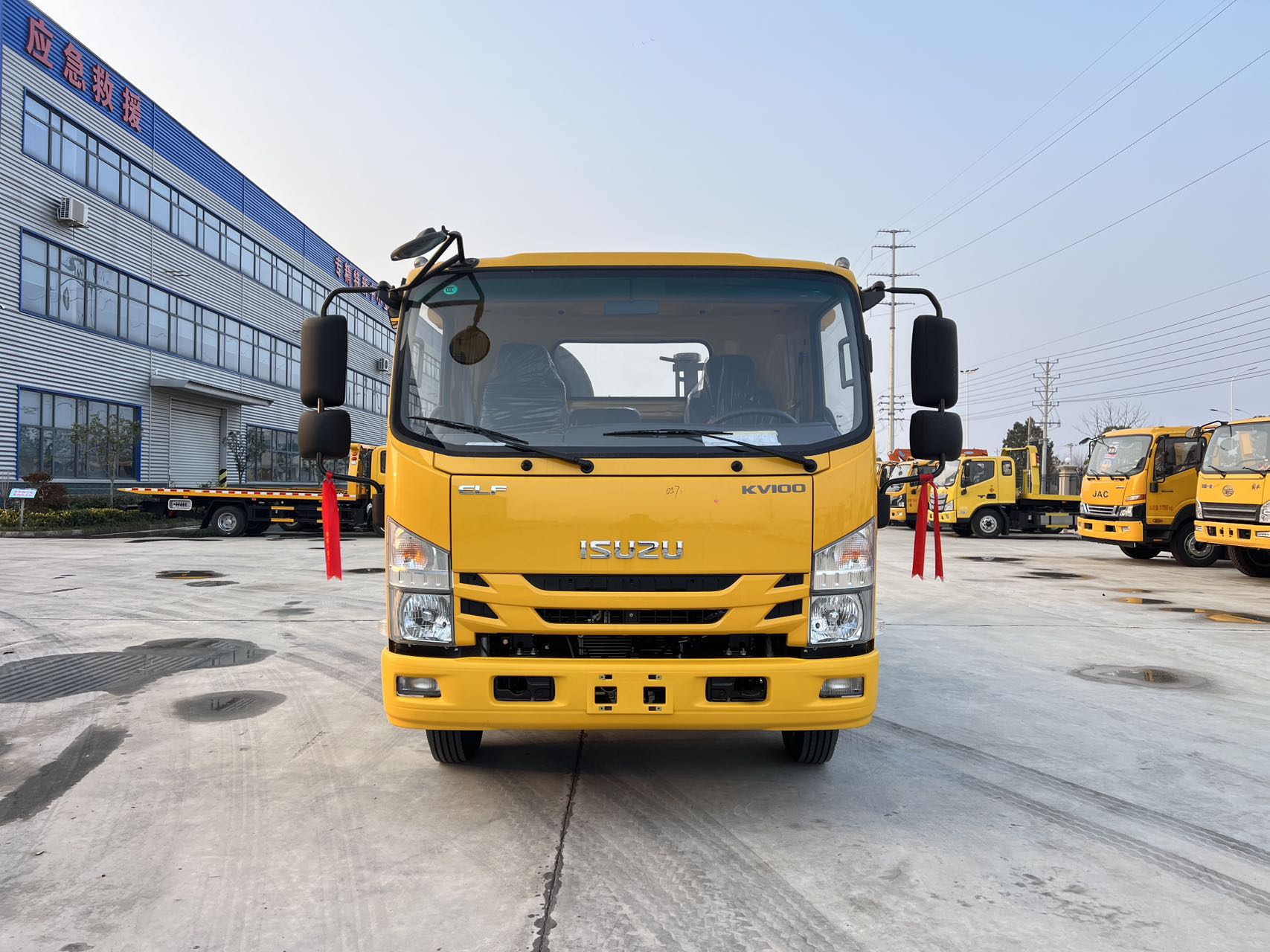

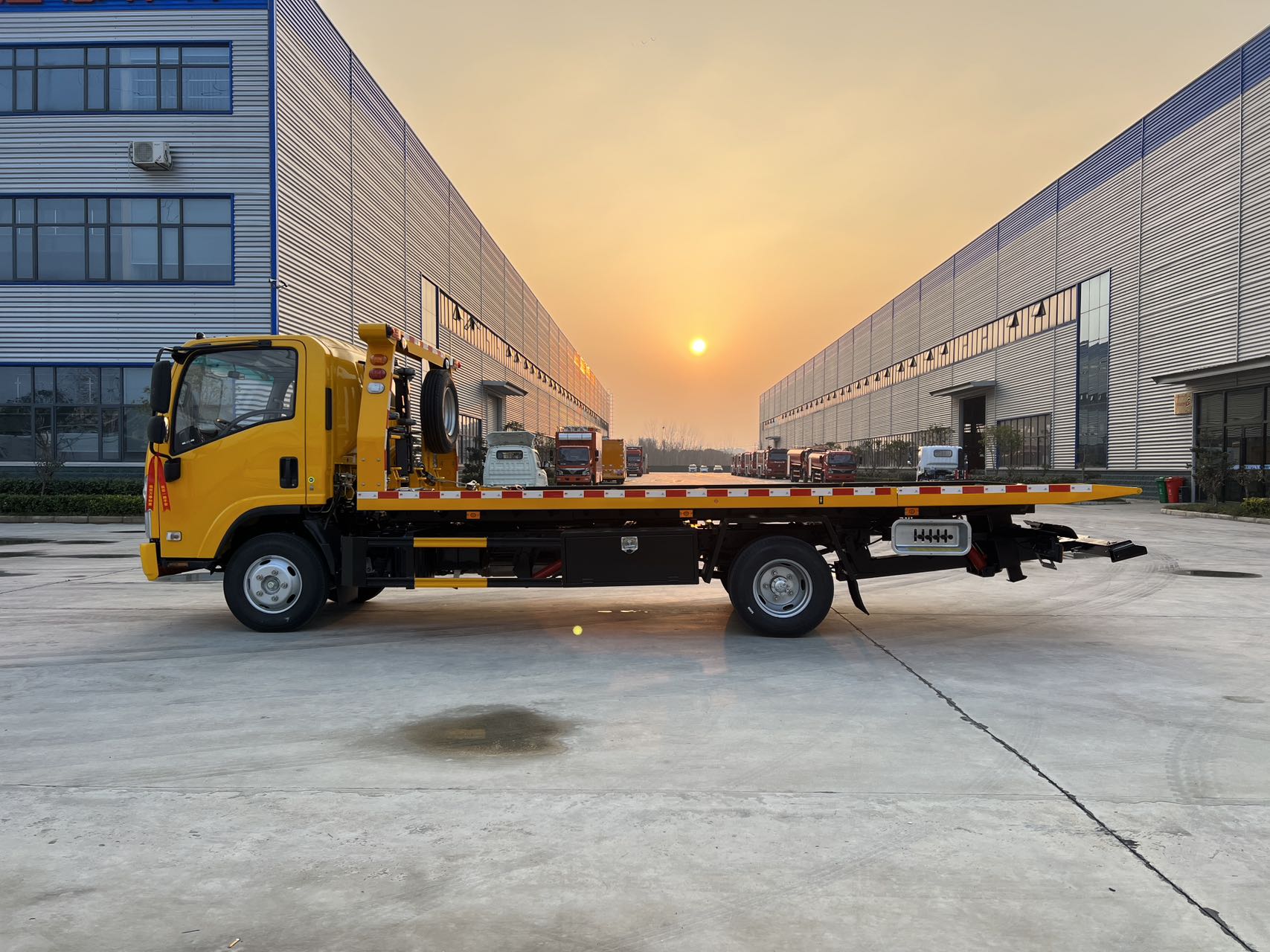

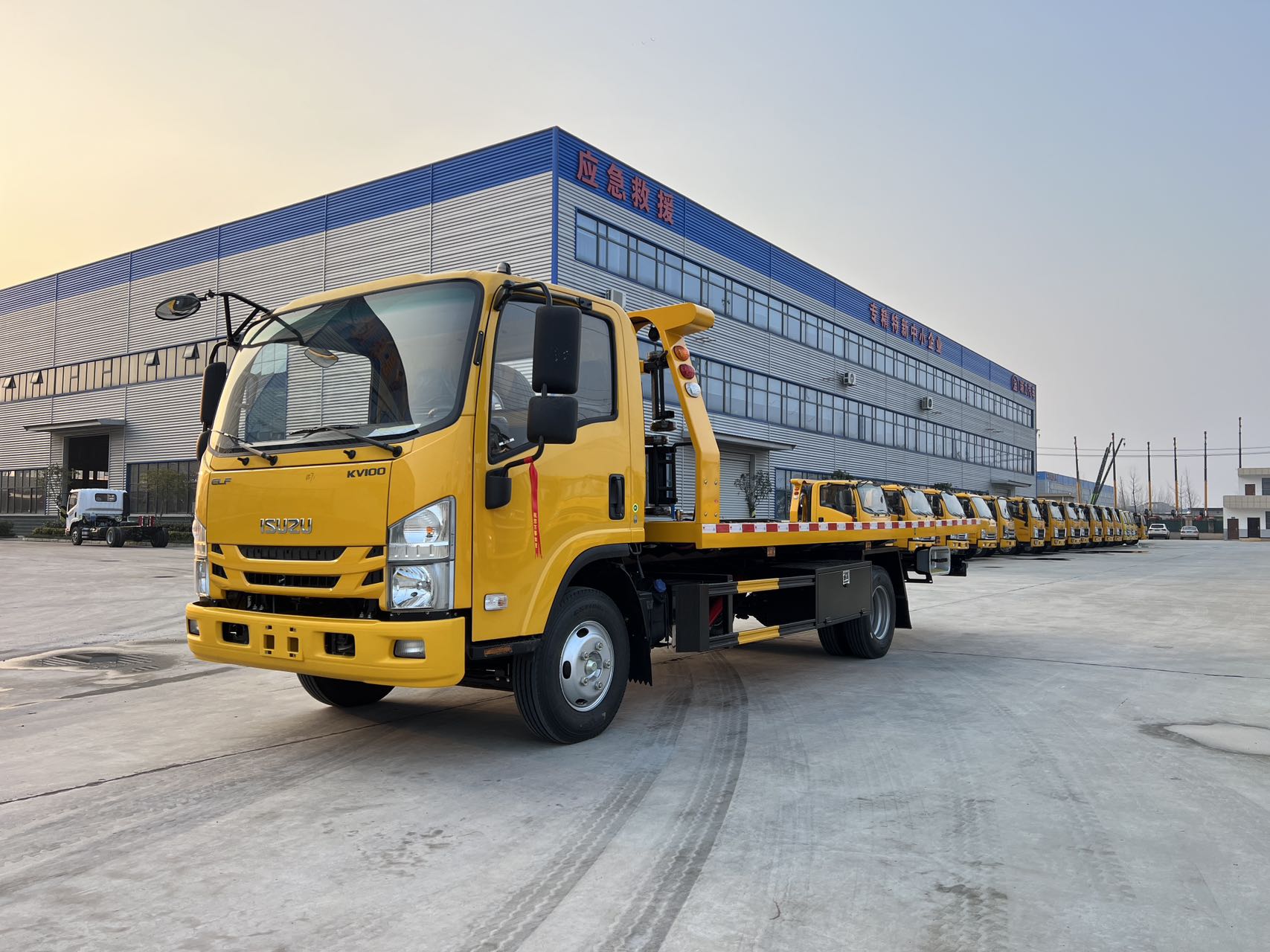

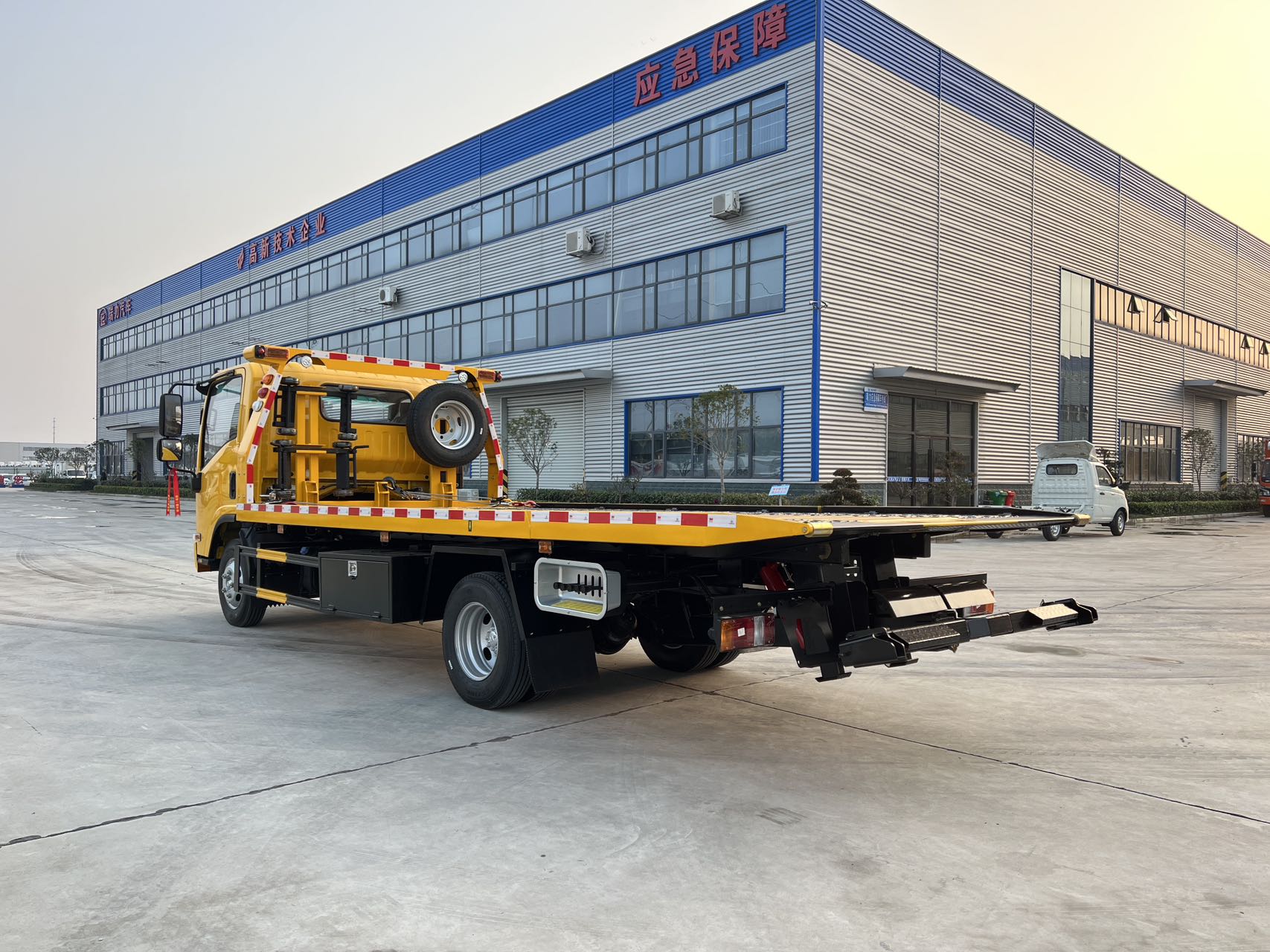

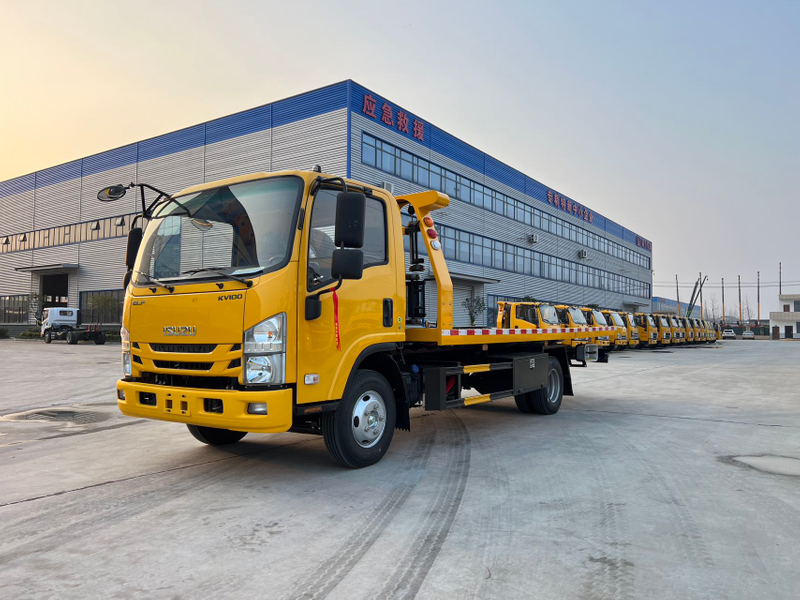

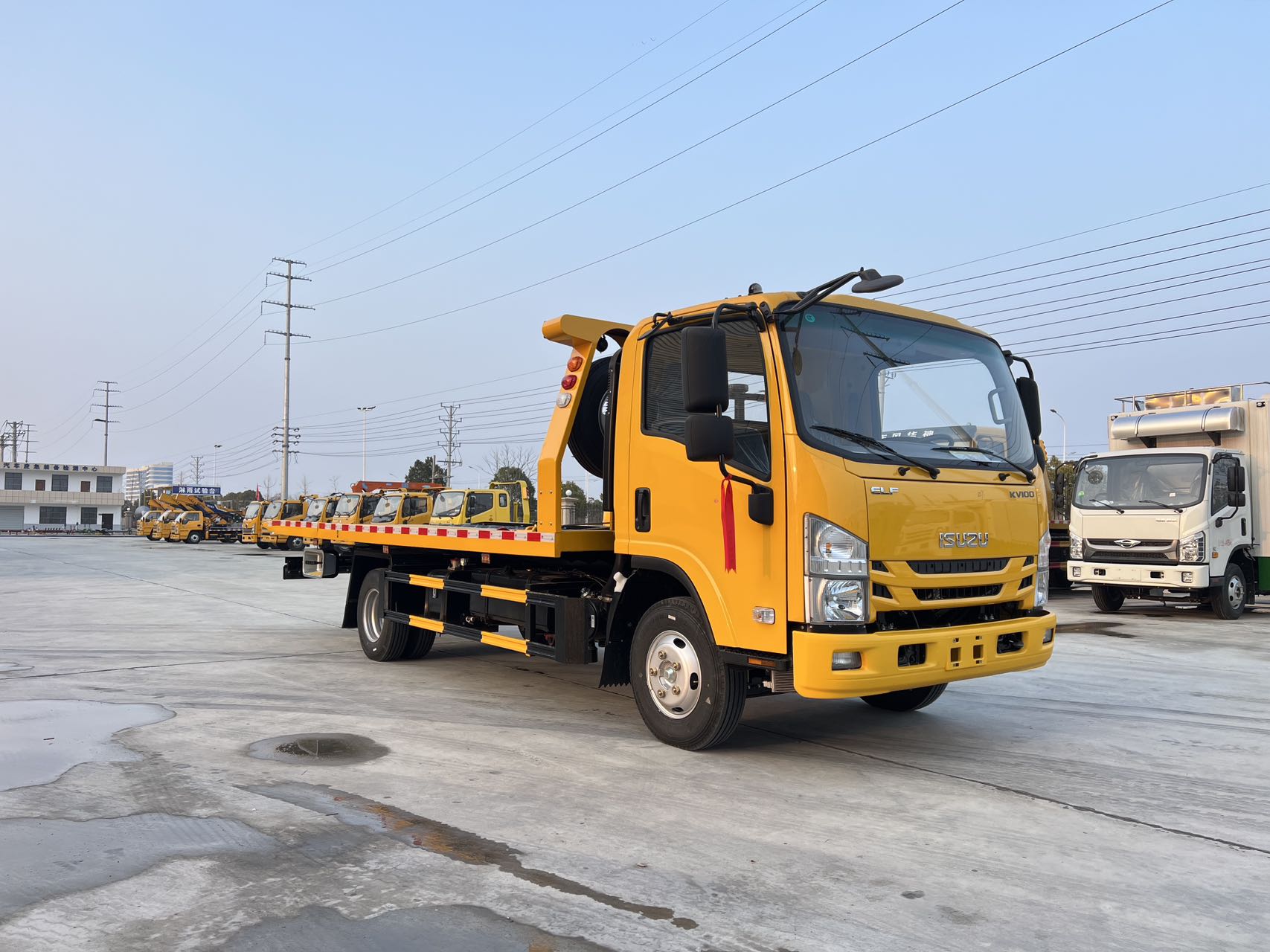

Qingling ISUZU Wrecker Truck KV100 4x2 (EURO VI)
Advantages:
• More environmentally friendly
Qingling Guo VI products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.
• More economical (fuel saving and urea saving)
Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;
High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;
• High reliability and low maintenance cost.
• Stronger oil adaptability
Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.
• More cost-effective
• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.
Qingling ISUZU Wrecker Truck KV100 4x2 (EURO VI)
Model： | QL1073BUKAY |
Drive： | 4×2 |
Overall dimension： | L:6760 / W:2030/ H:2280 |
GVW： | 7300 KG |
Curb mass： | 2350 KG |
Load mass： | 4950 KG |
Wheelbase(mm)： | 3815 mm |
Engine Model： | 4KH1CN6LB |
Engine power： | 88kW/120PS |
Fuel type： | Diesel |
Oil consumption： | 11.3L/100km |
Emission： | Euro VI |
Max. speed： | |
Tire： | 7.00R16 14PR，7.00-16 |
Cab： | Single row |
Displacement/排量: | 2.999L |
Cab allowable passengers： | 3人 |
Front wheel track /前轮距： | 1685 mm |
Rear wheel track/后轮距： | 1525 mm |
Other configurations： | ABS system/ABS系统 power steering/动力转向 Reflective signage/反光标识 air conditioning system/空调系统 Maintenance-free battery/免维护蓄电池 Central locking/中控锁 Automatically air-cut brake/断气刹 LCD instrument/液晶仪表 |
Upper body technical Specification/上装技术规格
Upper body/上装 | 4000KG |
Winch/卷扬 | 4000KG |
Wire rope/钢丝绳 | 21m |
Back bracket/后托臂 | 3000KG |

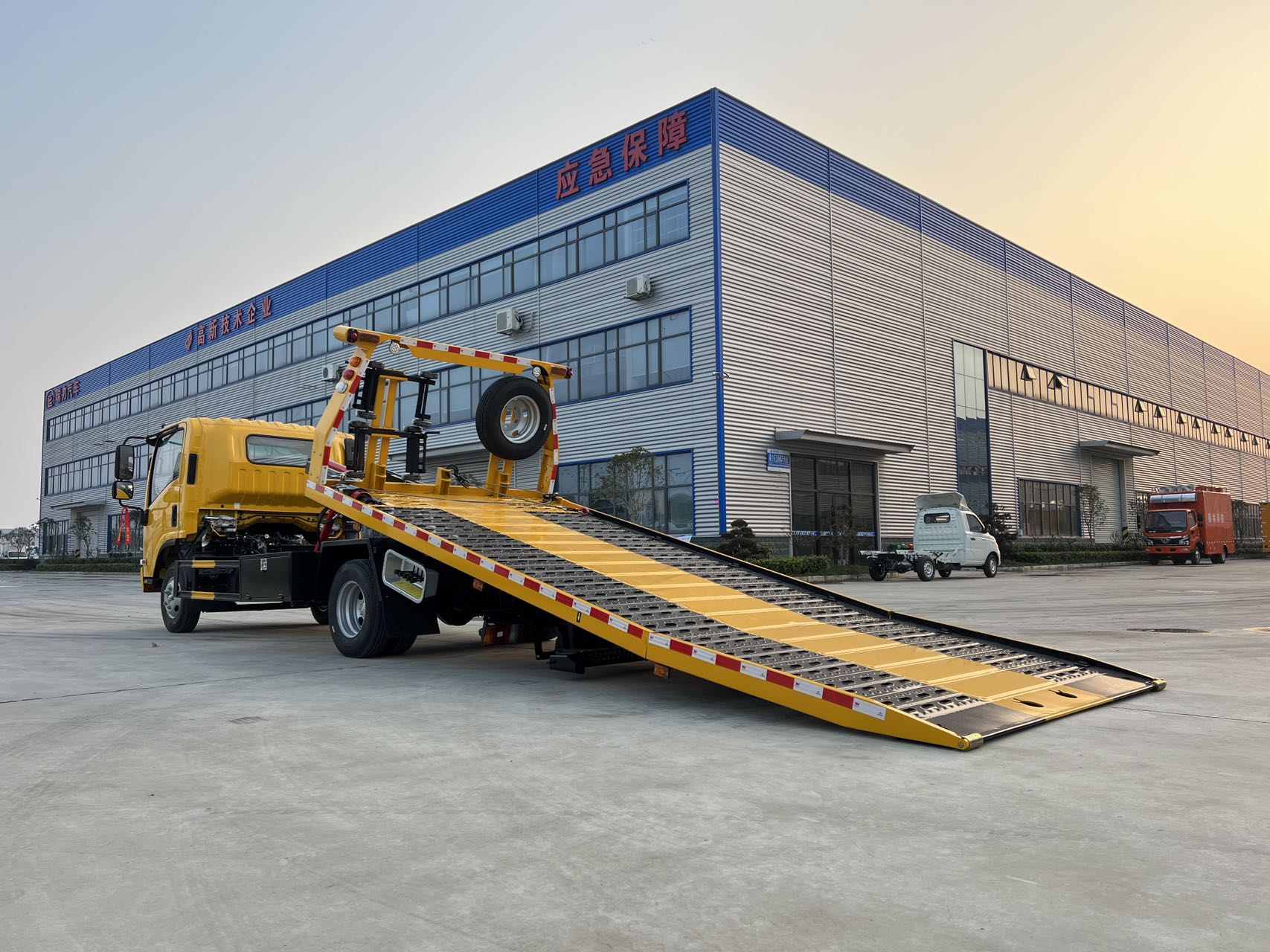

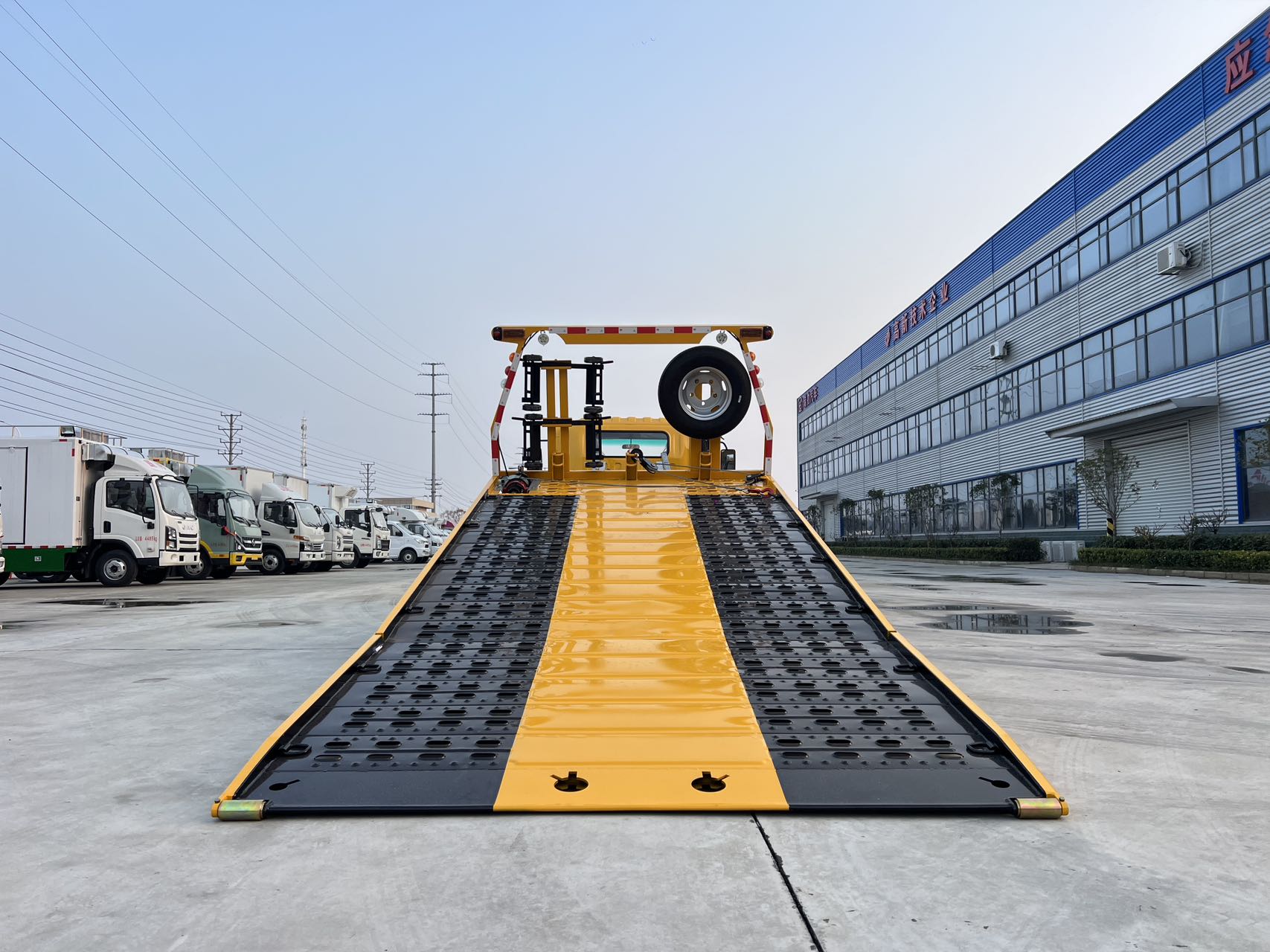

Other configuration/其他配置 | 底板为冲压一体板,板长5.6米,板宽2.35,双侧联动操作,辅助小车一套,四根捆绑带,L型抱胎架一对,抱胎简一对，工具箱一个，LED工作照明灯对,其余标配。 The bottom plate is a stamped integrated board, the board length is 5.6 meters, the board width is 2.35, the bilateral linkage operation, a set of auxiliary trolley, four binding belts, a pair of L-type holding tire frame, a pair of holding tire, a toolbox, a pair of LED work lights, the rest of the standard. |
