QL1180JQFRY
ISUZU
Product Description

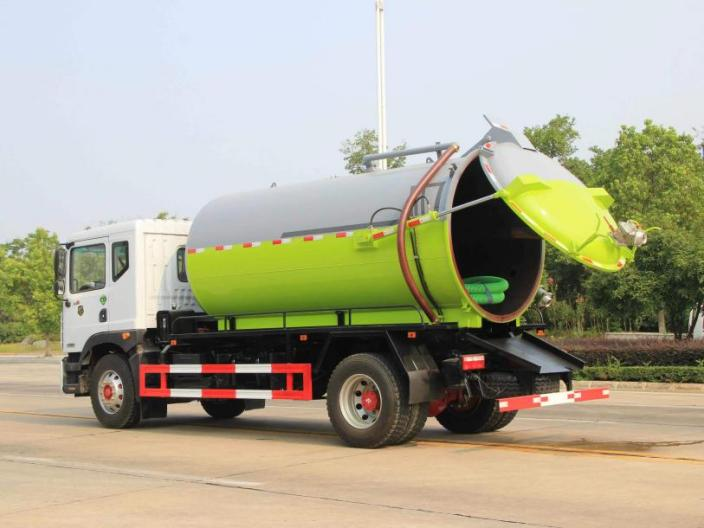

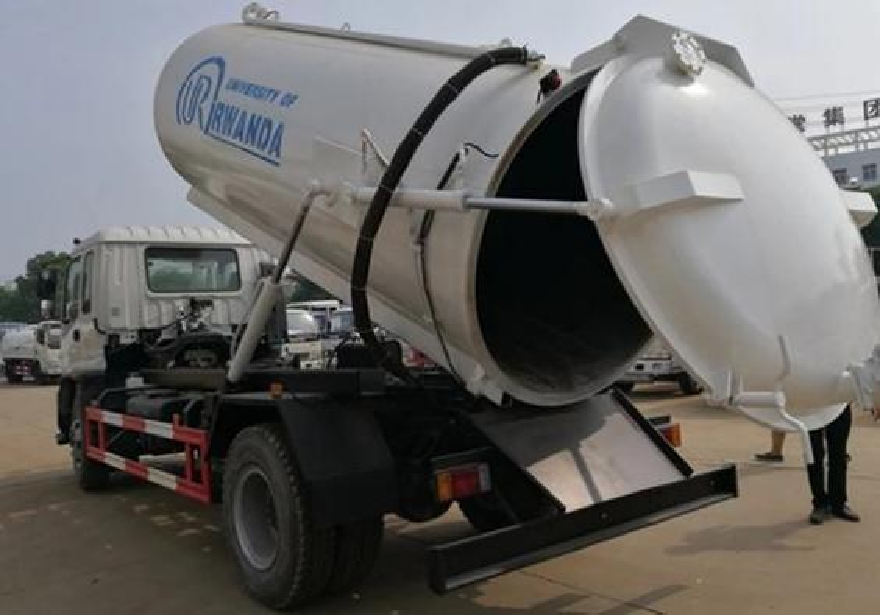

Qingling ISUZU Sewage Suction Truck 12m³ 4x2 QL1180JQFRY
Advantages:
• More environmentally friendly
Qingling Guo VI products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.
• More economical (fuel saving and urea saving)
Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;
High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;
• High reliability and low maintenance cost.
• Stronger oil adaptability
Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.
• More cost-effective
• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.
Qingling ISUZU Sewage Suction Truck 12m³ 4x2 QL1180JQFRY（Euro 6）

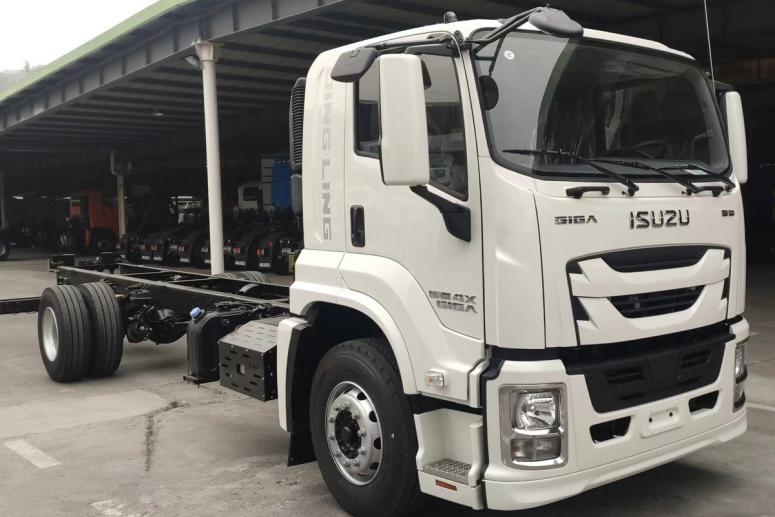

I. Chassis Parameter 底盘参数
Model/车型： | QL1180JQFRY |
Drive Type/驱动方式 | 4x2 |
Chassis dimension/底盘尺寸 (L x W x H)： | 7420x2530x2810(mm) |
GVW/总质量： | 16000KG |
Curb weight/整备质量： | 5600 KG |
Wheelbase/轴距(mm)： | 4500 mm |
Engine Model/发动机型号： | 4HK1-TCG60 |
Engine Power/发动机功率： | 150Kw/204PS |
Emission/排放： | Euro V/ 欧六（取消后处理） |
Fuel Type/燃油类型： | Diesel/柴油 |
Cab/驾驶室: | One and half Rows /排半 |
Front wheel track /前轮距： | 1960,1990,2030mm |
Rear wheel track/后轮距： | 1855mm |
Tire/轮胎： | 295/80R22.5 16PR,295/80R22.5 18PR |
Other configurations/其他配置： | Power steering/动力转向 Reflective signage/反光标识 Air conditioning system/空调系统 Maintenance-free battery/免维护蓄电池 |
II. Upper body parameters/上装配置
