Qingling ISUZU Dump Truck 8x4 QL5400GXFW2VCHY

Condition: New
Steering: Left
Horsepower: 460ps
Fuel Type: Diesel
Drive: 4x2
Emission Standard: Euro 5
Brand: Isuzu
Overall size: 11285*2540*3055,2985 mm


Availability:
Quantity:
  • QL5400GXFW2VCHY

  • ISUZU

Product Description

Qingling ISUZU Dump Truck 8x4  QL5400GXFW2VCHY

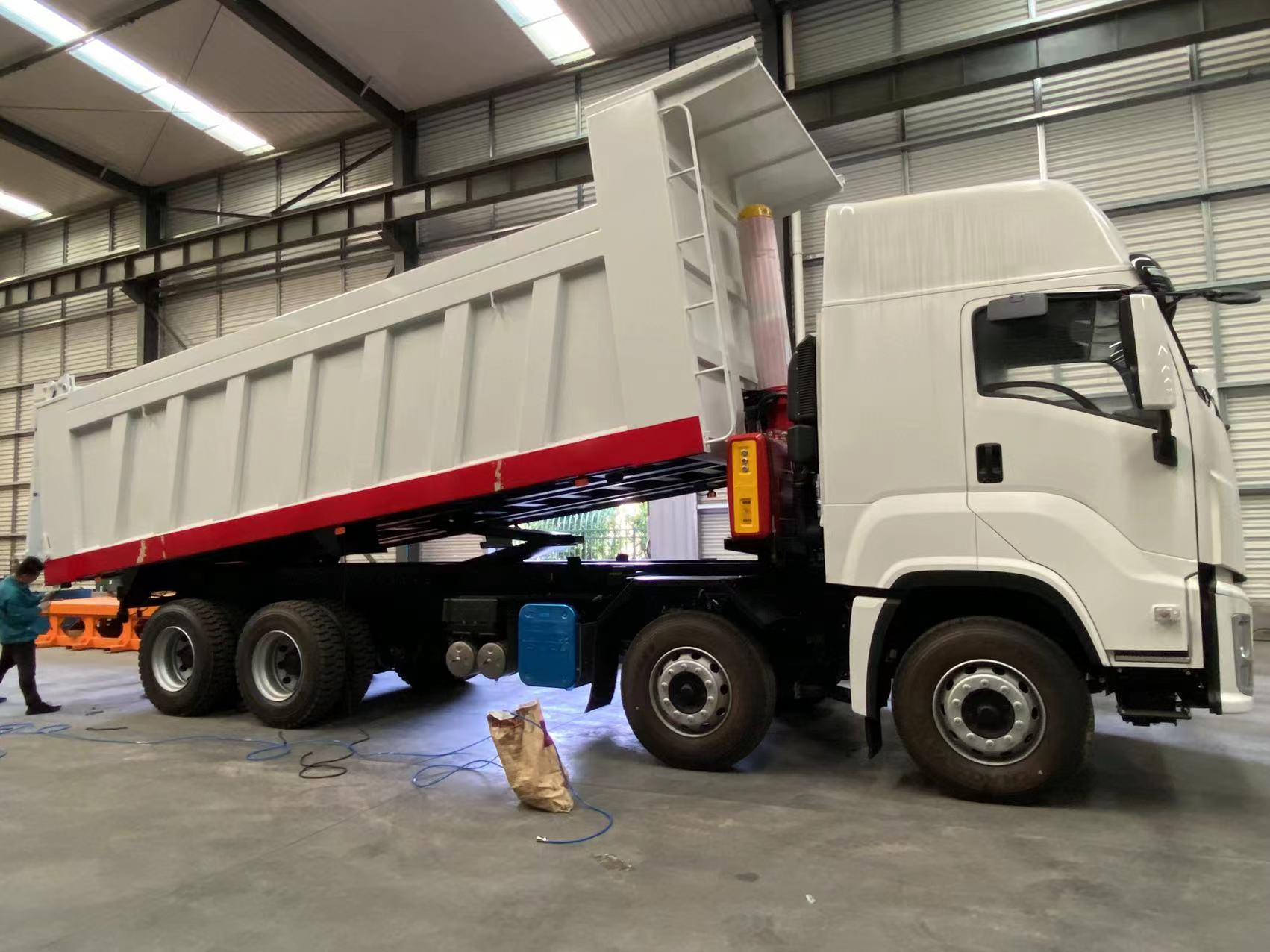

fe2afb329e4f4cd35bded7108189319


Advantages:


• More environmentally friendly

Qingling Guo V products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.


• More economical (fuel saving and urea saving)

Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;

High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;


• High reliability and low maintenance cost.


• Stronger oil adaptability

Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.


• More cost-effective

• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.



ISUZU 700P Van Truck Specifications (Euro V)



Model/车型

QL5400GXFW2VCHY

Overall dimension/外形尺寸:

11285 X2540X3055, 2985mm

GVW/总质量:

40000 KG

Curb weight/整备质量:

10450 KG

Wheelbase/轴距(mm)

1850+4575+1370 mm

Engine Model/发动机型号

6WG1-TCG51

Engine Power/发动机功率:

338Kw/460PS

Transmission Box/变速箱:

ZF8S2230TO

Emission/排放

Euro V/ 欧五

Fuel Type/燃油类型:

Diesel/柴油

Displacement/排量:

15681ml

Cab/驾驶室:

High roof/高顶  One row with sleeper  排半

Front wheel track /前轮距:

2060/2060 mm

Rear wheel track/后轮距:

1855/1855 mm

Front/rear suspension 前悬/后悬:

1370/2120mm

Tire/轮胎:

315/80R22.5 16PR

Alex load/轴荷:

7000/7000/26000

Max. Speed/最高时速:

102  km/h

Other configurations/其他配置

ABS system/ABS系统

power steering/动力转向

Reflective signage/反光标识

air conditioning system/空调系统

Maintenance-free battery/免维护蓄电池

Dumper box configuration/上装配置

Specification/规格:30m³Dimension/尺寸:7.4x2.3x1.8mThickness/板厚(mm):Bottom panel/底板8mm,side panel/边板6mmMaterial/材料:Q235
