ISUZU
Product Description
Qingling ISUZU4000L Fire truck (Euro VI)

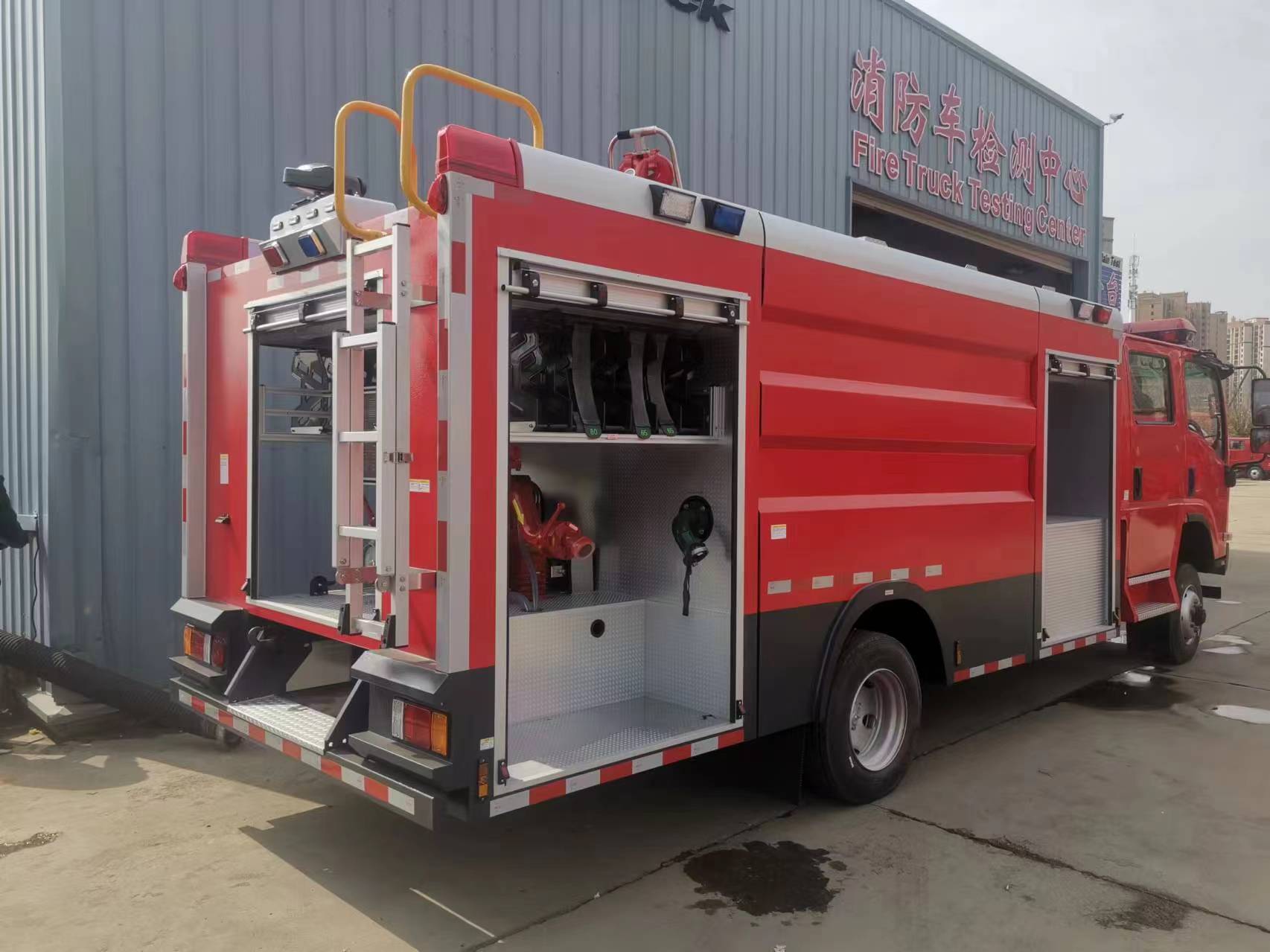

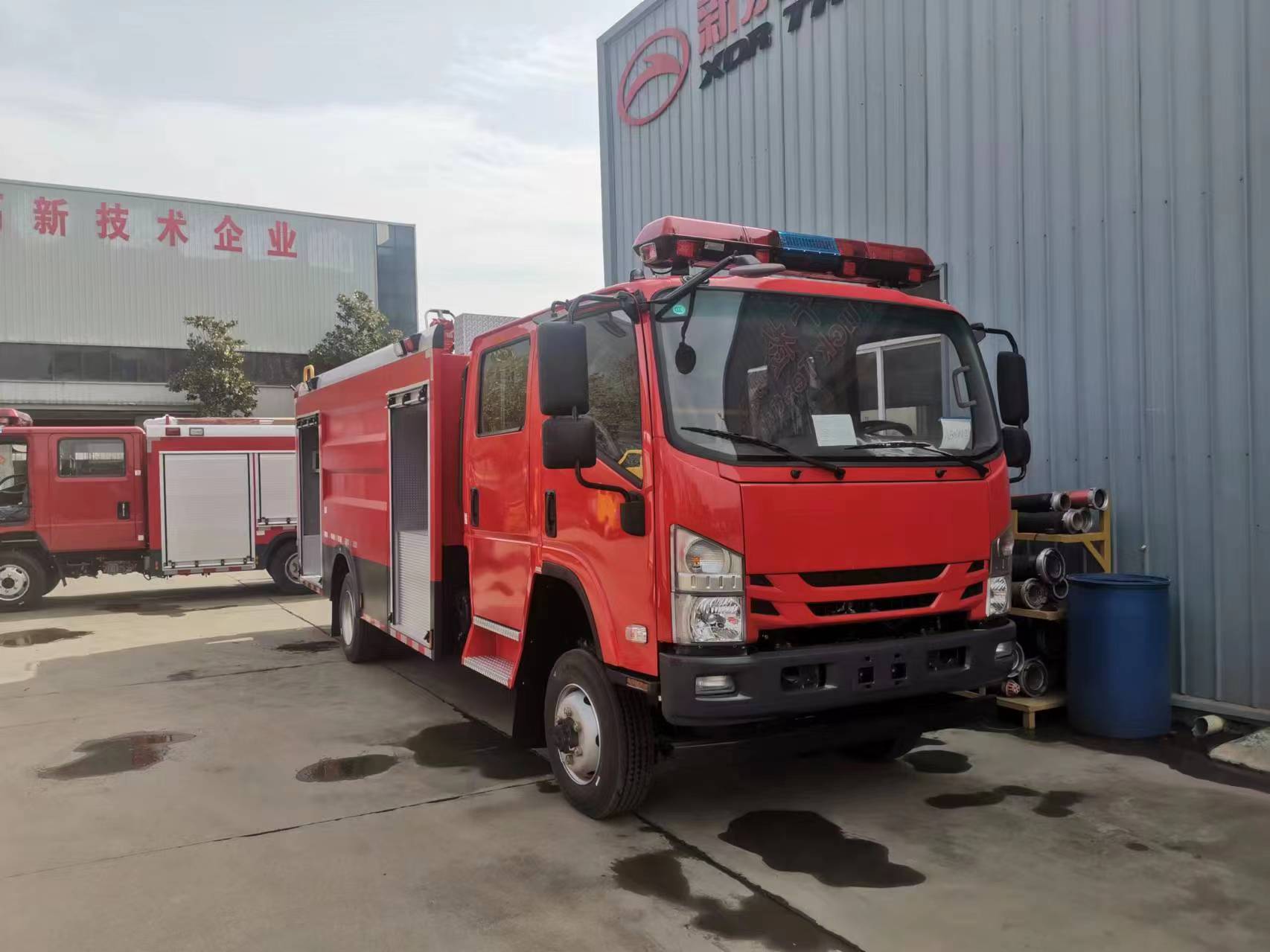

ISUZU firefighting truck is adopted ISUZU4475mm wheelbase chassis, equipped with 4000L water tank, as well as standard fire fighting equipment, such as fire extinguished equipment, forcible entry rescue tool and so on. The vehicle has crew cab and max 6 passengers inside. The body main structure is made by high quality steel and the equipment room is covered with shutter door and equips rescuer and personal protection device, which is based on the requirement.
Name | Parameter |
Overall Dimension | 7930x2170x2330,2410mm |
GVW | 10550KGS |
Water Tank Capacity | 4000L |
Engine | 4HK1-TCG61/ 190hp |
Emission | Euro VI |
Max Speed | 95km/h |
Front / Rear Axle Load | 4000 / 7000 |
Approach / Departure Angle | 19/ 13 |
Allowable Cab Passengers | 2+4 |
Chassis
Specification
Manufacture | ISUZU |
Engine Output | 190Hp |
Displacement | 5193ml |
Emission | Euro VI |
Wheel base | 4475mm |
Max Speed | 95km/h |
Transmission Form | 6 forward and 1 reverse |
Manufacturing year | Dec. 2020 |
Body
Arrangement plan
Body
Equipment Room | Body is made by high quality steel with phosphate treatment. The inner plate and floor are made by anodized aluminum plate. |
|
Equipment Rack | Aluminum alloy structure | |
Ladder | on the backside body |
