QL1100A8KAY
ISUZU
Product Description

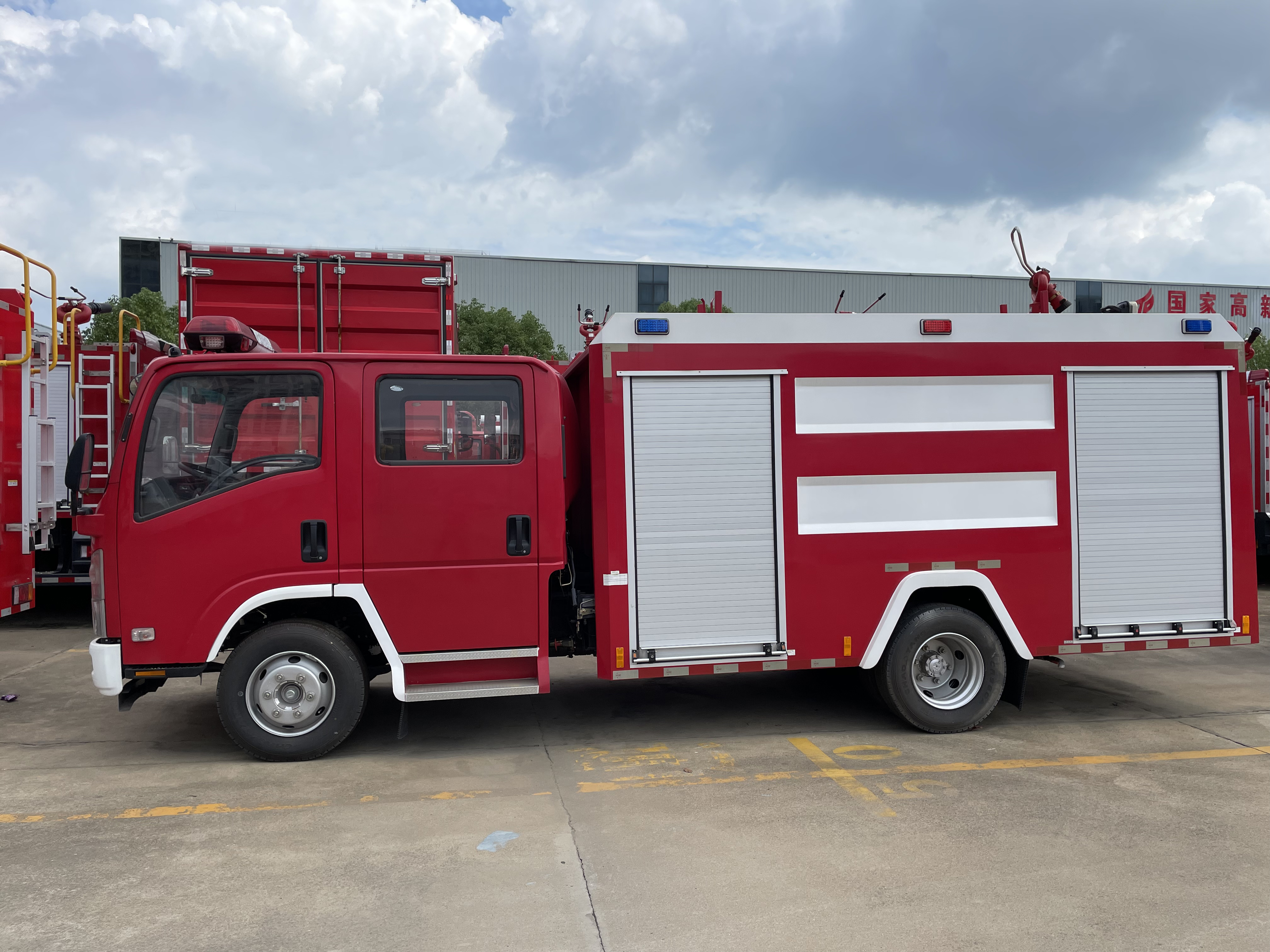

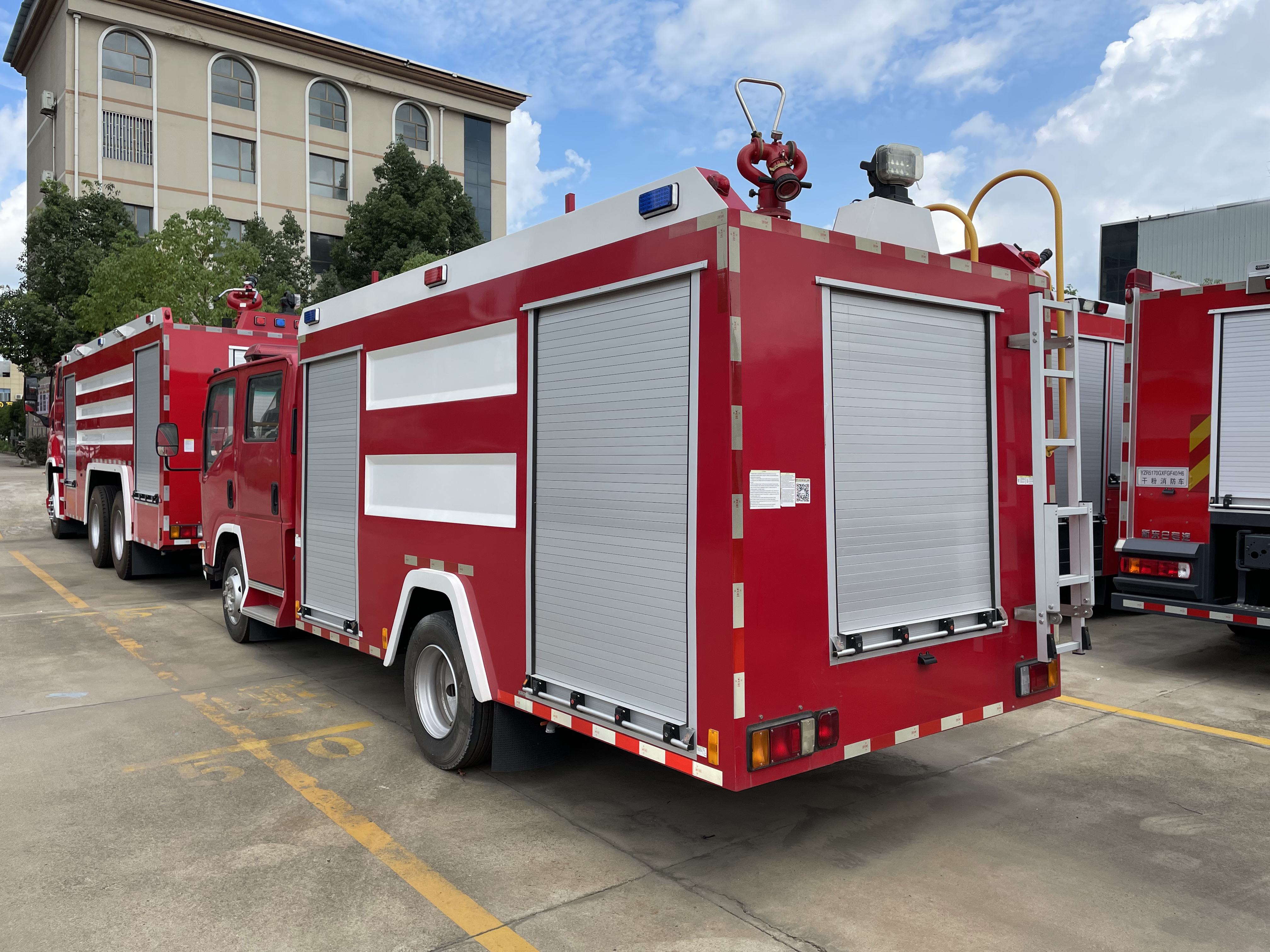

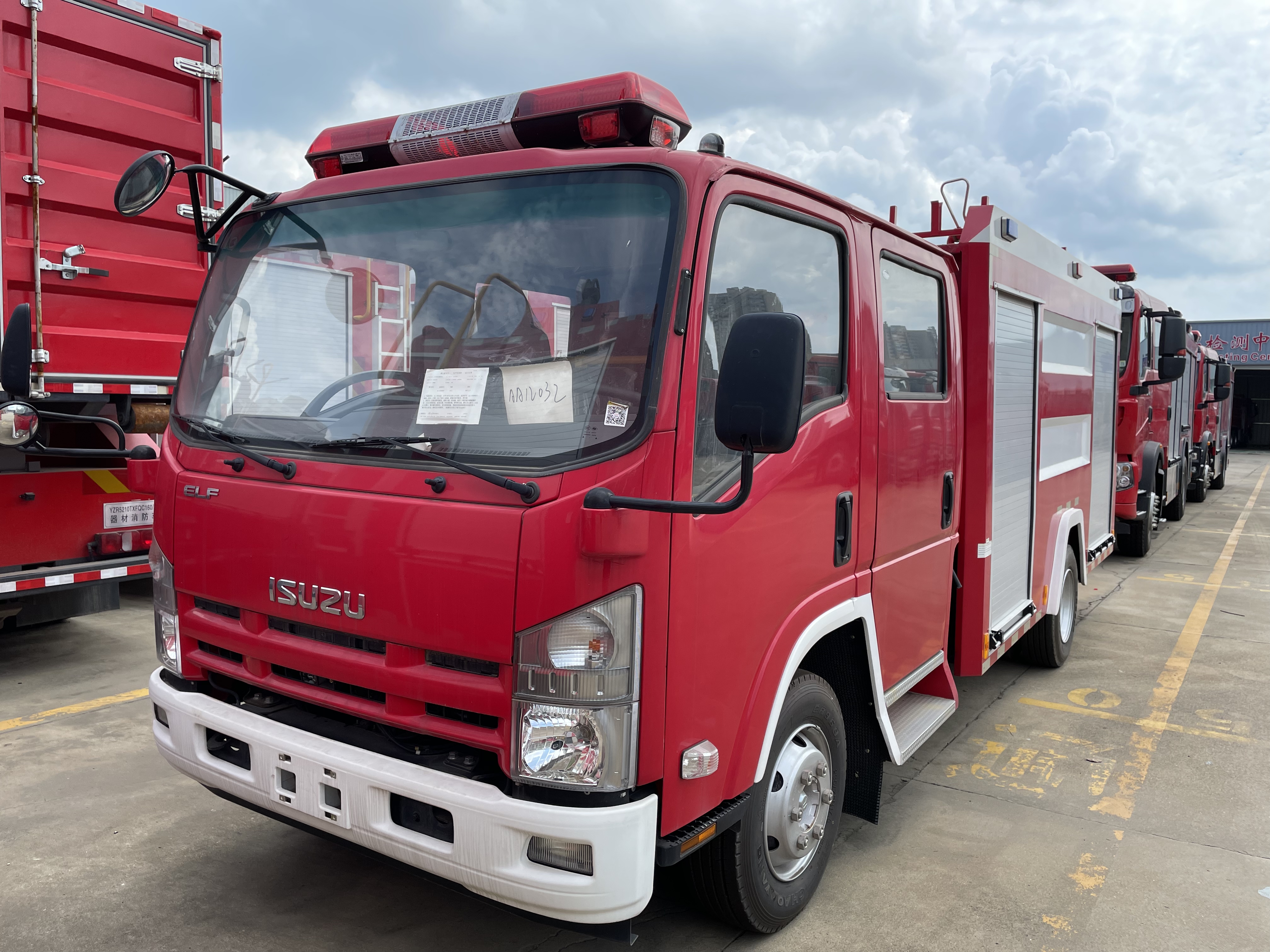

Qingling ISUZU 3500L Fire truck (Euro V)
ISUZU firefighting truck is adopted ISUZU 3815mm wheelbase chassis, equipped with 3500L water tank, as well as standard fire fighting equipment, such as fire extinguished equipment, forcible entry rescue tool and so on. The vehicle has crew cab and max 6 passengers inside. The body main structure is made by high quality steel and the equipment room is covered with shutter door and equips rescuer and personal protection device, which is based on the requirement.
Name | Parameter |
Overall Dimension | 6960 x 2250 x 3100mm |
GVW | 10550KGS |
Water Tank Capacity | 3500L |
Engine | 4HK1-TC51 / 190hp |
Emission | Euro 5 |
Max Speed | 95km/h |
Front / Rear Axle Load | 4000 / 7000 |
Approach / Departure Angle | 19/ 13 |
Allowable Cab Passengers | 2+4 |
Chassis
Specification
Model | QL1100A8KAY |
Manufacture | ISUZU |
Engine Output | 190Hp |
Displacement | 5193ml |
Emission | Euro 5 |
Wheel base | 3815mm |
Max Speed | 95km/h |
Transmission Form | 6 forward and 1 reverse |
Manufacturing year | Dec. 2020 |

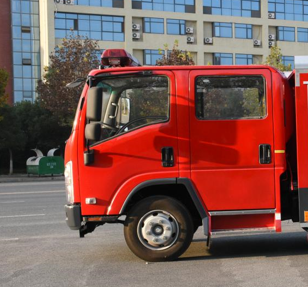

Driving Cab
Form | 4 doors crew cab |
|
Passenger | 2+4 | |
Steering Wheel | Left hand Drive | |
Equipment | 1. Control box for alarm and alarm lamp |  |
Manufacturing year | March 2021 |
Body
Arrangement plan
Body
Equipment Room | Body is made by high quality steel with phosphate treatment. The inner plate and floor are made by anodized aluminum plate. |
|
Equipment Rack | Aluminum alloy structure | |
Ladder | on the backside body |
