Product Description

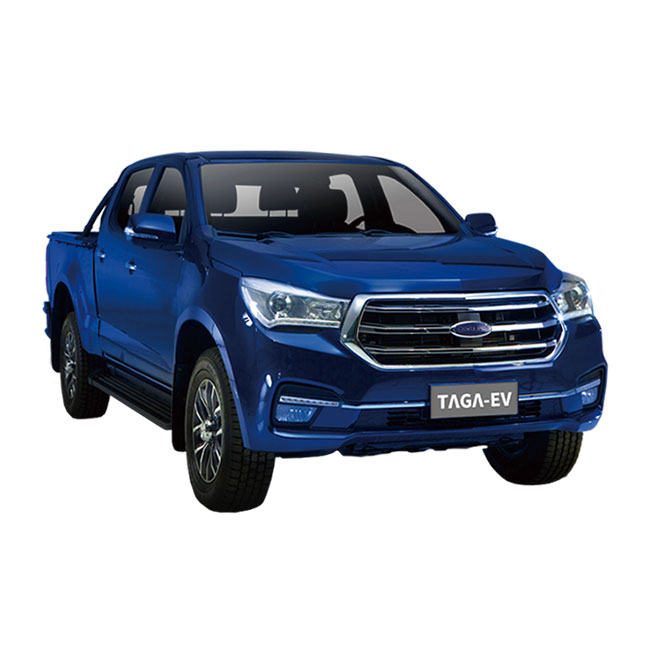

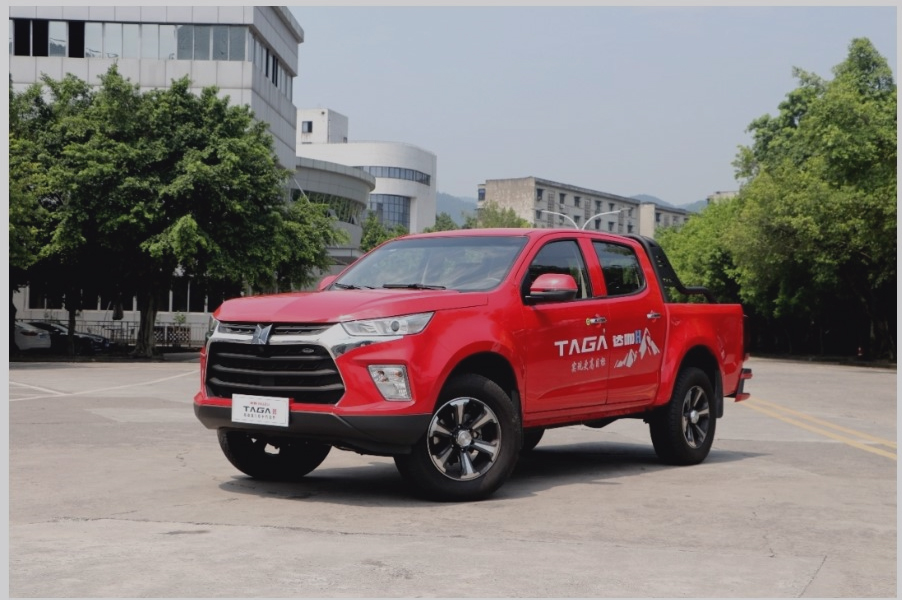

Pickup (pure electric)
TAGA
Intellectualization
The advanced and efficient CAN network system is adopted, and the overall electrical architecture is newly designed to provide intelligent vehicle machine interconnection, information management and remote diagnosis in real time.
Utilization
The internal and external modeling and DTS are designed according to the standard of passenger cars.
SUV appearance, interior soft technology and materials.
Reliability
Strong chassis with high load and high torsion resistance
Optimize and lift chassis systems such as frame, front and rear axles, suspension and transmission; Greatly improve the robustness, reliability and bearing capacity of the chassis.
High strength body
3H body structure, high-strength steel proportion of more than 70%, rigid passenger compartment body, effectively protect your safety.
Security
The taga pickup has reserved 6 airbags and ESC layout design. In addition to the front seat belt reminder and other sub items, the full height configuration meets the C-NCAP five-star standard.
Item | Configure 1 | Configure 2 | Configure 3 |
Truck name | Pure electric cargo truck | Pure electric cargo truck | Pure electric engineering truck |
Truck No. | QL1040BEVENHW | QL1030BEVEEGW | QL5040XGCBEVENHW2 |
Engine Model No. | |||
Fuel type | |||
Displacement | |||
Engine power | |||
Torque | |||
Drive Speed Ratio | 12.01 | 4.1 | |
Transmission Model | |||
Gross Mass(kg) | 3505 | 3495 | 3505 |
Curb Mass(kg) | 2250 | 2100 | 2380 |
Load Mass(kg) | 930 | 1070 | 800 |
Towering mass (kg) | |||
Wheel base(mm) | 3406 | 3096 | 3406 |
Cab type | Double rows | Double rows | Double rows |
Passenger | 2+3 | 2+3 | 2+3 |
Overall dimension Length (mm) | 5660 | 5350 | 5660 |
Overall dimension Width (mm) | 1885 | 1540 | 1885 |
Overall dimension Height (mm) | 1825 | 1825 | 1850 |
Container volume | |||
Container internal dimension length (mm) | 1800 | 1885 | 1800 |
Container Internal dimension width (mm) | 1540 | 1485 | 1540 |
Container Internal dimension height (mm) | 480 | 480 | 920 |
Front wheel track(mm) | 1570 | 1570 | 1570 |
Rear wheel track(mm) | 1570 | 1570 | 1570 |
Leaf spring | -/5 | -/5 | -/5 |
Front suspension (mm) | 945 | 945 | 945 |
Rear suspension (mm) | 1309 | 1309 | 1309 |
Axle load(kg) | 1273/2232 | 1250/2245 | 1273/2232 |
Max. speed | 110 |
