Product Description

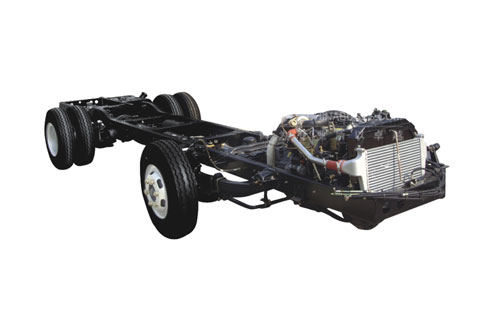

Qingling 700p 4X2 Bus Chassis without cab/with 4HK Engine
Advantages:
Strong power, strong vehicle carrying capacity and fast driving speed
Low fuel consumption and high oil prices, ultra-low operating costs are more prominent
Long service life, reliable and durable, and low maintenance cost
High safety, equipped with unique collision energy absorption safety system
Comfortable, business class like ride
Low life-cycle cost, creating more value for customers
Main Specifications about 700P:
Product name | ISUZU 700P Bus Chassis (without cab) |
MODEL | QL1100A8MAY |
Steering | Left hand drive |
Driving type | 4×2 |
Overall Dimension:mm(LxW) | 7930*2170 |
Wheelbase(mm) | 4475 |
Model | 4HK1-TC51 | |
Emission Standard | EURO V | |
Rated output power | 192HP | |
Fuel type | Diesel | |
Transmission | Model | Mechanics ISUZU brand |
Wheels and tires | 235/75R17.5 14PR, 8.25R20 14PR | |
Front track/rear track mm | 1680mm/1650mm | |
Configuration | 1. Power steering 2. AC 3. ABS 4. Retro-reflective Marking 5. Radial tire 6. Free Maintenance Battery | |
Medium Duty Truck：700P Parameter Comparison
Item | Parameter 1 | Parameter 2 | Parameter 3 |
Truck name | Cargo Truck | Cargo Truck | Cargo Truck |
Truck No. | QL1110ANKA | QL1100A8KA | QL1100A8LA |
Engine Model No. | 4HK1-TCG61 | 4HK1TC51 | 4HK1TC51 |
Fuel type | 0 # or - 10 # national V diesel (s content ≤ 10ppm) | 0 # or - 10 # national V diesel (s content ≤ 10ppm) | 0 # or - 10 # national V diesel (s content ≤ 10ppm) |
Displacement | 5193 | 5193 | 5193 |
Engine power | 139 | 141 | 141 |
Torque | 510 | 513 | 513 |
Drive Speed Ratio | 4.1 | ||
Transmission Model | MLD-6Q | ||
Gross Mass(kg) | 10550 | 9995 | 10055 |
Curb Mass(kg) | 4310 | 3920 | 3980 |
Load Mass(kg) | 6045 | 5880/5680 | 5880/5680 |
Towering mass (kg) | |||
Wheel base(mm) | 3815 | 3815 | 4175 |
Cab type | Single row | Single row | Single row |
Passenger | 3 | 3 | 3 |
Overall dimension Length (mm) | 7020 | 7020 | 7450 |
Overall dimension Width (mm) | 2380 | 2260 | 2260 |
Overall dimension Height (mm) | 2520,2600,2460,2540 | 2460 | 2480 |
Container volume | |||
Container internal dimension length (mm) | 5058 | 5058 | 5508 |
Container Internal dimension width (mm) | 2300 | 2150 | 2150 |
Container Internal dimension height (mm) | 450 | 450 | 450 |
Front wheel track(mm) | 1680 | 1680 | 1680 |
Rear wheel track(mm) | 1650 | 1650 | 1650 |
Leaf spring | 8/10+6 | 8/10+6 | 8/10+6 |
Front suspension (mm) | 1110 | 1110 | 1110 |
Rear suspension (mm) | 2095 | 2095 | 2165 |
Axle load(kg) | 3500/7050 | 3350/6645 | 3360/6695 |
Max. speed | 110 | 110 | 110 |
Medium Duty Truck：700P Parameter Comparison
Item | Parameter 1 | Parameter 2 | Parameter 3 |
Truck name | Truck Chassis | Truck Chassis | Truck Chassis |
Truck No. | QL1111ANKAY | QL1100A8KAY | QL1100A8LAY |
Engine Model No. | 4HK1-TCG61 | 4HK1TC51 | 4HK1TC50 |
Fuel type | 0 # or - 10 # national V diesel (s content ≤ 10ppm) | 0 # or - 10 # national V diesel (s content ≤ 10ppm) | 0 # or - 10 # national V diesel (s content ≤ 10ppm) |
Displacement | 5193 | 5193 | 5193 |
Engine power | 139 | 141 | 141 |
Torque | 510 | 513 | 637 |
Drive Speed Ratio | |||
Transmission Model | |||
Gross Mass(kg) | 10550 | 10000 | 10055 |
Curb Mass(kg) | 3400 | 3180/3380 | 3200/3400 |
Load Mass(kg) | |||
Towering mass (kg) | |||
Wheel base(mm) | 3815 | 3815 | 4175 |
Cab type | Single row | Single row | Single row |
Passenger | 3 | 3 | 3 |
Overall dimension Length (mm) | 6980 | 6980 | 7430 |
Overall dimension Width (mm) | 2170 | 2170 | 2170 |
Overall dimension Height (mm) | 2370/2450 | 2330/2410 | 2330/2410 |
Front wheel track(mm) | 1680 | 1680 | 1680 |
Rear wheel track(mm) | 1650 | 1650 | 1650 |
Leaf spring | 8/10+6 | 8/10+6 | 8/10+6 |
Front suspension (mm) | 1110 | 1110 | 1110 |
Rear suspension (mm) | 2055 | 2055 | 2145 |
Axle load(kg) | 3500/7050 | 3350/6650 | 3360/6695 |
Max. speed | 110 | 110 | 110 |
