QL1110ANHAY
ISUZU
Product Description

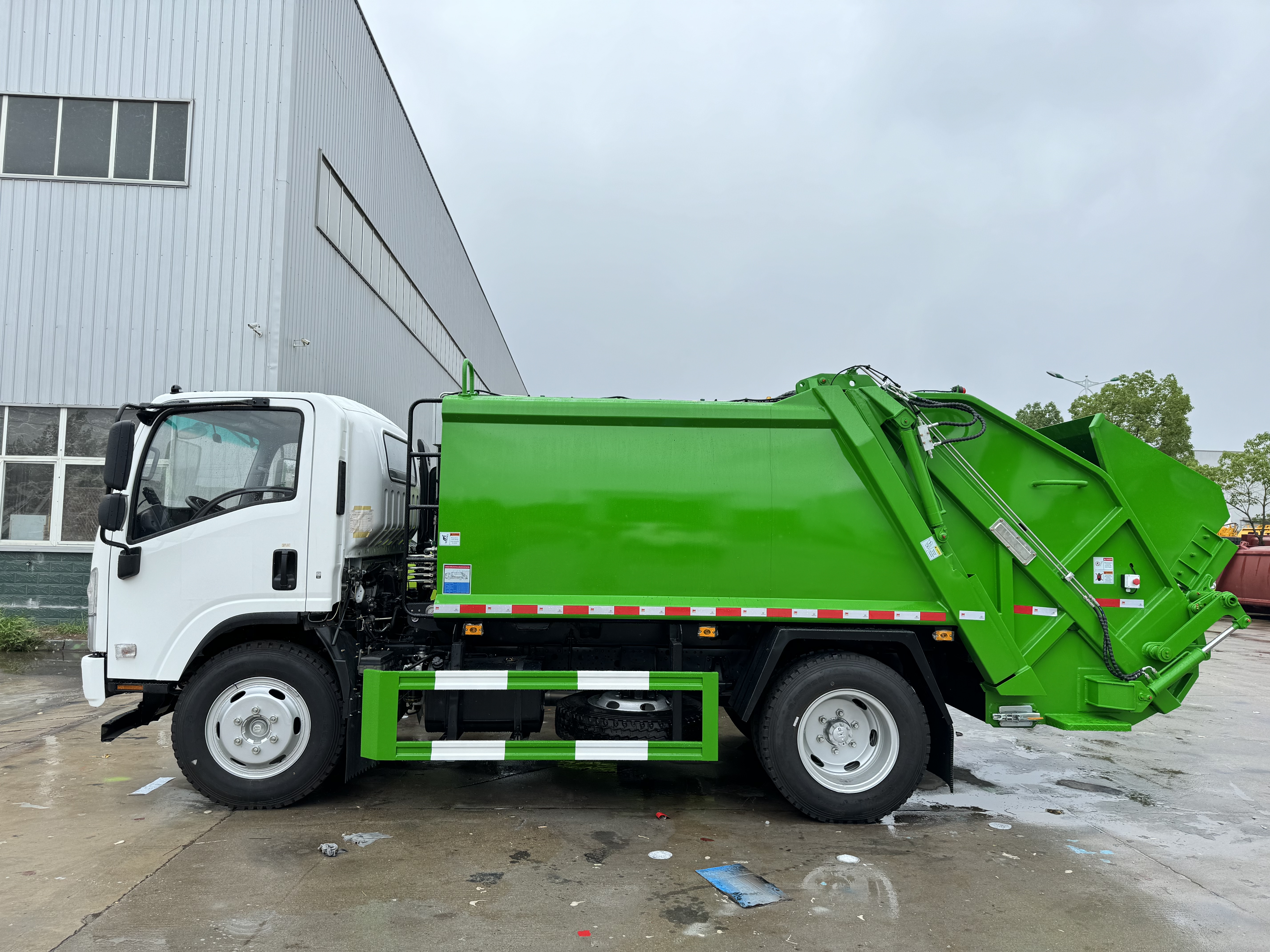

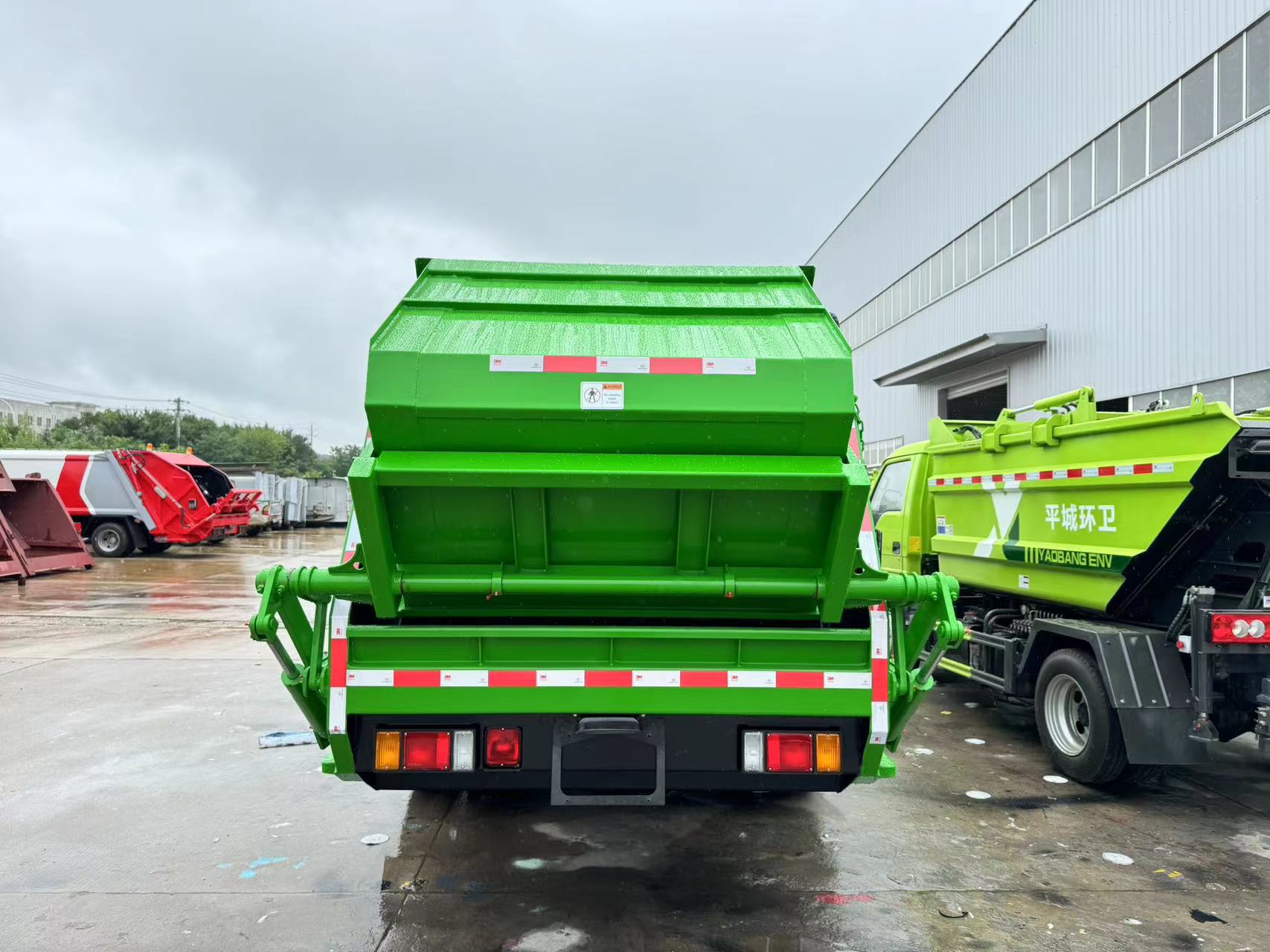

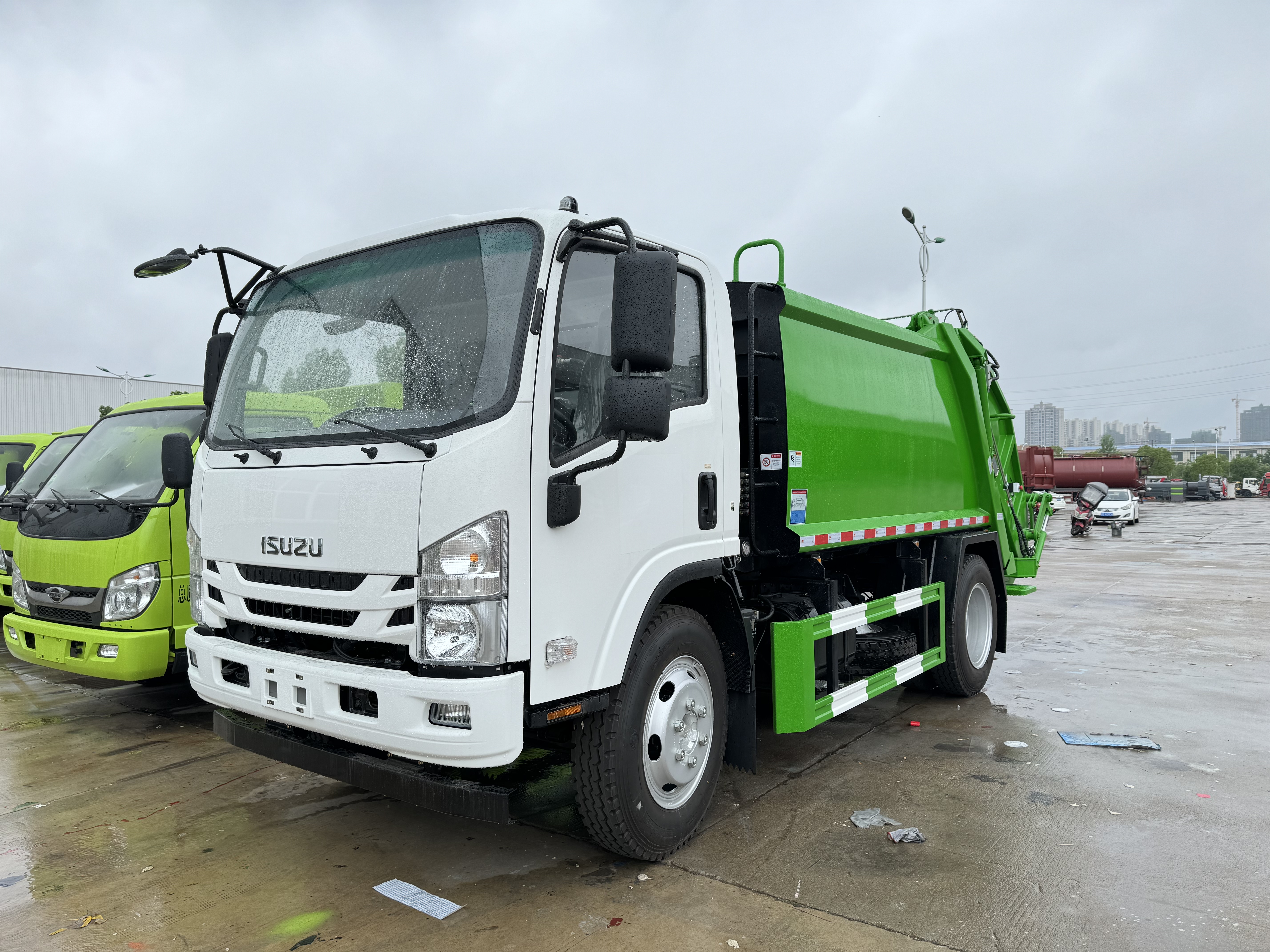

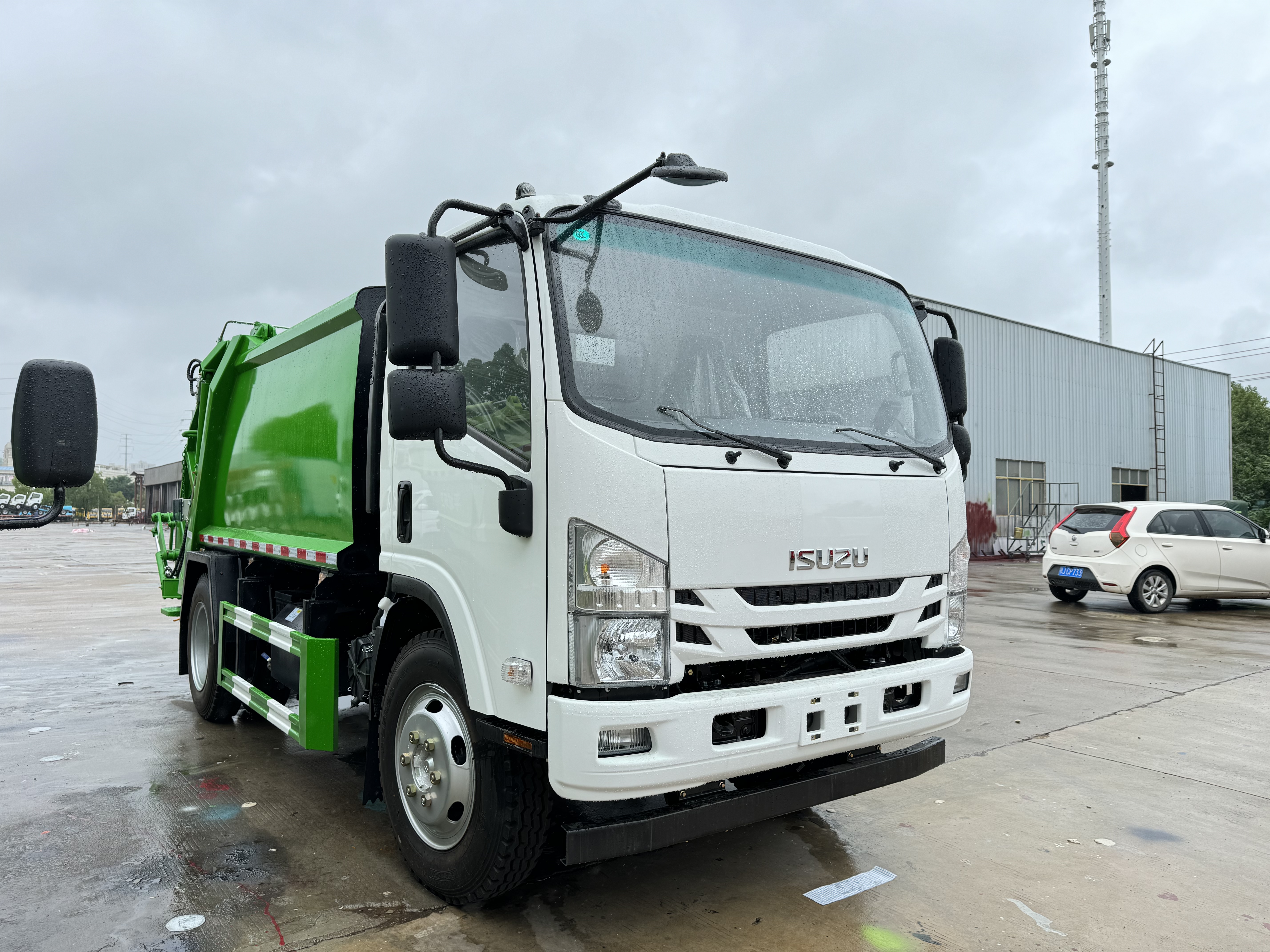

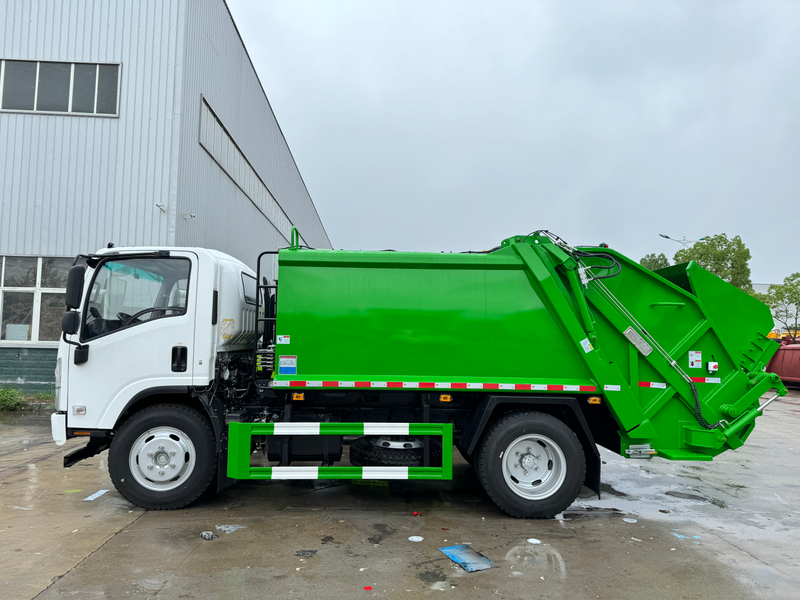

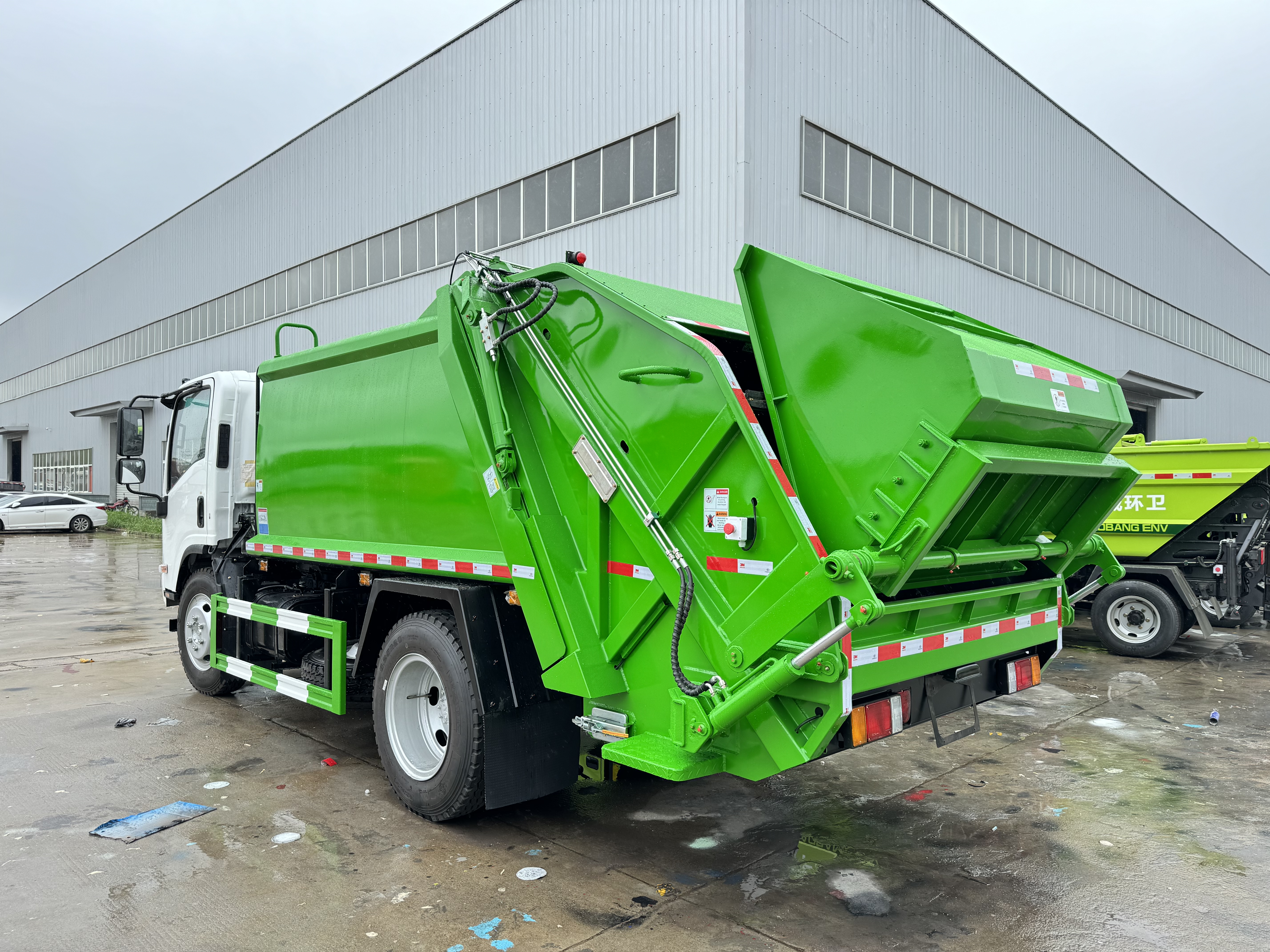

QingLing ISUZU 700P 6M3 Compressed Garbage TRUCK 4x2 QLQL1110ANHAY
Advantages:
• More environmentally friendly
Qingling Guo VI products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.
• More economical (fuel saving and urea saving)
Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;
High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;
• High reliability and low maintenance cost.
• Stronger oil adaptability
Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.
• More cost-effective
• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.
QingLing ISUZU 700P 6M3 Compressed Garbage TRUCK 4x2 QLQL1110ANHAY（Euro 6）
I. Chassis Parameter 底盘参数
Model/型号 | QL1110ANHAY | |
Driving type/驱动形式 | 4×2 | |
Complete vehicle kerb mass (kg)/整备质量 | 3240 | |
Gross Vehicle Weight (kg)/总质量 | 10550 | |
Maximum speed (km/h)/最高车速 | ||
Dimensions (mm)尺寸 | Length/长 | 5995 |
Width/宽 | 2170 | |
Height/高 | 2330 | |
Wheelbase (mm)/轴距 | 3360 | |
Engine/发动机 | 4HK1-TCG61 190HP（Euro 6） | |
Nominal power /额定功率 | 190hp/139kw | |
Cab/驾驶室 | Single row | |
Front wheel track/前轮距 | 1680mm | |
Rear wheel track/后轮距 | 1650mm | |
Tire/轮胎 | 8.25R20 16PR | |
II. Upper body parameters/上装配置
