Product Description
QingLing ISUZU 23M3 Compressed Garbage Truck 6x4 QL5330GXFW2SDZY
Truck Model: QL5330GXFW2SDZY

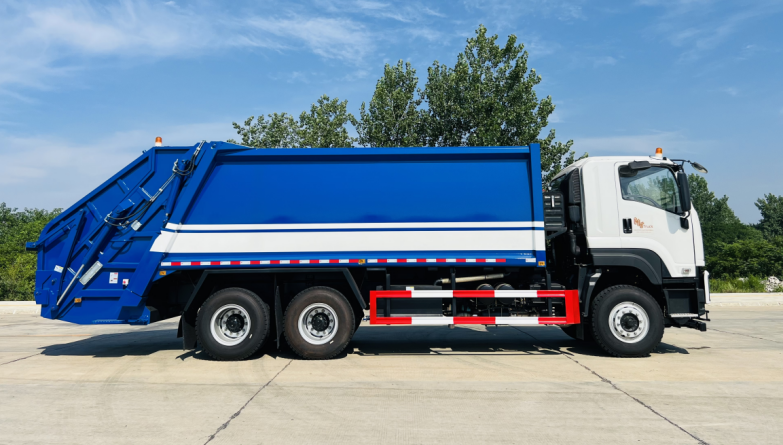

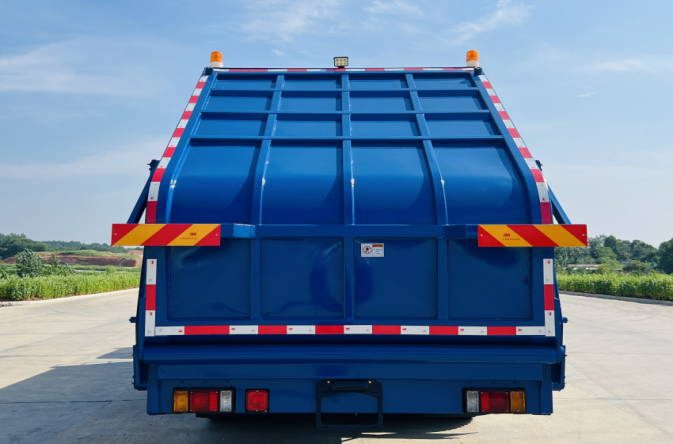

Compressed Garbage truck
This picture is just for reference图片仅供参考
Main Specifications主要参数
MODEL/车型 | QL5330GXFW2SDZY | |
| Driving type/驱动形式 | 6x4 | |
GVW/总质量 | 33000 KG | |
| Curb Weight/整备质量 | 9400 KG | |
Wheelbase/轴距(mm) | 4565+1370mm | |
| Engine/发动机 | 6WG1-TCG51 | |
| Rated output power/功率 | 338KW/460PS | |
| Cabin Type/驾驶室类型 | Plat Roof Single sleeper | |
| Front Seat/前排座椅 | 2 | |
Displacement(L)排量 | 16L | |
Front Wheel Distanc/前轮距 | 1855mm | |
Rear Wheel Distance/后轮距 | 1855mm | |
| Tires/轮胎数量 | 11(Including Spare Tire） | |
Tire Model/轮胎型号 | 315/80R22.518PR,12R22.18PR | |
Configurations/其他配置 | AC | |
ABS | ||
| Bias tire | ||
Power Steering | ||
Retro-reflective Marking | ||
| Free Maintenance Battery | ||
Upper body technical Specification
| Volume of tank | 23 m3 |
| Material of Garbage tank | High strength steel，T420 |
| Tank thickness | Side :4mm ; Bottom:5mm， |
Control system | Manual control：Manual operation device |
| Emergency control:With 1 Emergency off switch | |
| Electronic control：CAN bus control + silicone material operation control panel ，1 set on the filler， 1 set in the cab. | |
Equipped with 1 wireless remote control. | |
| Sewage tank | 2 tanks |
| Working zone Lighting | 2 lamps |
| Mechanism of raising | Hydraulic Lifting cylinder with balance valve |
Features | Control mode diversification,bidirectional compression |
Function | Seal garbage truck is formed of garbage box, hydraulic system, operation system. Sewage will be put into totally the sewage box during self-compress and self-dump.With one Bucket.The rear bucket can be according to your requests. |
Back flip form | Fully sealed |
