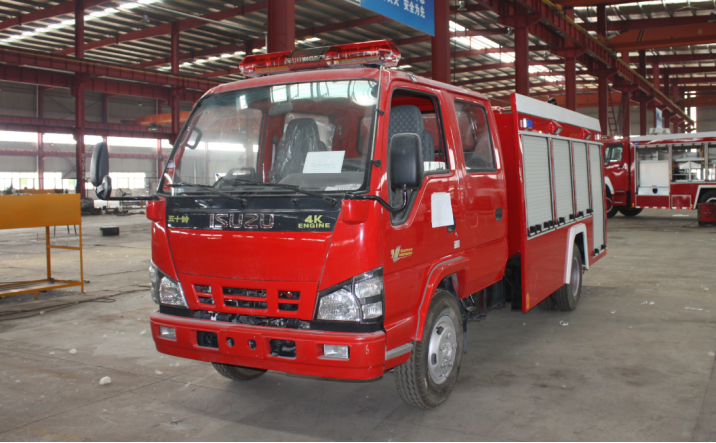

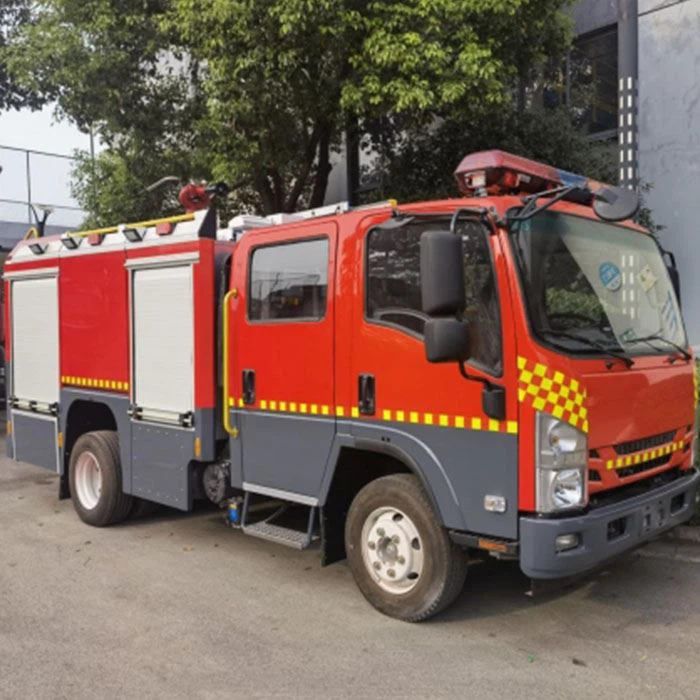

QINGLING 3000L Fire Fighting Truck

 Qingling fire fighting truck is adopted isuzu 600P chassis, equipped with a 3000L water tank as well as standard fire fighting equipments, such as fire extinguished equipment, forcible entry rescue tool and so on. The vehicle has crew cab and max 5 passengers inside. The body main structure is made by high quality steel and the equipment room is covered with shutter door and equips rescuer and personal protection device, which is based on the requirement.
Availability:
Quantity:
Inquire Add to Basket

Product Description

QINGLING 3000L Fire Fighting Truck



3000L



Specification

Name

Parameter

Overall Dimension

6390 x 1990 x 2910mm

Water Tank Capacity

3000L

Engine Output

130Hp

Emission

Euro V

Max Speed

100km/h

Front / Rear Axle Load

2.5T / 4.8T

Approach / Departure Angle

24 / 13

Allowable Cab Passengers

2+3

Ⅱ Chassis

1. Specification

Model

QL1070A5HWY

Manufacture

ISUZU

Engine Model

4KH1CN5HS

Engine Output

130Hp

Displacement

2999ml

Emission

Euro V

Wheel base

3360mm

GVW

7000kg

Max Speed

100km/h

Transmission Form

5 forward and 1 reverse

2. Driving Cab

Form

4 doors crew row

Passenger

2+3

Steering Wheel

Left Hand Drive

Equipment

1. Control box for alarm and alarm lamp
2. PTO switch and indicator
3. Additional power source and air course indicator
4. Jacklight and strong flashing light indicator


Ⅲ Body

1. Arrangement plan



2. Body

Equipment Room

Body is made by high quality steel with phosphate treatment. The inner plate and floor is made by anodized aluminum plate.

Equipment Rack

Aluminum alloy structure

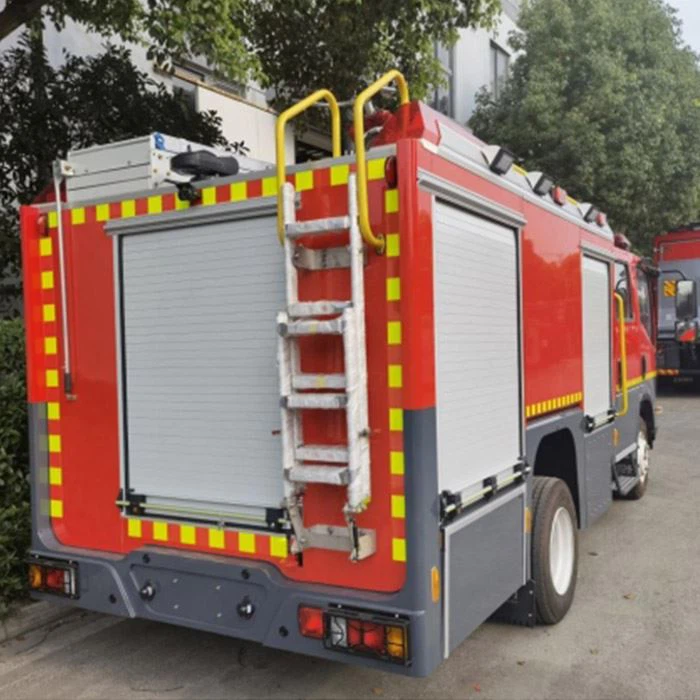

Ladder

on the backside body


3. Water Tank

Tank capacity

3000L

Material

Carbon steel, side 4mm bottom 4mm

Tank fixing

Fixed on chassis frame

Manhole

One manhole with a diameter of 500 mm, with quick locking/opening device


4. Fire Pump

Fire pump model

CB10/20

Water flow rate

20L/S, 1.0MPa

Maximum suction depth

7m

Diversion device

Self-contained slide pump

Priming time

Maximum depth of suction < 35s

5. Fire Monitor

Fire monitor model

PS20

Flow rate

20L/s, 1MPa

Covering range

water≥48m

Rotating Angle

360° Horizontal Rotation

Max. Pitch / dip angle

pitch angle≤-35°
dip angle≥+75°


6. Electric Device

Flashing light

RED-RED color

Lamp

1.boday lamp

2. LED on equipment rack

3.Jacklight on both side of body

Cab device

1. Long line alarm lamp on top of the cab

2. Electric alarm

7. Painting

Color:          Fire Red

Chassis:        Standard chassis color

Roller shutters:   remain unpainte

8. Documentation

Manuals:      Operation Manual in English
