Product Description

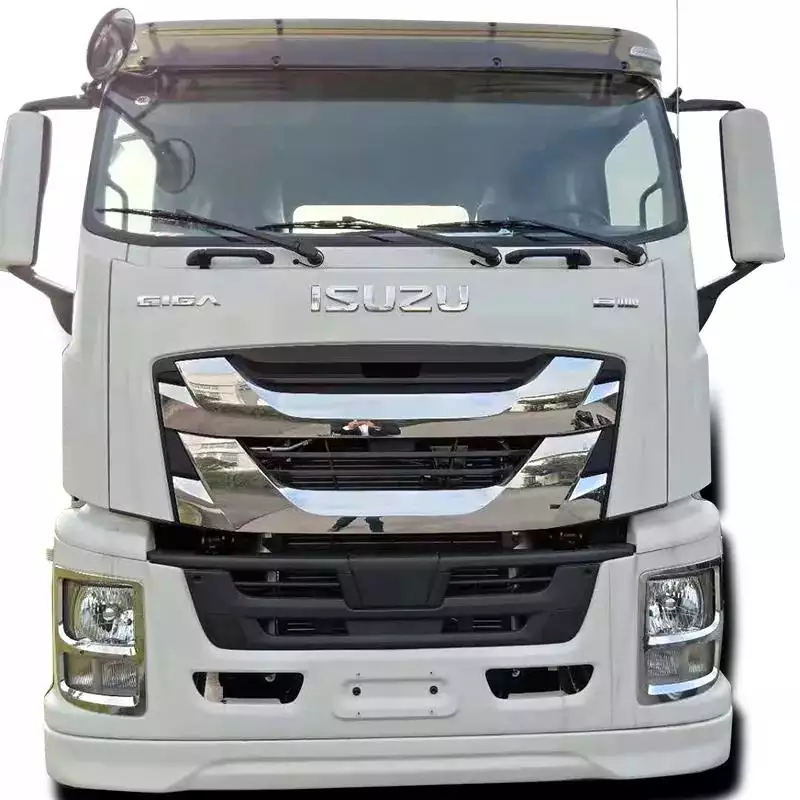

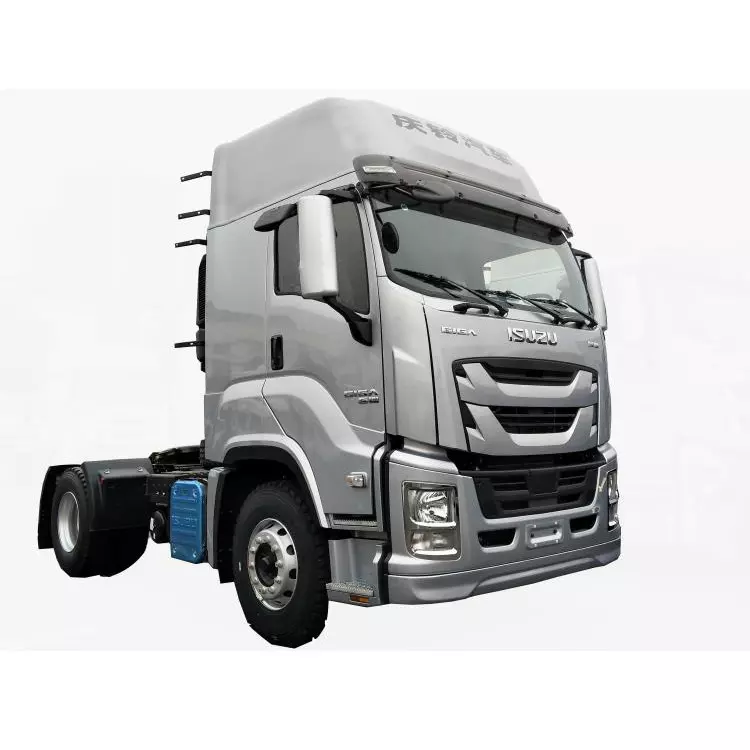

New ISUZU VC61 6x4 High Roof Tractor Truck (Euro V)
Qingling ISUZU GIGA New Generation Heavy Truck
Features: High end, intelligent, home-based and customized
It has high horsepower, automatic gear, disc brake, etc. to bring more value and meet more requirements of users.
Heavy Duty Truck：VC 61 Parameter Comparison 18T
Truck name | Tractor | Tractor | Tractor |
Truck No. | QL4180U2JDR | QL4180W1JDR | QL4180W2JDR |
Engine Model No. | 6UZ1TCG50 | 6WG1TCG52 | 6WG1TCG51 |
Fuel type | 0 # or - 10 # national V diesel (s content ≤ 10ppm) | ||
Displacement | 9839 | 15681 | 15681 |
Engine power | 279 | 309 | 338 |
Torque | 1765 | 2060 | 2060 |
Drive Speed Ratio | |||
Transmission Model | 16S2030TO | 16S2230TO | 16S2230TO |
Gross Mass(kg) | 18000 | 18000 | 18000 |
Curb Mass(kg) | 6980/6870 | 7250 | 7250 |
Load Mass(kg) | |||
Towering mass (kg) | 34890/35000 | 34620 | 34620 |
Wheel base(mm) | 3450 | 3450 | 3450 |
Cab type | Single row | Single row | Single row |
Passenger | 2 | 2 | 2 |
Overall dimension Length (mm) | 5790 | 5790 | 5790 |
Overall dimension Width (mm) | 2542 | 2540 | 2540 |
Overall dimension Height (mm) | 3720/3970 | 3720/3970(with dome) | 3720/3970(with dome) |
Front wheel track(mm) | 2065 | 2065 | 2065 |
Rear wheel track(mm) | 1875 | 1875 | 1875 |
Leaf spring | 4/4+3,7/10 | 4/4+3 | 4/4+3 |
Front suspension (mm) | 1370 | 1370 | 1370 |
Rear suspension (mm) | 970 | 970 | 970 |
Axle load(kg) | 7000/11000 | 6500/11500 | 6500/11500 |
Max. speed | 110 | ||
Heavy Duty Truck：VC 61 Parameter Comparison 25T
Truck name | Tractor | Tractor | Tractor |
Truck No. | QL4250U2NDZ | QL4250W1NDZ | QL4250W2NDM |
Engine Model No. | 6UZ1TCG50 | 6WG1TCG52 | 6WG1TCG51 |
Fuel type | 0 # or - 10 # national V diesel (s content ≤ 10ppm) | ||
Displacement | 9839 | 15681 | 15681 |
Engine power | 279 | 309 | 338 |
Torque | 1765 | 2060 | 2060 |
Drive Speed Ratio | |||
Transmission Model | 16S2030TO | 16S2230TO | 16S2230TO |
Gross Mass(kg) | 24900 | 24900 | 25000 |
Curb Mass(kg) | 8850/8350/8750 | 9100/8750 | 8670 |
Load Mass(kg) | |||
Towering mass (kg) | 39920/40000 | 39670/40000 | 37200 |
Wheel base(mm) | 3385+1370 | 3385+1370 | 3385+1370 |
Cab type | Single row | Single row | Single row |
Passenger | 2 | 2 | 2 |
Overall dimension Length (mm) | 6895 | 6895 | 6895 |
Overall dimension Width (mm) | 2540 | 2540 | 2540 |
Overall dimension Height (mm) | 3055/3305/3720/3970/3900 | )3720/3970(with dome) | 3970(with dome) |
Front wheel track(mm) | 2065 | 2065 | 2065 |
Rear wheel track(mm) | 1875/1875 | 1875 | 1875/1875 |
Leaf spring | 4/4, 7/10 | 4/4,7/10 | 7/-/- |
Front suspension (mm) | 1370 | 1370 | 1370 |
Rear suspension (mm) | 770 | 770 | 770 |
Axle load(kg) | 6900/18000 | 6900/18000 | 6500/111500/7000 |
Max. speed | 110 | 110 | 110 |
