Availability: | |
---|---|
Quantity: | |
Product Description

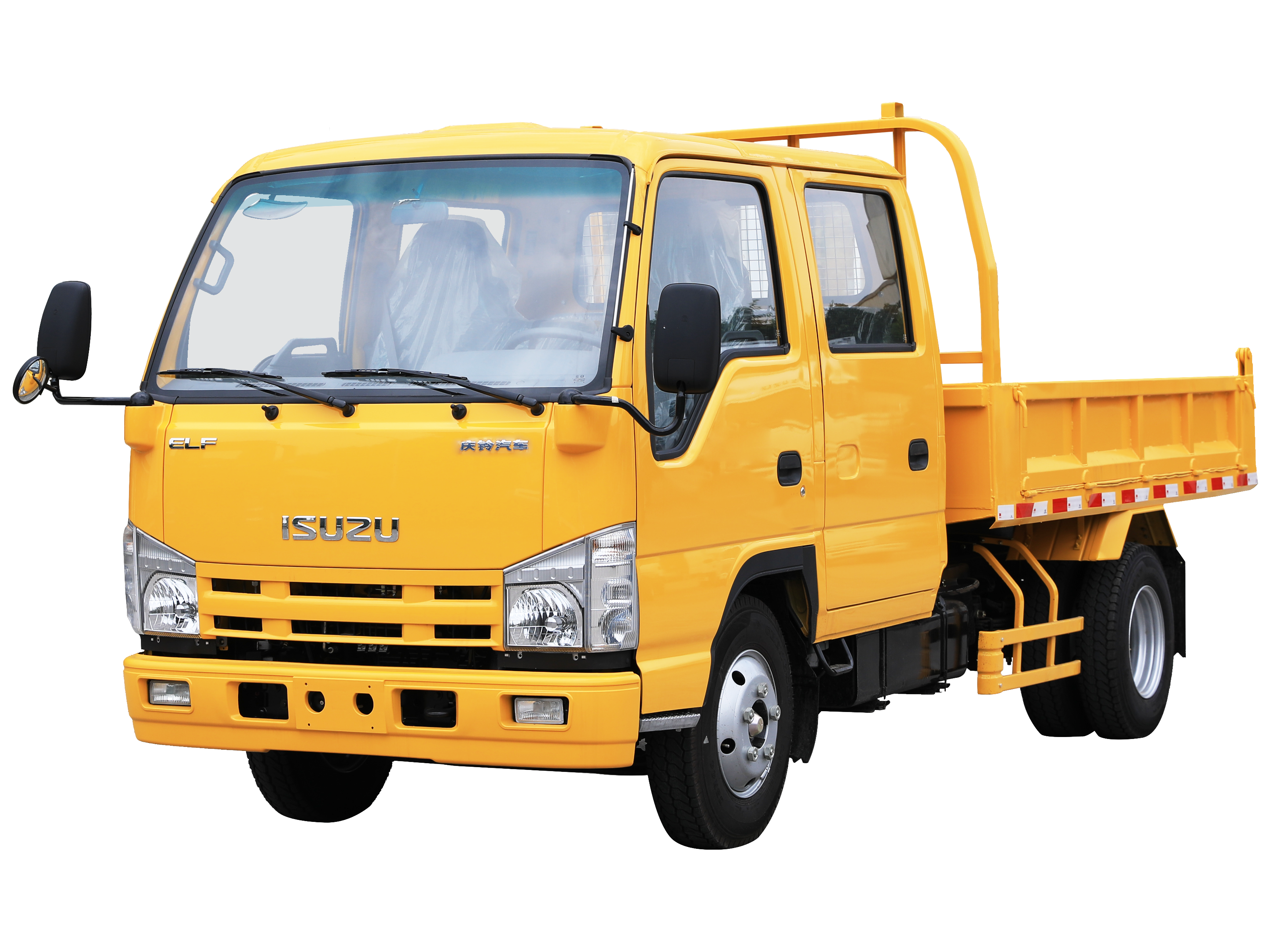

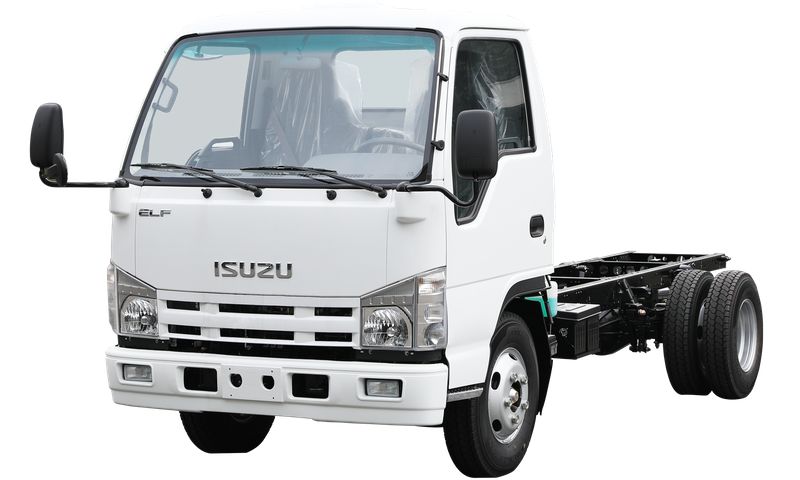

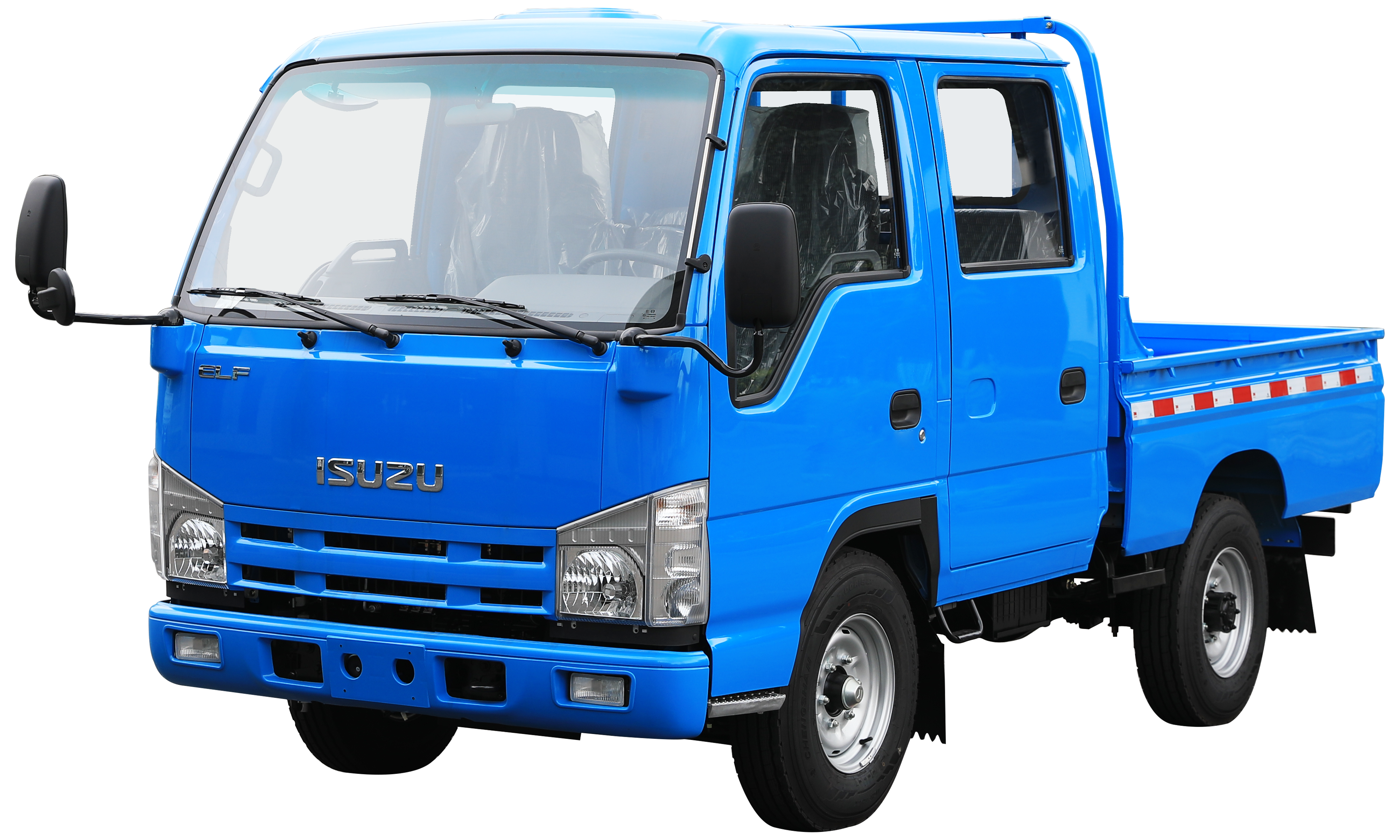

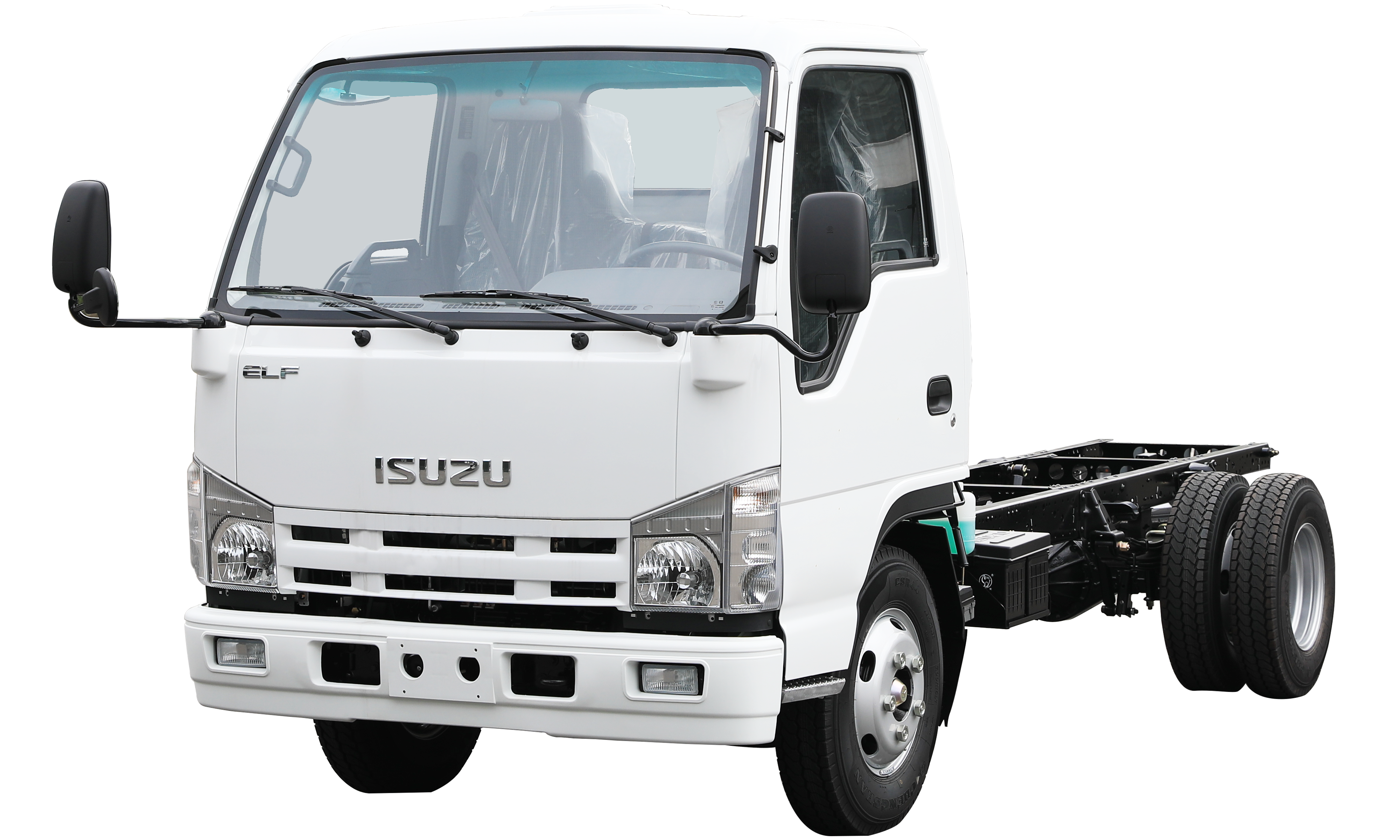

4x2 Isuzu 100P Mini Cargo Truck
Generally called a truck, it refers to a car mainly used to transport goods, and sometimes refers to a car that can tow other vehicles, belonging to the category of commercial vehicles. Generally, according to the weight of the car, it can be divided into two types: heavy and light. Most trucks are powered by diesel engines, but some light trucks use gasoline, LPG or natural gas.
Advantages:
• More environmentally friendly
Qingling Guo V products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.
• More economical (fuel saving and urea saving)
Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;
High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;
• High reliability and low maintenance cost.
• Stronger oil adaptability
Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.
• More cost-effective
• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.
Isuzu 100P Cargo Truck Specifications
Configure 1 | Configure 2 | Configure 3 | Configure 4 | |
Truck name | Cargo Truck | Cargo Truck | Cargo Truck | Cargo Truck |
Truck No. | QL1040A6EW | QL1070BUKA | QL1044AMHA | QL1040ALHW |
Engine Model No. | 4KH1CN5LS | 4KH1CN6LB | 4KH1CN5MD | 4KH1CN5HD |
Fuel type | 0 # or - 10 # national V diesel (s content ≤ 10ppm) | 0 # or - 10 # national V diesel (s content ≤ 10ppm) | 0 # or - 10 # national V diesel (s content ≤ 10ppm) | 0 # or - 10 # national V diesel (s content ≤ 10ppm) |
Displacement | 2999 | 2999 | 2999 | |
Engine power | 72
| 88 | 85 | 96 |
Torque | 220
| 290 | 277 | 290 |
Drive Speed Ratio | 5.375 | |||
Transmission Model | MSB-5S | MSB-5SM | ||
Gross Mass(kg) | 3660 | 7050 | 4495 | 4230 |
Curb Mass(kg) | 2090 | 2720 | 2550 | 2410 |
Load Mass(kg) | 4200 | 1495 | ||
Towering mass (kg) | ||||
Wheel base(mm) | 2490 | 3815 | 3360 | 3360 |
Cab type | Single row | One row and a sleeping berth | Double rows | |
Passenger | 2+3 | 2 | 3 | 2+3 |
Overall dimension Length (mm) | 4800 | 6745 | 5995 | 5950 |
Overall dimension Width (mm) | 1695 | 1880,2090 | 2160 | 1880 |
Overall dimension Height (mm) | 2160 | 2300 | 2350 | 2320 |
Container volume | ||||
Container internal dimension length (mm) | 2065 | 5050 | 4250/3870 | 3235 |
Container Internal dimension width (mm) | 1600 | 1790,1980 | 2050 | 1790 |
Container Internal dimension height (mm) | 415 | 380 | 380 | 380 |
Front wheel track(mm) | 1385 | 1504 | 1685 | 1377 |
Rear wheel track(mm) | 1395 | 1425,1525 | 1525 | 1425 |
Leaf spring | 8/6+5 | 3/3+2 | 3/3+2 | |
Front suspension (mm) | 1015 | 1110 | 1015 | |
Rear suspension (mm) | 1915 | 1525 | 1575 | |
Axle load(kg) | 1600/2060 | 2500/4550 | 1750/2745 | 1580/2650 |
Max. speed | 98 | 105 | 105 | 105 |
