ISUZU Van Cargo Truck NKR/KV100 4x2

Condition: New
Steering: Left
Horsepower: 130hp
Fuel Type: Diesel
Drive: 4x2
Emission Standard: Euro 5
Brand: Isuzu
Overall size: 5280×1880×2350mm
Capacity (load):  3-8 Ton

Availability:
Quantity:

Product Description

ISUZU NKR/600P 4x2 Dropside Truck 6 Wheels


Qingling Isuzu KV100 has a wider cab compared to 100P, and the front seats have been increased to 3.The transmission is Manual MSB-5MT, with 5 froward gear. This cargo body van truck is from China, and the engine is form Japan, the cargo body is made of Steel Corrugated(Optional:Aluminum), size is 4170×2050×2100(mm), can payload 4 tons.

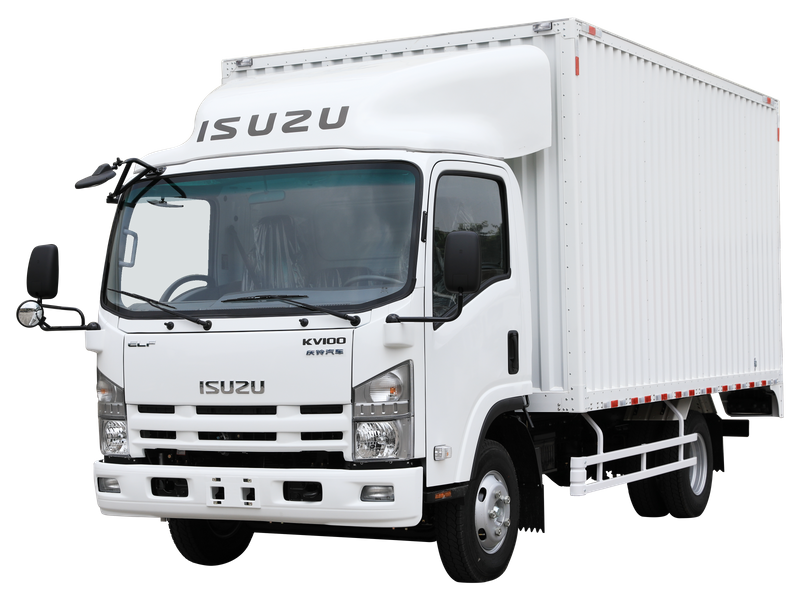

KV100_3


Cabin

The new N-series Light Duty Truck's new cabin model is adopted front headlight follow-up steering technology, new NKR cabin is more beautiful, comfortable and safe. Qingling Isuzu KV100 has a wider cab compared to 100P, and the front seats have been increased to 3.


Power

The new N-series Light Duty Truck is equipped with Isuzu's new 4KH1 engine. 4K engine is characterized by an output power of 130 horsepower, electronic injection, intercooled supercharging technology and a supercharger with cooling device.The ISUZU 4KH1CN engine has Supercharged inter cooling technology and SCR/PDF Post processing system. The engine has strong power, low fuel consumption, reliable and durable.



KV100_1


Advantages:


• More environmentally friendly

Qingling Guo V products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.


• More economical (fuel saving and urea saving)

Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;

High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;


• High reliability and low maintenance cost.


• Stronger oil adaptability

Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.


• More cost-effective

• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.



ISUZU KV100 Cargo Truck Specifications (Euro V/IV)


Vehicle Model:

QL5044XXYA6HA



 Parameters

Overall Dimension(L x W x H)

5995×2160×3100mm

Box Dimension(L x W x H)

4170×2050×2100mm

Box Material:

Steel / Aluminum

Wheelbase:

3360mm

Front/Rear Suspension:

1110/1525mm

Curb Weight:

2805kg

GVW:

7300kg

Engine

Engine Model:

4KH1CN5HD

Max output:

96Kw

Displacement:

2999ml

Horsepower:

130Ps

Exhaust Gas Treatment Technology:

DPF

Brake

Front Drum Back Drum


Transmission

Transmission:

MSB-5

Forward Gear:

5 Speed Gear

Backward Gear:

1 Speed Gear

Cabin

Number of Seats:

3

Chassis

Drive Type:

4x2


Tires:

7(Including Spare Tire)

Fuel Tank

Capacity:

100L




Configurations:

1

Power Steering System

2

Air Conditioning

3

Tubeless Tire

4

Cab Tilting Mechanism

5

ABS

6

Free Maintenance Battery

7

Retro-reflective Marking

8

Single Side Single Door for Box
