ISUZU VC66 6x4 Light Truck with 10 Ton Crane QL5350TZZW6TDZY

Condition: New
Steering: Left
Horsepower: 420ps
Fuel Type: Diesel
Drive: 4x2
Emission Standard: Euro 6
Brand: Isuzu
Overall size: 9840 x 2540 x 3010mm


Availability:
Quantity:
  • QL5350TZZW6TDZY

  • ISUZU

Product Description

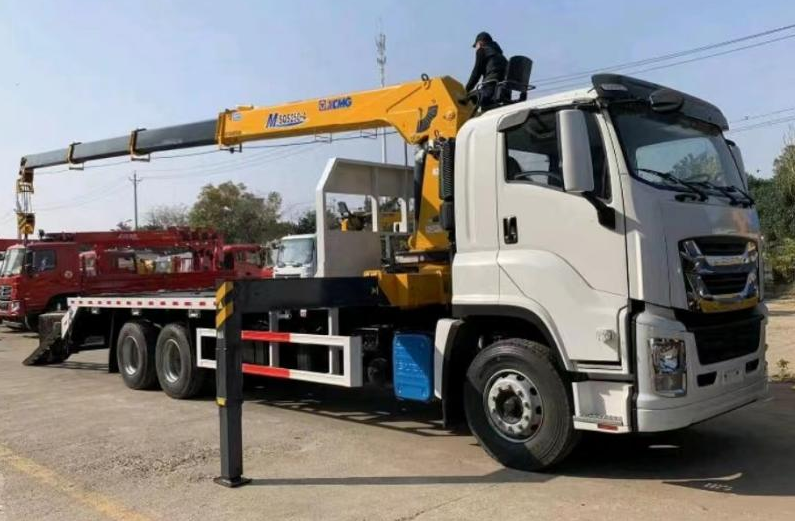

ISUZU VC66 6x4 Light Truck with 10 Ton Crane  QL5350TZZW6TDZY





Advantages:


• More environmentally friendly

Qingling Guo V products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.


• More economical (fuel saving and urea saving)

Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;

High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;


• High reliability and low maintenance cost.


• Stronger oil adaptability

Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.


• More cost-effective

• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.

图片2图片3


ISUZU VC66 6x4 Light Truck with 10 Ton Crane QL5350TZZW6TDZY   (Euro 5)





Model:

QL5350TZZW6TDZY

Drive:

6x4

Overall dimension:

L:9840 / W:2540 / H:3010

GVW:

35000 KG

Curb mass:

9700 KG

Wheelbase(mm):

5200+1370 mm

Engine Model:

6WG1-TCG60

Engine power:

308Kw/420PS

Fuel type:

Diesel

Emission:

Euro VI

Max. speed:


Tire:

385/65R22.5 20PR/315

Cab:

One row with a berth,

Low roof

Cab allowable passengers:

2

Other configurations:

ABS system

power steering

Reflective signage

air conditioning system

Maintenance-free battery

Cargo Body Parameter

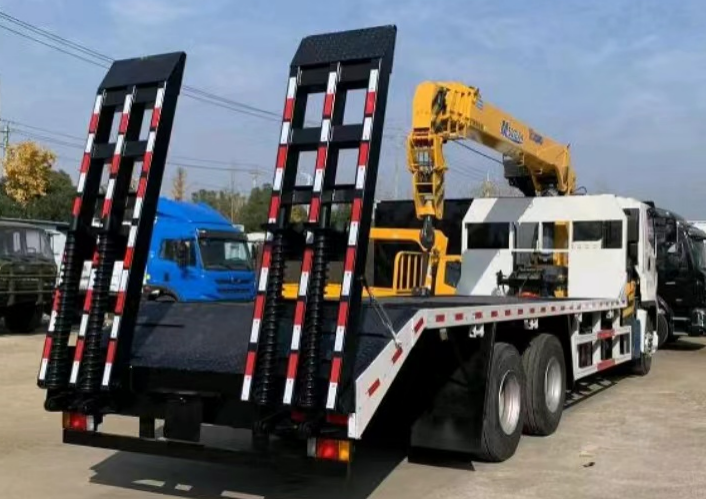

XCMG 10-ton four-section straight-arm crane with work basket, 7.4 meters flat plate with hydraulic ladder, width 2.5 meters, chassis 8mm pattern plate, ladder length 2.6 meters, width 65 centimeters


XCMG Crane parameters



1. 产品性能参数/Performance Parameters



Crane requirements

Type/Position

Straight arm/front


crane

XCMG brand with Model SQS250


Rotation angle

360°Full rotation

Sub frame

Material/plate thickness

Longitudinal beam: Q345/10mm

Cargo box

size

7400*2500mm

Max Lifting Capacity

KGS

10000

Max extension length

MM

12500

Max lifting height

MM

14000

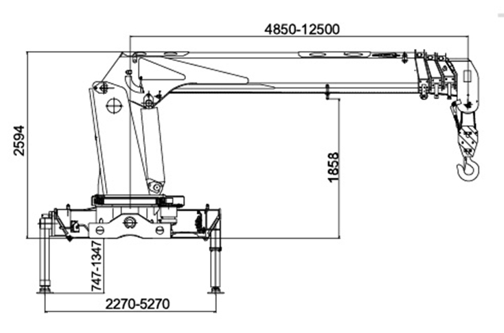

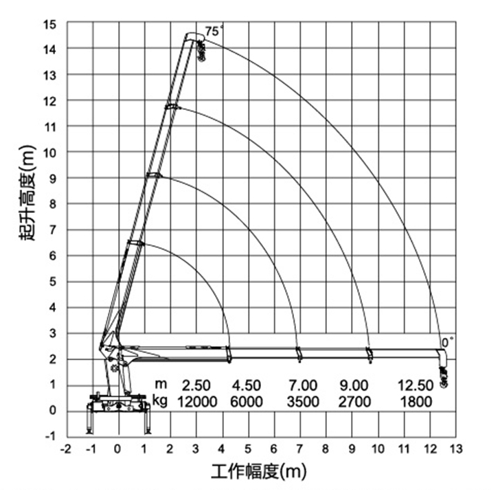

2. 四节起重机参数/4-stage crane parameters




图片4图片5
