ISUZU NKR/100P Small Steel Corrugated Van Truck

Condition: New
Steering: Left
Horsepower: 98hp
Fuel Type: Diesel
Drive: 4x2
Emission Standard: Euro 4
Brand: Isuzu
Overall size: 6790×1880×2900(mm)
Capacity (load):  3-8 Ton

Availability:
Quantity:

Product Description

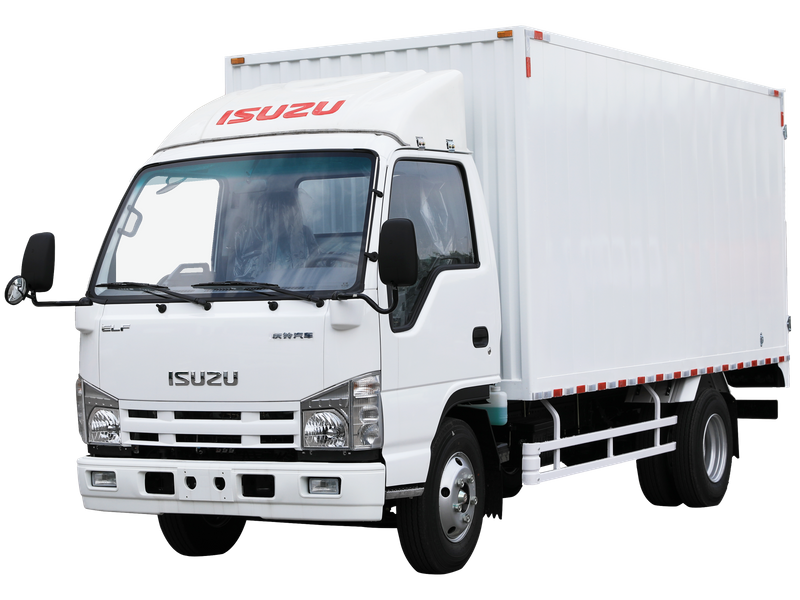

ISUZU NKR/100P Small Steel Corrugated Van Truck


Qingling Isuzu 100P Steel corrugated Van truck:   the engine is form Japan, the cargo body is made of Steel Corrugated, size is 5050×1784×1810(mm), can payload 4 tons.The transmission is Manual MSB-5MT, with 5 forward gear. If you want the quotation, please feel free to contact us.


100P_7


Advantages:


• More environmentally friendly

Qingling Guo V products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.


• More economical (fuel saving and urea saving)

Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;

High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;


• High reliability and low maintenance cost.


• Stronger oil adaptability

Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.


• More cost-effective

• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.

100P_2


ISUZU 100P 4x2 Van Truck Specifications (Euro IV )



Chassis Model:

QL5070XXY3KAR


Overall Dimension(L x   W x H)

6790×1880×2900(mm)


Box Dimension:

5050×1784×1810(mm)

Vehicle Parameters

Box Material:

Steel Corrugated


Curb Weight:

2900kg


GVW:

7030kg


Wheelbase:

3815mm


Drive Type:

4x2


Engine Model:

4JB1-CN

Engine

Engine Power:

72w


Displacement:

2771ml


Horsepower:

98Ps


Transmission:

Manual MSB-5MT

Transmission

Forward Gear:

5 Speed Gear


Backward Gear:

1 Speed Gear

Cab

Front Seat:

2


Front/ Rear Wheel   Distance:

1504/1425mm


Front/Rear Suspension

1015/1960mm

Chassis

Axle Loads:

2370/4660kg

Rear Axle Ratio:

5.375

Tires:

7(Including Spare   Tire)

Tire Model:

7.00R16 14PR


1

Power steering system

Standard Configuration:

2

Air Conditioning

3

Retro-reflective   Marking

4

Tubeless Tire

5

ABS

6

Free Maintenance   Battery

Optional   Configuration:

1

Cab metal paint

2

Air diversion device

3

Single side door/Double   side door

4

Speed limiting device   (80km/h)

5

Central lock

6

Electric doors and windows

7

Cab tilting mechanism
