QL4250W1NDZ
Product Description

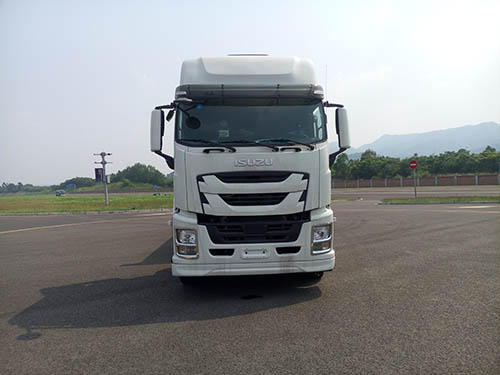

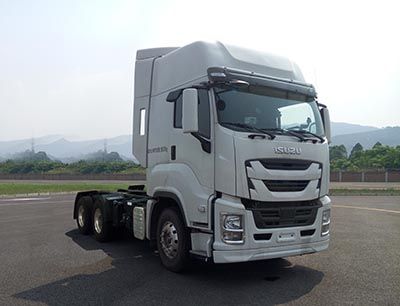

ISUZU GIGA VC61 420PS TRACTOR TRUCK(Deluxe Type)(Euro V)
Qingling ISUZU GIGA New Generation Heavy Truck
Features: High end, intelligent, home-based and customized
It has high horsepower, automatic gear, disc brake, etc. to bring more value and meet more requirements of users.
Heavy Duty Truck：VC 61 Parameter Comparison 25T
ISUZU TRACTOR TECHNICAL SPECIFICATION (6X4) ISUZU牵引车技术规格（6x4） | ||
Description 名称 | Tractor /牵引车 | |
| Model | QL4250W1NDZ | |
Wheelbase/轴距 | Drive/驱动 | 6X4 |
Size/尺寸 | 3385+1370 | |
Weight/重量 | Curb weight /整备质量 | 9100kg |
Gross weight/总质量 | 24900kg | |
Dimension/尺寸 | Lenght/长 | 6895mm |
Width/宽 | 2500mm | |
Height/高 | 3970mm | |
Max. speed /最大速度 | 110km/h | |
Min. turning radius /最小转弯半径 | 7.6m | |
Ground clearance /离地间隙 | 265 | |
Max. grade ability /最大爬坡度 | 35% | |
Overhang / 悬挂 | Front Overhang/ 前悬 | 1370mm |
Rear Overhang/后悬 | 770mm | |
Engine/发动机 | Model /型号 | ISUZU 6WG1-TCG52-420PS (Euro V) |
Power /功率 | 309kw | |
Gearbox/变速箱 | Brand Model/品牌 | ZF16档（model/型号16S2230TO） |
Ratio/速比 | 13.8-0.84 | |
PTO /取力器 | No /无 | |
Front axle/前轴 | ISUZU QL-F075 (7.5t) I-shape cross section, air drum brake with ABS ISUZU QL-F075 (7.5吨)工字型断面,端拳式,鼓式制动带ABS | |
Rear axle/后桥 | ISUZU RT-210 (13t x 2)integral axle, air drum brake with ABS ratio: 3.909 ISUZU RT-210 (13吨*2)整体式鼓式制动带ABS, 主减速比3.909 | |
Front suspension/前悬 | 7 leaf springs 多片簧,前7片钢板弹簧 | |
Rear suspension/后悬 | 10 leaf springs 多片簧,后10片钢板弹簧 | |
Cab/驾驶室 | GIGA VC61 Luxury high roof cab, air suspension, curved surface covering, cab face with chrome, left right angle plates and head-light border with chrome | |
Tire/轮胎 | 12R22.5 | |
Clutch/离合器 | 430mm single plate spiral spring type 430mm膜片弹簧离合器 | |
Fuel tank/油箱 | 600L aluminum fuel tank 600L铝制油箱 | |
Saddle/鞍座 | JOST 50# | |
Fairing/整流罩 | 有 Yes | |
Seat/座椅 | air suspension driver seat, mechanical passenger seat (Integrated fabric) 司机气悬座椅,乘客座椅机械式(一体式普通面料) | |
Air-condition/空调 | electronic control air-condition/电控空调 | |
Window lifter/开窗器 | electronic window lifter (Left/Right) 左右电动窗 | |
Cab suspension/驾驶室悬挂 | electric flip, pneumatic suspension, central lock 电动翻转,空气悬挂,中控锁 | |
A/V system /影音系统 | radio/收音机 | |
