QL5180XXYXRFRY
ISUZU
Product Description

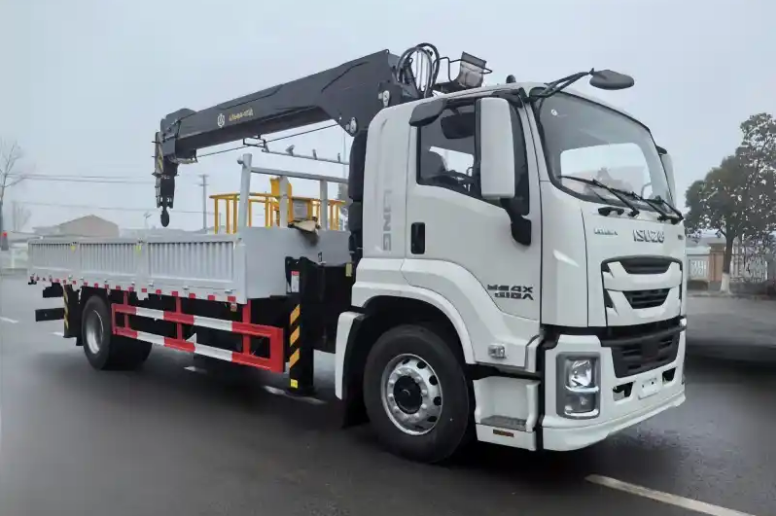

ISUZU 4X2 TRUCK WITH 5 TON CRANE QL1180EQFRY
Advantages:
• More environmentally friendly
Qingling Guo V products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.
• More economical (fuel saving and urea saving)
Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;
High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;
• High reliability and low maintenance cost.
• Stronger oil adaptability
Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.
• More cost-effective
• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.
ISUZU 4x2 FVR Truck with 10 Ton Crane QL1180EQFRY（Euro 6）
Model： | QL1180EQFRY |
Drive： | 4×2 |
Overall dimension： | L:9000 / W:2500 / H:3660 |
| Internal dimensions of cargo compartment railing(mm)： | L:6000/ W:2450 / H:600 |
GVW： | 18000KG |
Curb mass： | 6300KG |
Wheelbase(mm)： | 5500 mm |
Engine Model： | 4HK1-TCG61 |
Engine power： | 175Kw/240PS |
Fuel type： | Diesel |
Emission： | Euro VI |
Max. speed： | |
Tire： | 295/80R22.5 16PR |
Cab： | One row with a berth， Standard roof |
Cab allowable passengers： | 2 |
Other configurations： | ABS system Power steering Reflective signage Air conditioning system Maintenance-free battery |
Cargo Body Parameter | 4 Stages Cargo box size:6000x2450x600mm |

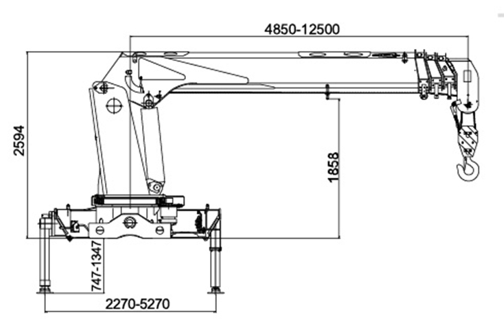

XCMG Crane parameters
1. 产品性能参数/Performance Parameters
Crane requirements | Type/Position | Straight arm/front |
crane | XCMG brand with Model SQS250 | |
Rotation angle | 360°Full rotation | |
Sub frame | Material/plate thickness | Longitudinal beam: Q345/10mm |
Cargo box | size | 6000*2450*600mm |
Max Lifting Capacity | KGS | 10000 |
Max extension length | MM | 12500 |
Max lifting height | MM | 14000 |

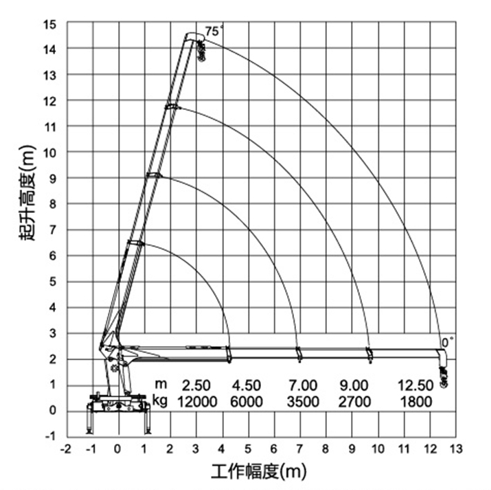

2. 四节起重机参数/4-stage crane parameters
