5 Ton SHACMAN X9（4x2） Refrigerated Truck SX5103E1Y13B3810 with Independent Cooler

Condition: New
Steering: Left
Horsepower: 130hp
Fuel Type: Diesel
Drive: 4x2
Emission Standard: Euro 2
Brand: Shacman
Overall size: 7100×2300×3500mm
Max. Speed: 95km/h

Availability:
Quantity:
Inquire Add to Basket

  • Shacman

Product Description

5 Ton SHACMAN X9（4x2） Refrigerated Truck

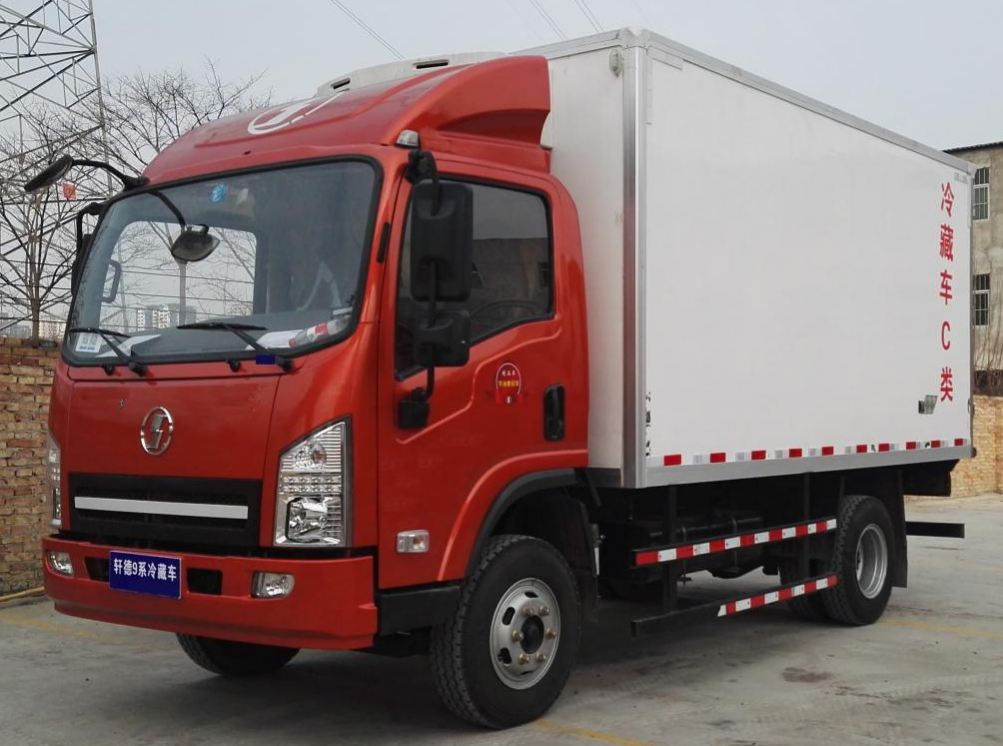

shacman truck

This picture is just for reference图片仅供参考


Main Specifications主要参数

MODEL/车型

SX1103E1Y13B3810

Steering place/驾驶员位置

Left hand drive左舵

Driving type/驱动形式

4×2

Max.Weight/最大总质量（kg）

10000kg（technology）

Curb weight/整备质量（kg）

5000kg

Overall Dimension/整车尺寸mm(LxWxH)

7100×2300×3500

Wheelbase/轴距(mm)

3800

Max. Speed/最高车速(km/h)

95km/h

Max. Grade ability/最大爬坡度(%)

29


Engine/

发动机

Brand/品牌

 YUCHAI/玉柴

Model/型号

YC4D130-33

Emission Standard/排放

EURO II/欧二

Rated output power功率

130HP

Rated speed/

额定转速（r/min）

2800rpm

Max.Torque/

最大扭矩转速

380N.m/ 1400-1700rpm

Displacement(L)/排量

4.21L

Transmission/变速箱

Brand/品牌

FAST/法士特

Model/型号

6DS50T-D

Front axle/

前轴

Brand/品牌

国产品牌/Domestic brand

Model/型号

1068/2.5T

Rear axle/

后桥

Brand/品牌

国产品牌/Domestic brand

Model/型号

1068/5T single reduce axle，ratio 5.375

5吨 单级减速驱动桥,速比 5.375

Clutch/离合器

Clutch power assistance离合器助力

Steering/转向机

  Domestic technology/ 国内技术

Frame/车架(mm)

800×(192-132)/6＋4单层

Suspension/悬架

前7后3＋10

Fuel tank/燃油箱

120L  fuel tank  aluminum/120L油箱  铝合金

Wheels and tires/轮胎

7.50R16/14PR （6+1）

Brakes/制动

Running brake: Dual circuit compressed air brake/行车制动

Parking brake: Air discharging with spring control/停车制动

Auxiliary brake: Engine exhaust brake/发动机排气辅助制动

Cabin/驾驶室

Fixed mechanical suspension, mechanical seat, air conditioning, electric doors and Windows, safety belt lock alarm, headlight adjustment, with flow around cover，with SHACMAN mark;

固定式机械悬置、机械式座椅、空调、电动门窗、安全带锁扣报警、大灯调节、带绕流罩，带SHACMAN标识；

Others/其他

1.排辅制动，断气刹/Exhaust auxiliary brake, exhaust brake.

2.100Ah免维护蓄电池,贴附式空滤（横置）/100Ah maintenance-free battery, attached single-stage air filter.

3.前后拖钩、带备胎/ front and rear towing hook, spare tire.

Carriage internal dimensions(mm)货厢内尺寸=长*宽*高

内尺寸5000×2100×2100mm，底厚100mm，围板80mm;开利S550独立制冷机；全塑全封闭复合厢板结构；优质加厚铝合金型材包边、优质304不锈钢后门框；优质304不锈钢门锁、LED顶灯、防水开关；EPDM多爪密封条、不锈钢上车把手；底板优质铝花纹板，后门对开无侧门,可外接电源制冷

Internal dimension 5000×2100×2100mm, bottom thickness 100mm, and shroud 80mm; Carrier S550 independent refrigerator; Fully plastic and fully closed composite panel structure; High quality thickened aluminum alloy profile edging, high quality 304 stainless steel rear door frame; High quality 304 stainless steel door lock, LED ceiling light, waterproof switch; EPDM multi-jaw sealing strip, stainless steel upper handle; High quality aluminum checkered plate on the bottom plate; Rear double door without side door; available for outsourcing power connector
