Shacman L3000 Trucks Series

Transmission Type: Manual
Power: Diesel
Load Capacity: 4×2：12t≤GVW≤25t, 6×4：20t≤GVW≤35t
Emission Standard: Euro 5
Drive Wheel:  4X2    6×4
Engine Capacity: ＞8L
Availability:
Quantity:
Inquire Add to Basket

Product Description

SHACMAN L3000 Trucks
Product Description

L3000 product is a medium and short distance transport vehicle. Its engine is matched with Weichai and Dongkang brands. Its horsepower is 180~245 horsepower. Euro 2, Euro 3 and Euro 5 emissions can be met. Both left and right helmets are optional. The main models are trucks, special vehicles and dump trucks.

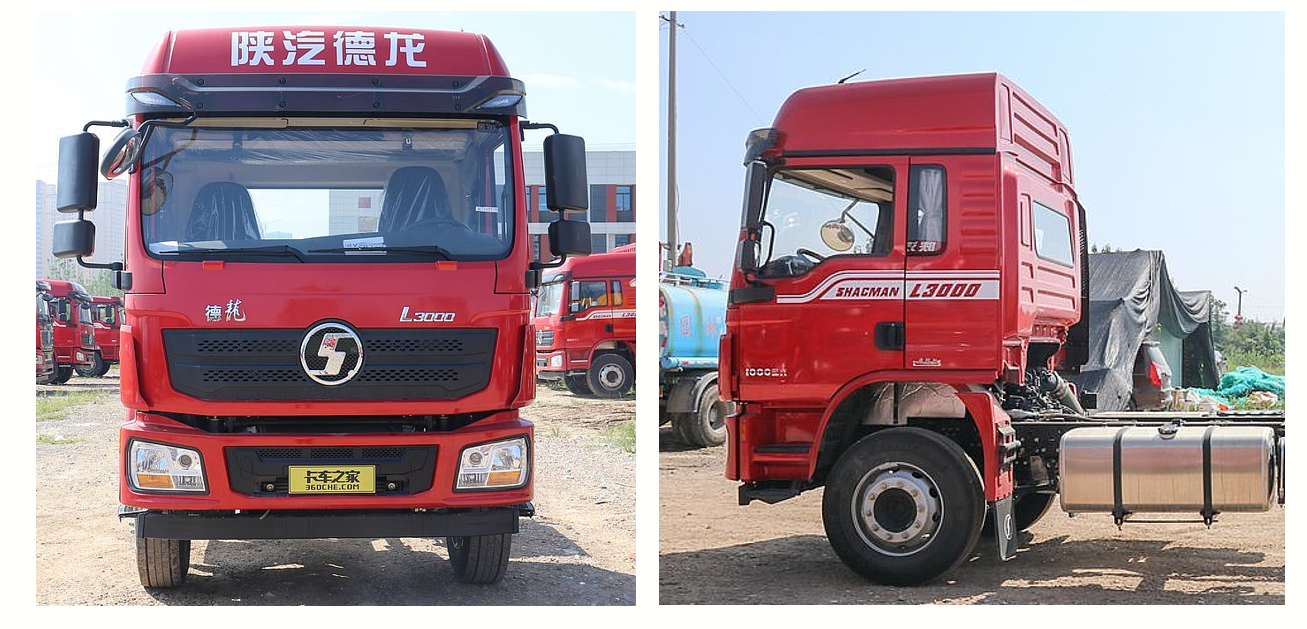

L3000
Truck Types

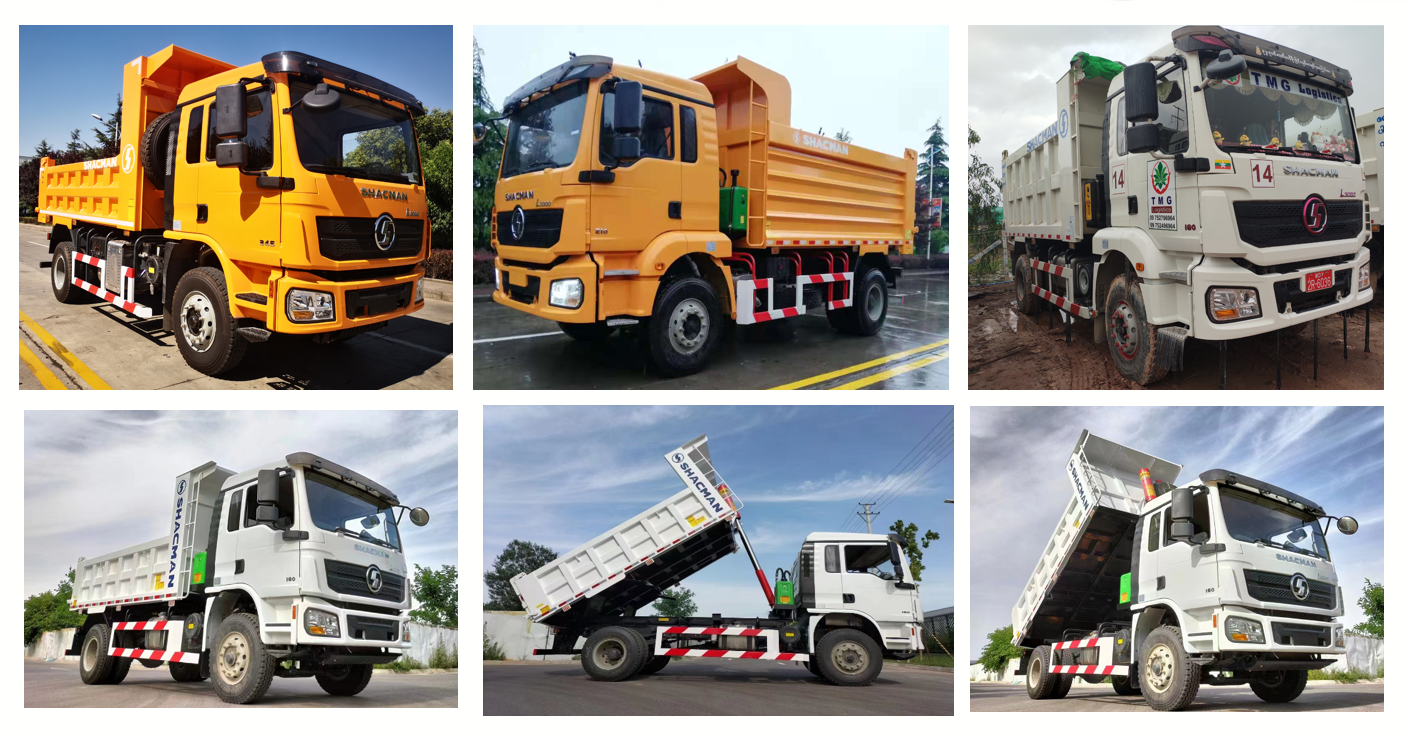

L3000 dump truck


                                                                                                    Dump Trucks

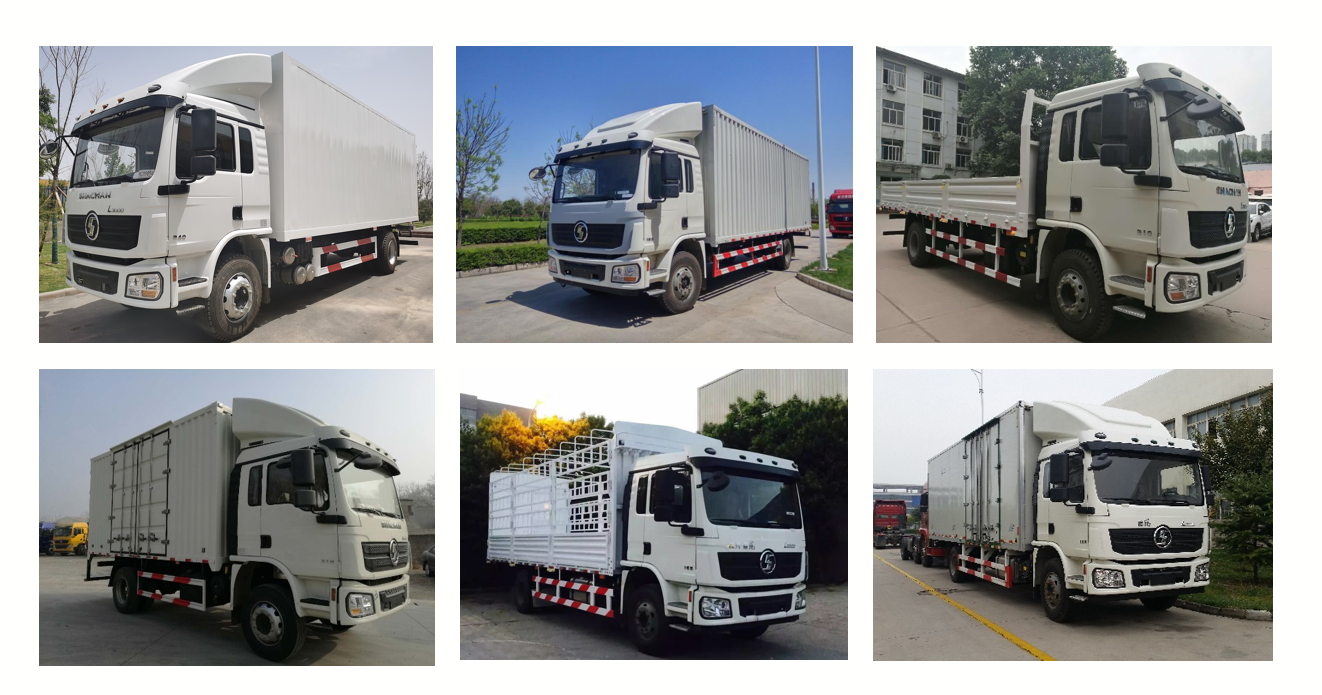

L3000 cargo truck

                                                                                                                Logistic Trucks


L3000 tank truckTank Truck

L3000 craneTruck with Crane


L3000 refuse truck

   Compressed garbage truck




Parameter for Dump Truck:


Name
Dump truck/Dumper truck(4*2)

3000
Max weight
≤20T
Max speed
80 Km/h
Frame
850×300(8+7)
Drive Type
4×2
Model
SX3185MK381
Engine
WP6.240E32
Horsepower
240
Emission Standard
Euro II
Transmission
8JS118+QH50
Transmission Shaft Operation
Telescopic Shaft
Clutch
430
Drive Axle
13T MAN Double Reduction 5.262
MAN 7.5T front axle
MAN 7.5T
Wheelbase
3800
Rear chassis Over Hang
1200
Fuel
Diesel
Suspension
Multi leaf springs
Capacity Of the Fuel Tank
400L(Aluminum)
Tires
11.00R20
Container Dimensions (L x W x H)(mm)
4000×2300×1100
Cab
Air Driver'S Seat
