Shacman
Product Description

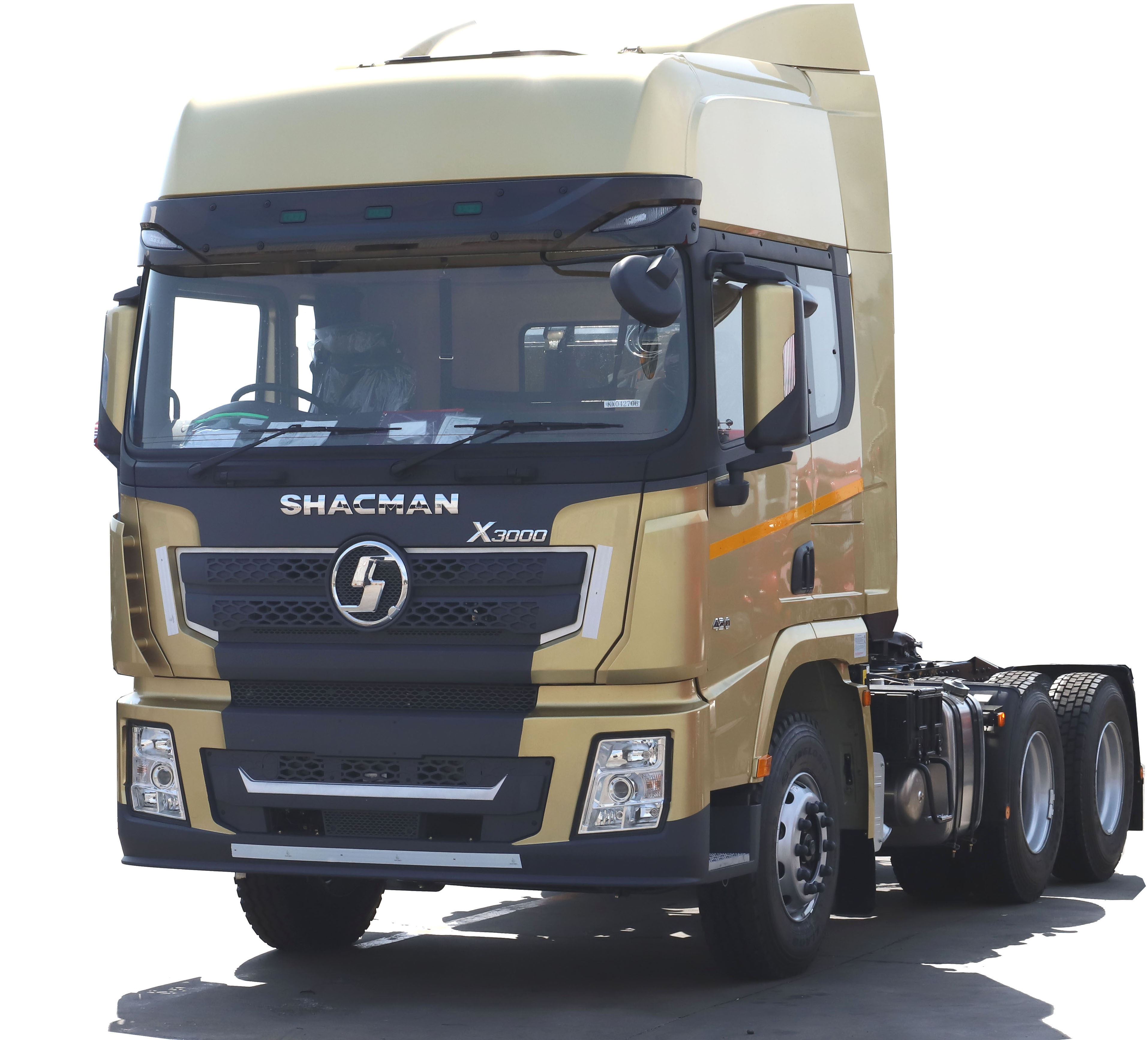

SHACMAN X3000 Extended High Roof Cab 6X4 Tractor Truck
Main Specifications:
MODEL |
SX42554V324CR |
Steering type |
Right |
Driving type |
6x4 |
GVW（kg） |
50000 |
| Curb Weight(kg) | 9200 |
Wheelbase(mm) |
3175+1400 |
| Overall dimension(mm) (include dome height) |
7100*2550*4000 |
Front and rear turning radius of semi trailer |
2100/2200 mm |
Approach angle/ departure angle |
20°/44° |
Engine |
Commins ISME 420 30/ 420PS |
| Transmission | FAST FULLER technology 12JSD200T-B Aluminum housing 12 gear |
Clutch |
Ø430 diaphragm clutch |
| Front Axle | 7.5 Ton MAN |
Rear axle |
MAN |
13T single reduction rear axle (speed ratio 3.7) |
|
Cab |
X3000 lengthened high roof cab, widened double sleeper, with air conditioning |
Steering |
ZF technology domestic right steering gear |
Frame(mm) |
Light-weight variable cross-section frame (940-850) × 300 (single 8) |
Suspension |
Front and rear few spring leaf |
Fuel tank |
(700L+230L) aluminum alloy fuel tank - with tank cover anti-theft |
| Air filter | Fleetguard air filter |
| Cooler system | F3000 cooler system |
Wheels and tires |
12R22.5 Vacuum tire 11 pcs( 1 spare tire) |
| Saddle |
JOST 90 # (Corrugated saddle mounting plate) |
| Height of saddle from ground | 1310±30mm |
| Bumper |
Highway bumper |
| Other configurations | 1. With top side deflector 2. With air conditioner 3. Widen double berth 4. Power windows 5. Cab four-point airbag suspension 6. Driver's airbag seat 7. Radio (with MP3 music playback interface) 8. Electric+hydraulic cab rear turning 9. Central control door lock 10. Electrically adjust the rearview mirror 11. JACOB auxiliary brake 12. WABCO valves 13. 180Ah maintenance-free battery 14. Aluminum alloy gas reservoir |
