QL1180EQFRY
ISUZU
Product Description

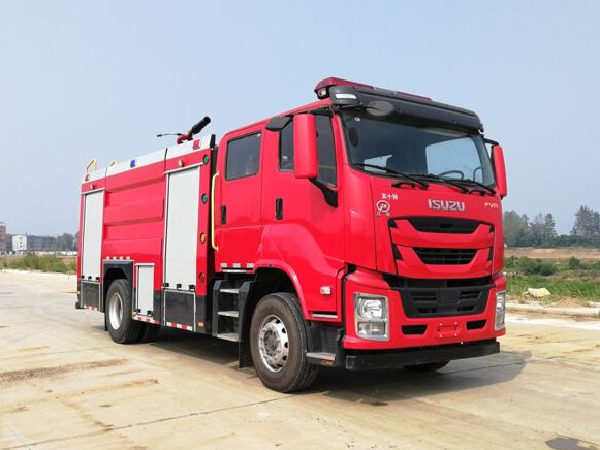

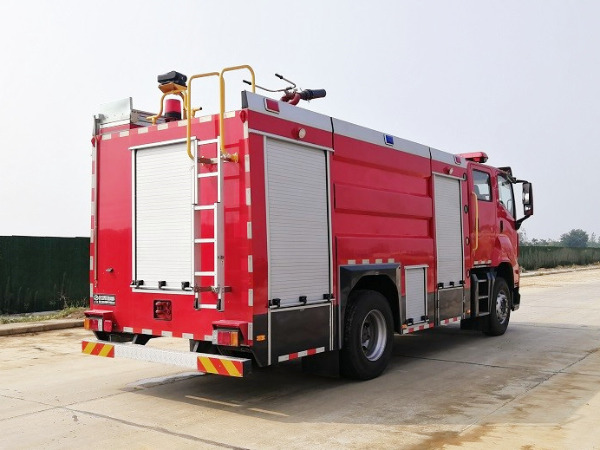

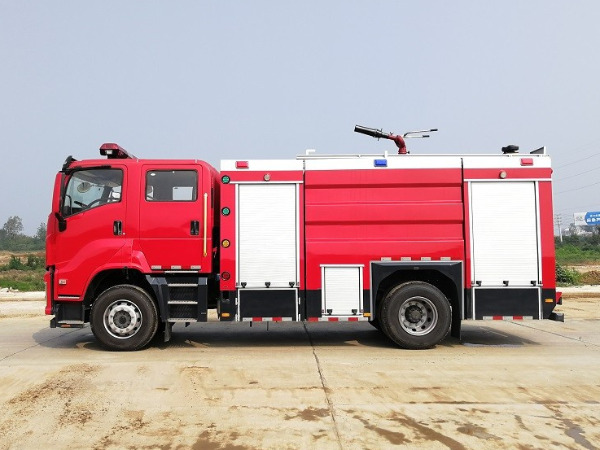

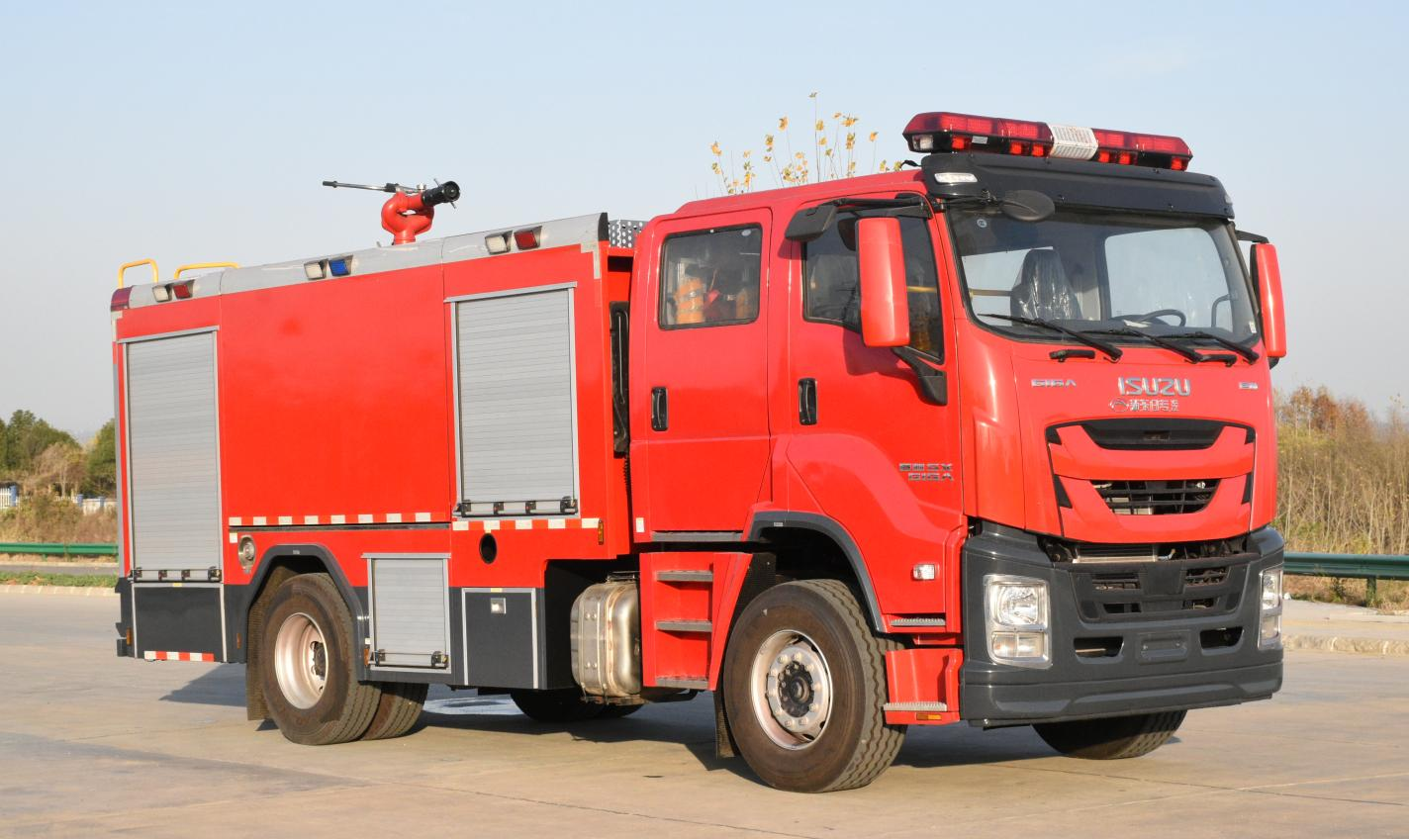

QingLing ISUZU VC61 4x2 Fire Truck (Euro VI)
Qingling ISUZU Giga New Generation Heavy Truck
Features: High end, intelligent, home-based and customized
It has high horsepower, automatic gear, disc brake, etc. to bring more value and meet more requirements of users.
(Fire truck exported to Nigeria )
Heavy Duty Truck：VC61 Fire truck Parameter Comparison 18T
Vehicle size (mm) | 8770×2550×3420 | |
Total mass(kg) | 18000 | |
Rated quality (kg) | 13750 | |
Chassis Model | QL1180EQFRY | |
Cab | Crew | 6 |
Type | VC61; 2 rows,4 door | |
Air conditioning | Heating and cooling | |
Direction assistance | Exist | |
Central lock | Exist | |
steering wheel | Multifunction steering wheel | |
dash board | Multifunctional LCD instrument panel | |
Doors and windows | Electric doors and windows | |
Frame | Frame section:172×65×4+3mm | |
Front axle (T) | 6.3T | |
Rear axle (T) | 15T | |
Wheel base (mm) | 4500 | |
Axle number | 2 | |
Wheel | 295/80R22.5 16PR (6set) | |
Engine | Model | ISUZU 6HK1-TCG61, Diesel,6-cylinder |
Power | 177KW/240HP | |
Displacement | 7790ml | |
Torque (N.m) | 860 | |
Gearbox | Fast,8 forward,1 reverse | |
Brake assembly | Air brake | |
Top speed | 105km/h | |
Fuel tank | 200L | |
Vehicle Special Parts Configuration | ||
Tank capacity | 6000-7000L,Q235 Carbon Steel | |
Fire Monitor | Model | Chengdu West Model: SP40 |
Range | ≥65m 1.0Mpa | |
Flow | 40L/S | |
Other | -30°～+70°；0～360° | |
Fire pump | Model | CB10/40-RS |
Pressure | 1.0MPa | |
Flow | 40L/S | |
Diversion | ≤35S | |
suction depth | 7m | |
Shaft power | 68.2KW | |
