Qingling Isuzu (4x2) 600P Truck Chassis QL1070A1HAY

Condition: New
Steering: Left
Horsepower: 120hp
Fuel Type: Diesel
Drive: 4x2
Emission Standard: Euro VI
Overall dimension：5900x1800x2160mm


Availability:
Quantity:
Inquire Add to Basket

  • QL1070A1HAY

Product Description

Qingling Isuzu (4x2) 600P Truck Chassis  QL1070A1HAY

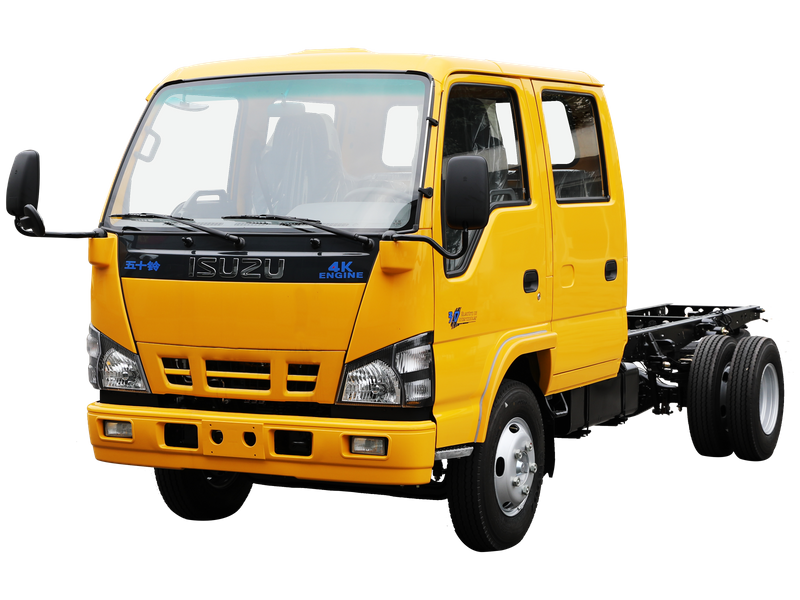

600P_4

Main Specifications:

Model QL1070A1HAY
Driving type 4×2
Overall dimension (mm) 5900x1800x2160mm
Container dimension (mm) 4250x1850x1810
Displacement（ml） 2999
GVW(KG) 7300
Curb weight(KG) 1900
Rated weight(KG)
Wheelbase(mm) 3360
Engine Model 4KH1-TCG40
Engine Power 88kW/120PS
Transmission MSB-5SM
Emission Euro IV
Front wheel track (mm) 1504
Rear wheel track(mm) 1525
Axle load（KG） 1710/2620
Rear axle speed ratio
Max. Speed(km/h) 105
Front/rear suspension（mm） 1015/1525 mm
Tire 7.00-1614PR,7.00R1614PR
Cabin Single row
Other configurations ABS
Electric window
power steering
Reflective signage
air conditioning system
Maintenance-free battery
Cruise control
