Product Description
Qingling ISUZU Wrecker Truck KV800 4x2 (EURO VI)
Advantages:
• More environmentally friendly
Qingling Guo VI products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.
• More economical (fuel saving and urea saving)
Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;
High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;
• High reliability and low maintenance cost.
• Stronger oil adaptability
Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.
• More cost-effective
• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.
Qingling ISUZU Wrecker Truck KV800 4x2 (EURO VI)
Model： | QL1110ANMAY |
Drive： | 4×2 |
Chassis dimension： | L:7830 / W:2170/ H:2330 |
GVW： | 10550 KG |
Curb mass： | 3150 KG |
Wheelbase(mm)： | 44755 mm |
Engine Model： | 4JZ1-TCG62 |
Engine power： | 133kW/180PS |
Fuel type： | Diesel |
Emission： | Euro VI |
Max. speed： | |
Tire： | 8.25R16 |
Cab： | Single row |
Displacement/排量: | 2.999L |
Cab allowable passengers： | 3人 |
Front wheel track /前轮距： | 1680 mm |
Rear wheel track/后轮距： | 1650 mm |
Other configurations： | ABS system/ABS系统 power steering/动力转向 Reflective signage/反光标识 air conditioning system/空调系统 Maintenance-free battery/免维护蓄电池 |
Upper body technical Specification
| Upper body configuration | Sliding structure | Flat vehicle-carrying platform, sliding type (2 hydraulic operated). |
| Flat plaform will be push/ pull on floor. Include the conveyor belt for equipments moving. | ||
| Dimensions (L × W) | 5200 / (6000) x 2170 mm | |
| (Two-section folding platform; when extended, the total length reaches 6 m. When not in use, folds upward). | ||
| Platform construction | Made of high-strength steel, 3 mm thick; punched with diamond-shaped holes to increase rigidity, reduce weight, and improve friction for vehicles parked on the platform. | |
| Border wings | Include brand logo (with laser cutting). | |
| Signal label | 3M signal label. | |
| Subframe | Made of formed steel, thickness 3–8 mm | |
| Quantity | 01 set | |
| Location | Mounted on the vehicle platform, at the front end (near the cabin) | |
| Maximum pulling force | 5000kg (Nameplate by English only) | |
| Winch cable | Ф10.2 mm x 20 m | |
| Winch accessories | Winch brake, winch hook, and other safety devices for the winch | |

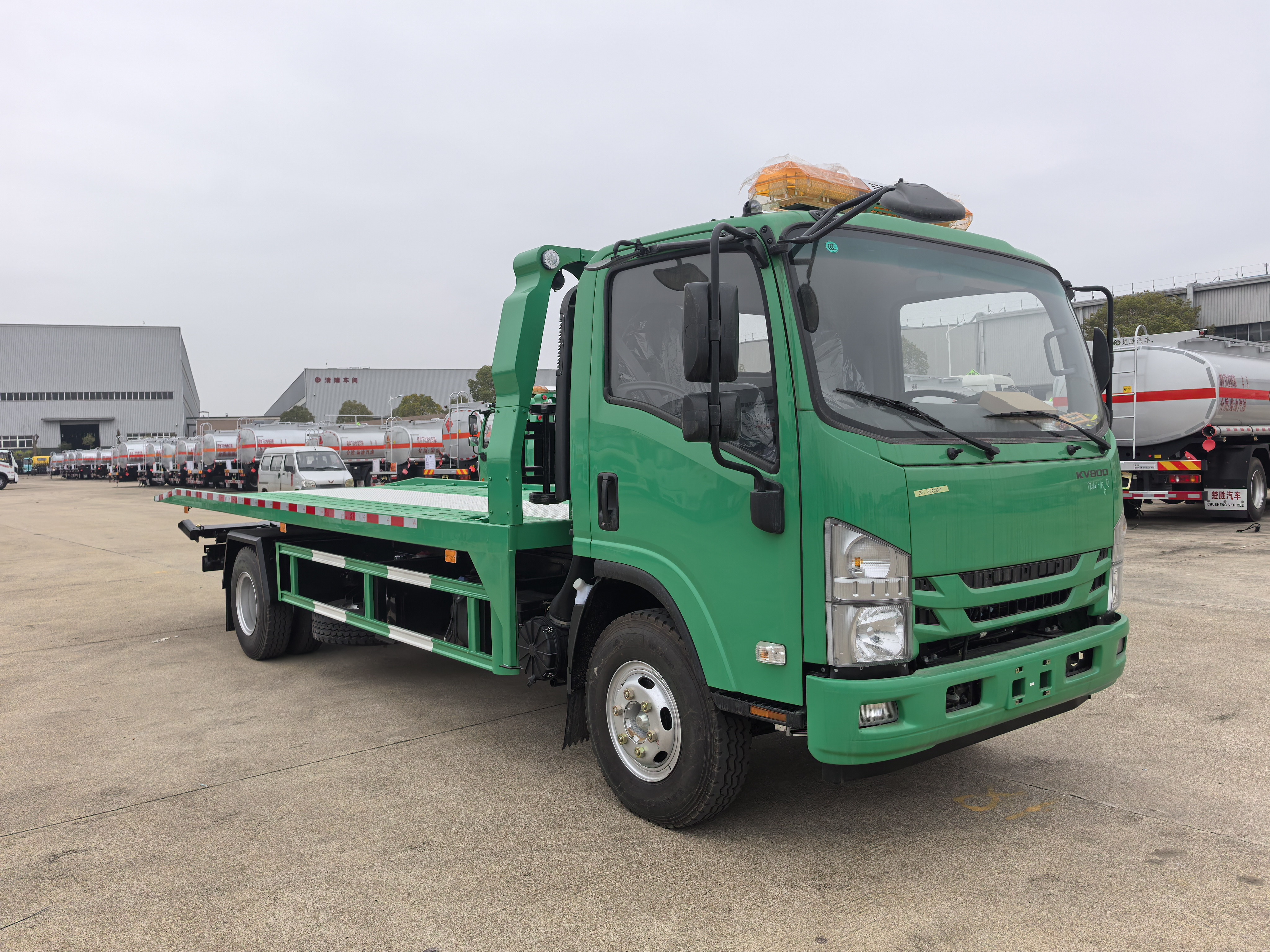

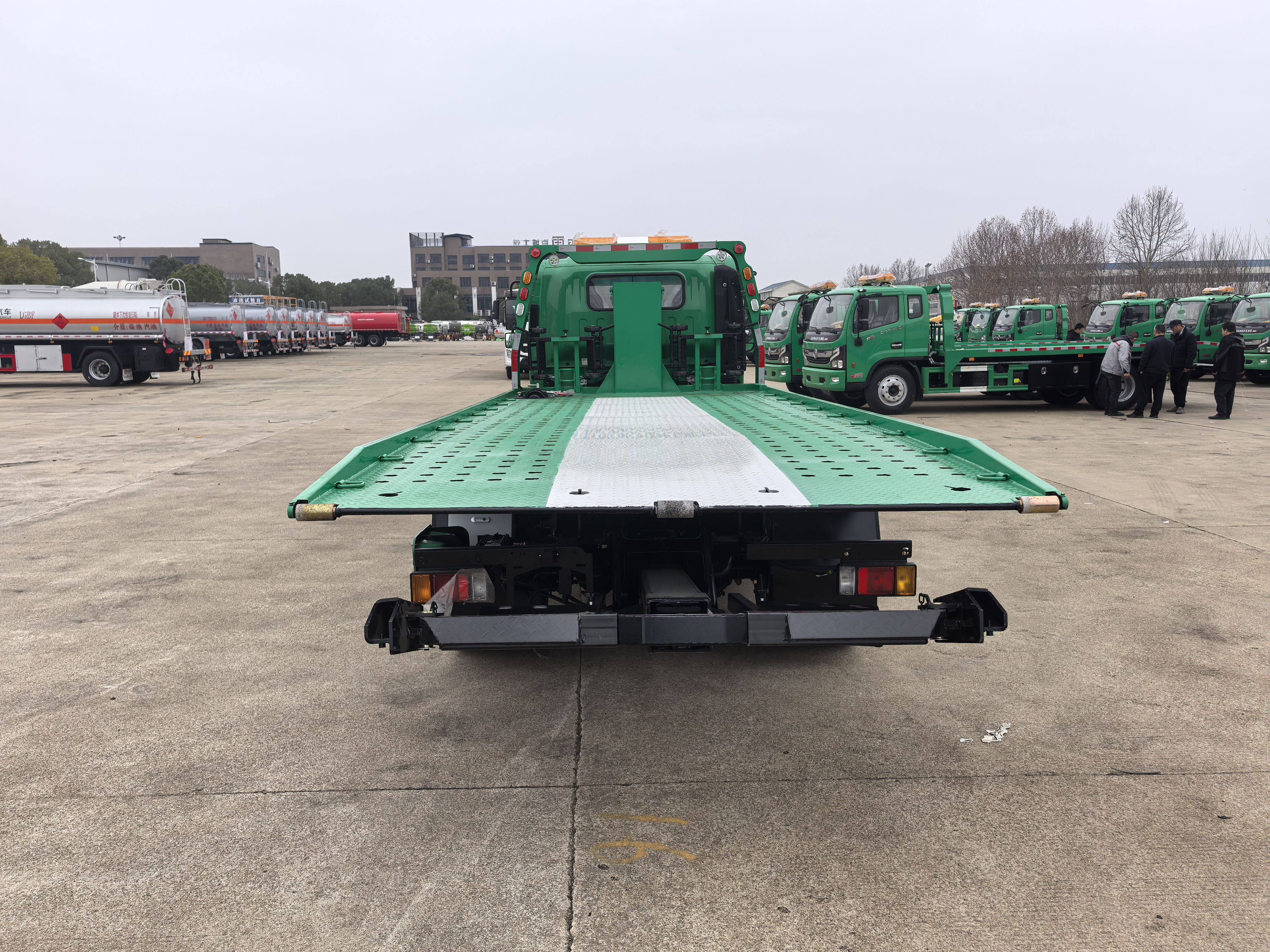

| Photos/产品图片： （Just for reference/仅供参考） |   | |
