Qingling ISUZU FTR 4X2 Water Tank Truck 12m³ QL5180XXYAJWHY

Condition: New
Steering: Left
Horsepower: 205PS
Fuel Type: Diesel
Drive: 4x2
Emission Standard: Euro 5
Brand: Isuzu



Availability:
Quantity:
  • QL5180XXYAJWHY

  • ISUZU

Product Description

Qingling ISUZU  FTR 4X2  Water Tank Truck  12m³  QL5180XXYAJWHY

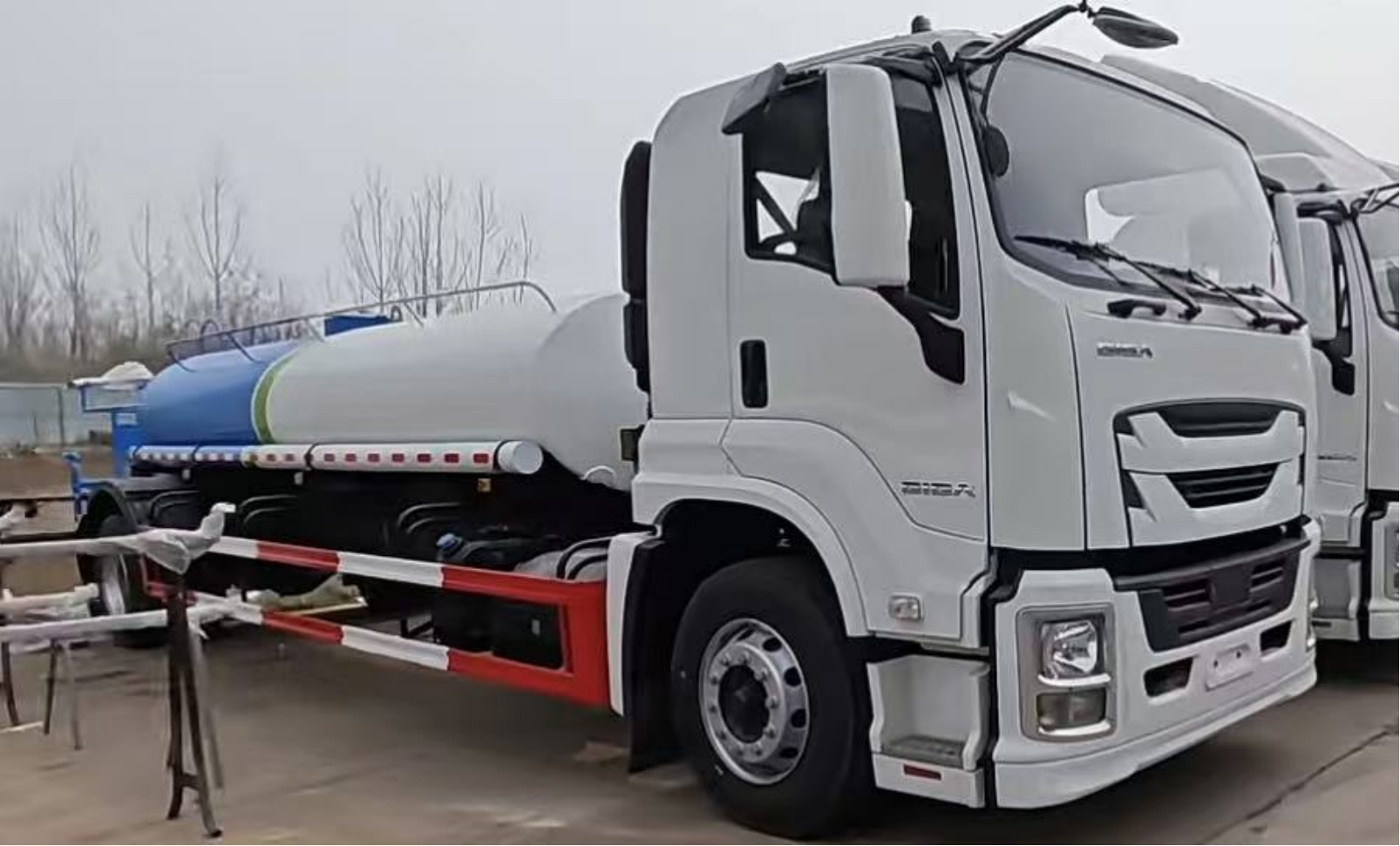

22




Advantages:


• More environmentally friendly

Qingling Guo V products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.


• More economical (fuel saving and urea saving)

Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;

High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;


• High reliability and low maintenance cost.


• Stronger oil adaptability

Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.


• More cost-effective

• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.




                      Qingling ISUZU  FTR 4X2  Water Tank Truck  12m³  QL5180XXYAJWHY(Euro 5)


Main Parameter 底盘参数

序号/Serial 规格配置/Specifications Configuration 欧五发动机+MLD变速箱
Euro V engine + MLD transmission
1 车型类别
The Vehicle  of Category
车型/Model Type 底盘/Truck Chassis
2 车型号/Model Number QL5180XXYAJWHY
3 品牌/Brand 庆铃/QINGLING
5 轴距/Wheelbase 7200
6 驱动型式/Drive Type 4×2
7 用途/Application 非城市/Non-urban
8 质量参数
Mass parameters
GVW(总质量)(kg) 18000
9 发动机/Engine 型号/Engine Model 4HK1-TCE50
10 额定功率/Rated Power (KW) 151
11 最大净功率/Max. Net Power  (KW) 150
12 最大扭矩/ Max.  Torque   (N.m) 650
13 排放标准/Emission Standard 欧五/Euro V
14 后处理装置/ Post Processing device SCR
15 离合器/Clutch
φ350推式/φ350 Push-Type
16 变速器/Transmission 型号/Model MLD-6Q
17 车架/Frame 断面尺寸/Sectional dimensions 850×258,t=10
18 发电机/Generator 50A
19 前桥总成
Front axle Assn.
庆铃桥 鼓式制动 额定载荷6500kg
Qingling axle with drum brake, rated load 6500kg
20 后桥总成/Rear alxe Assn. 庆铃桥 额定载荷13000kg,主减速比:5.571
Qingling axle, rated load 13000kg, final drive ratio: 5.571
21 燃料系/Fuel 燃油箱容量
Fuel tank capacity
400L
22 驾驶室/Cab 内饰/Interior 4X+I内饰/4X+I Interior
23 外饰/Exterior 4X+I外饰/4X+I Exterior
24 驾驶室悬挂/Cab suspension 弹簧式/Spring
25 驾驶员座椅/Driver's seat 普通/Standard
26 副驾、中间座椅
Passenger and Middle Seat
不带未系报警
Without Seat Belt Reminder
27 控制器/Controller ABS
28 装饰件/Decorative parts 涂装件/Coated parts
29 安全带/Safe belt
30 中控锁/Central locking
31 电动窗/Electric windows
32 空调/AC
33 钥匙/Key 遥控钥匙/Remote key
34 4X+I车载影音系统
4X+I In-Vehicle Infotainment System
MP3
35 轮胎及钢圈
Tires and steel rims
轮胎/Tires 275/80R22.5 18PR
36 295/80R22.5 16PR
37 钢圈/Steel rims 8.25×22.5
38 9.00×22.5
39 前钢板弹簧
Front steel plate spring
多片簧 7/Multi-leaf spring 7
40 后钢板弹簧
Rear steel plate spring
多片簧 7+7/Multi-leaf spring7+7
41 其他配置
Other Configuration
加宽保险杠/Widened bumper
42 GB7258与JT/T1178.1等
法规项
Regulations such as GB7258 and JT/TI178.1
前后桥蹄片磨损更换报警
Front and rear axle shoe wear replacement alarm
43 右转弯提示/Right-turn prompt
44 超速报警提示/Overspeed alarm prompt
45 测试接头/Test connector
46 驾驶员安全带未系报警/Driver's seatbelt non- fastened alarm
47 乘员保护/Passenger protection
48 前轮防飞溅/Front wheel splash prevention
Tank parameter/上装配置:
Equipped with 4mm steel plate, front flushing, rear sprinkling and water cannon./钢板4mm,前冲后洒高炮
Water Tank Volume/水罐体积: 12 m³

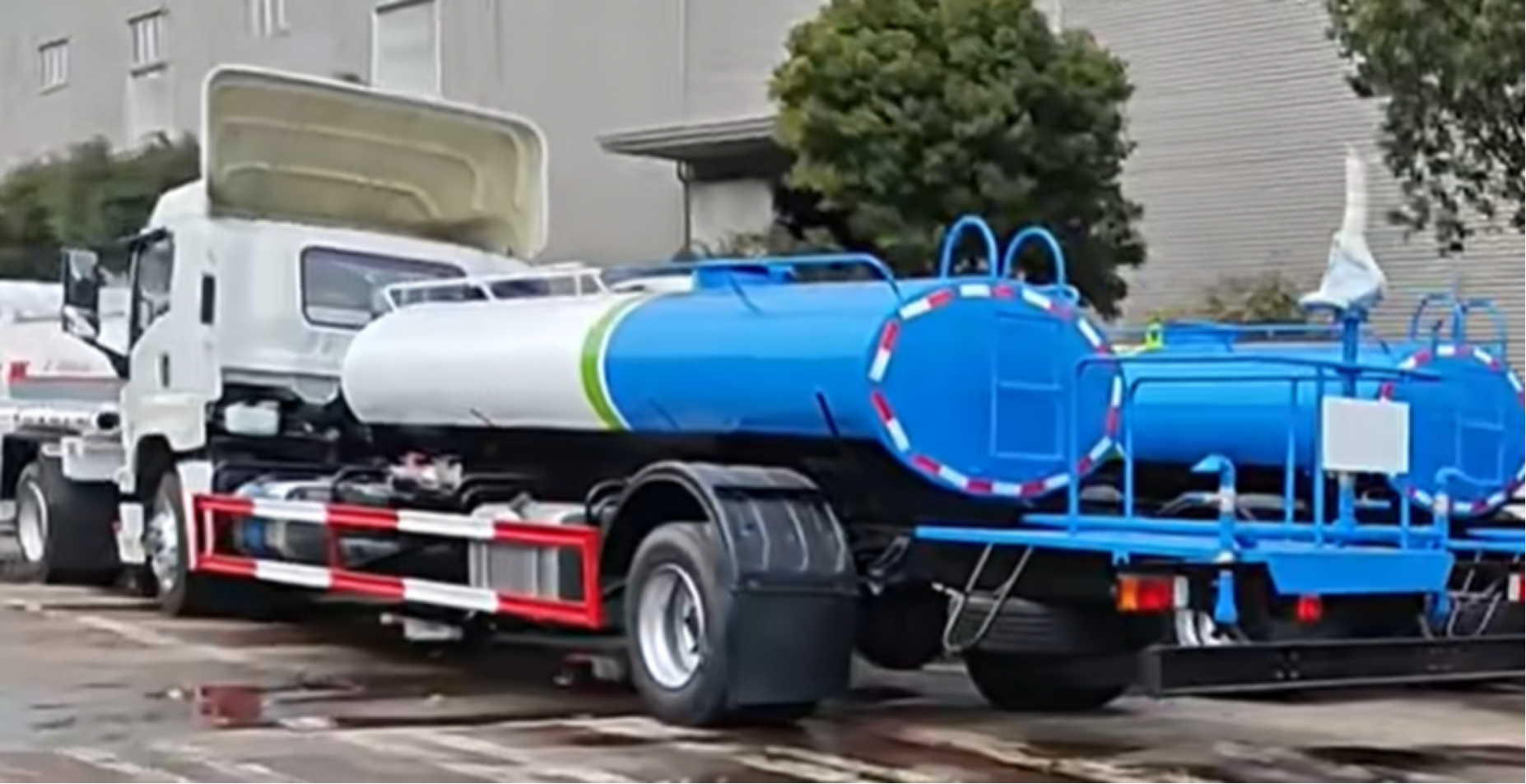

11
