Qingling ISUZU 700P 4x2 Dump Truck QL1110ANHAY

Condition: New
Steering: Left
Horsepower: 190PS
Fuel Type: Diesel
Drive: 4x2
Emission Standard: Euro 6
Brand: ISUZU
Overalll Dimension(L x W x H) :5760x2180x2430mm
Displacement:


Availability:
Quantity:
  • QL1110ANHAY

  • ISUZU

Product Description

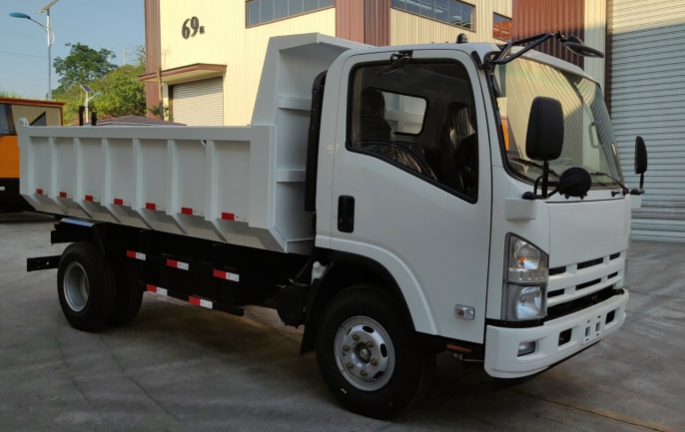

Qingling ISUZU 700P 4x2 Dump Truck   QL1110ANHAY

  11




Advantages:


• More environmentally friendly

Qingling Guo VI products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.


• More economical (fuel saving and urea saving)

Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;

High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;


• High reliability and low maintenance cost.


• Stronger oil adaptability

Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.


• More cost-effective

• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.

45

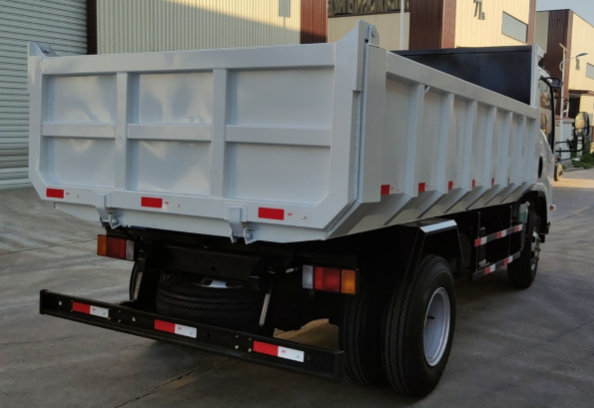

     Qingling ISUZU 700P 4x2 Dump Truck QL1110ANHAY(Euro 6)


  Main Parameter/主要参数


Model/车型

QL1110ANHAY   结构号:PE45A

Overall dimension/整车外形尺寸:

5760×2180×2430 mm

Inner size of container /货厢内部尺寸:

3800×2000×800 mm

GVW/总质量:

10550 KG

Curb weight/整备质量:

3240 KG

Drive type/驱动形式

4x2

Wheelbase/轴距(mm)

3360 mm

Engine Model/发动机型号:

4HK1-TCG61

Engine Power/发动机功率:

140Kw/190PS

Emission/排放:

Euro VI/ 欧六

Fuel Type/燃油类型:

Diesel/柴油

Displacement/排量:

5.193 L

Cab/驾驶室:

Single Row/单排

Front wheel track /前轮距:

1680 mm

Rear wheel track/后轮距:

1650 mm

Tire/轮胎:

235/75R17.5 16PR

Other configurations/其他配置:

ABS system/ABS系统

power steering/动力转向

Reflective signage/反光标识

air conditioning system/空调系统

Maintenance-free battery/免维护蓄电池

Dumper body/上装参数

货箱6.08立方米

货箱内部尺寸:3800×2000×800 mm

厚度:边3底4mm。油缸:腹举

Container 6.08 cubic meters,

Inner size of container :3800×2000×800 mm

Thickness: Side 3 bottom 4mm. Middle Lift
