QL1100A8KAY
ISUZU
Product Description
Qingling ISUZU Dump Truck 700P 4x2
Advantages:
• More environmentally friendly
Qingling Guo V products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.
• More economical (fuel saving and urea saving)
Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;
High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;
• High reliability and low maintenance cost.
• Stronger oil adaptability
Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.
• More cost-effective
• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.
ISUZU 700P Van Truck Specifications (Euro V)
ISUZU Chassis Parameters/五十铃底盘参数
Model/车型： | QL1100A8KAY |
Overall dimension/外形尺寸： | 6980x2170x2330mm |
GVW/总质量： | 10000 KG |
Curb weight/整备质量： | 3180 KG |
Wheelbase/轴距(mm)： | 3815mm |
Engine Model/发动机型号： | 4HK1-TC51 |
Engine Power/发动机功率： | 140Kw/190PS |
Transmission Box/变速箱： | MLD-6Q |
Emission/排放： | Euro V/ 欧五 |
Fuel Type/燃油类型： | Diesel/柴油 |
Displacement/排量: | 15681ml |
Cab/驾驶室: | Single row 单排 |
Front wheel track /前轮距： | 1680 mm |
Rear wheel track/后轮距： | 1650 mm |
Front/rear suspension 前悬/后悬： | 1110/2055mm |
Tire/轮胎： | 235/75R17.5 14PR |
Alex load/轴荷： | 3350 / 6650 KG |
Max. Speed/最高时速: | 110 km/h |
Other configurations/其他配置： | ABS system/ABS系统 power steering/动力转向 Reflective signage/反光标识 air conditioning system/空调系统 Maintenance-free battery/免维护蓄电池 |
Tank Main Parameters/罐体参数

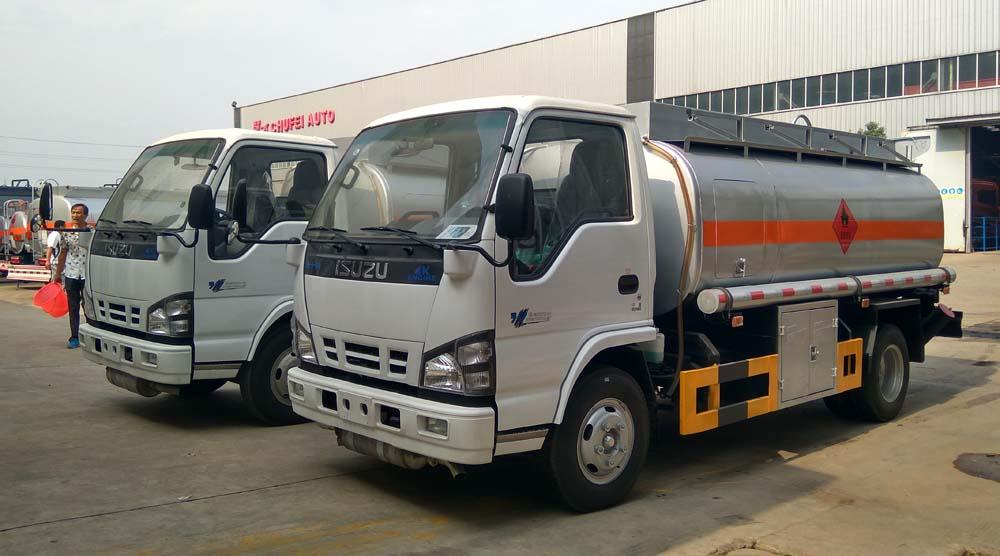

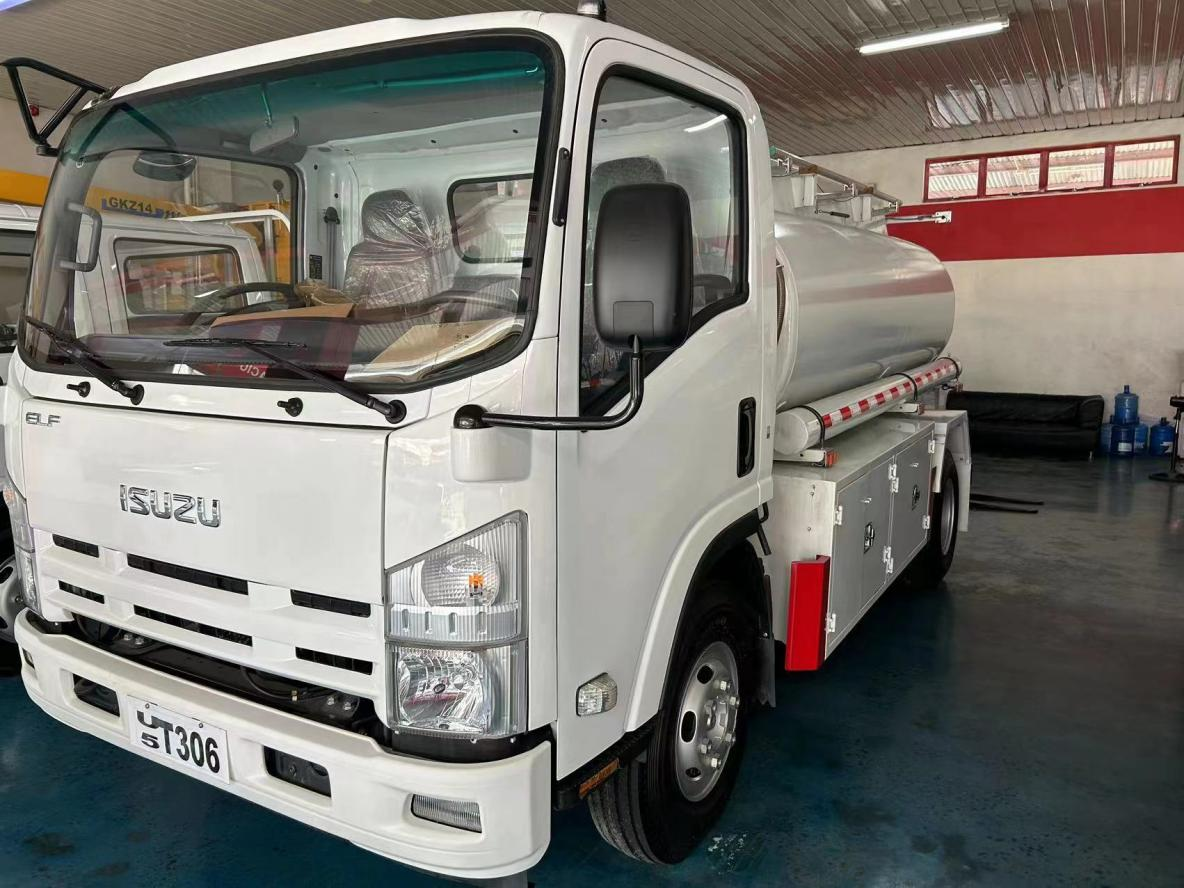

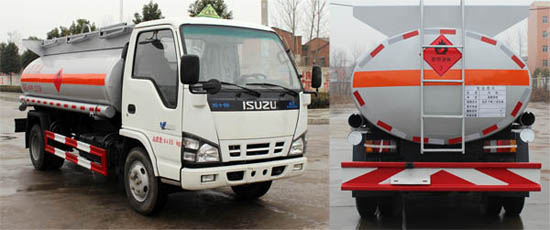

Truck Type/车型: | ISUZU 8.5 m³Refueling/transportation vehicle 五十铃8.5 立方加/运油车 |
Transport medium/运输介质: | Diesel/Gas 柴油 、汽油 |
Tank Volume/罐体容积: | 8.5 m³ |
Tank Size/罐体尺寸: | 4600×1950×1230 mm |
Tank material/thickness罐体材质/厚度: | Q235 Carbon Steel/≥4.2mm Q235 碳钢/≥4.2mm |
Number/thickness of built-in partitions内置隔板数量/厚度: | 2 partitions/thickness ≥4.2mm 2 道隔板/厚度≥4.2mm |
Tank configurations/上装配置:
| Strictly follow the announced dimensions to make the tank body, with a thickness of 4.2mm or more. The tank body material is Q235 high-quality carbon steel plate, Standard Qilu oil pump (can be pumped in and out); Standard equipped with a full set of European standard lower loading oil system (including 1 European standard tank cover, built-in breathing valve at the filling port, 1 submarine valve, 1 lower loading and unloading oil valve, 1 oil and gas recovery valve, 1 oil and gas recovery interface, 1 anti overflow probe and socket); On both sides of the top of the tank body, there are folding and lifting protective barriers, and a ladder is installed at the back. The operation box is equipped with a voice alarm system device, a set of pneumatic combination switches, and an anti-static panel; The standard color is gray, with 3M-1 level orange reflective tape attached to the center of both sides of the tank, three "flammable liquid" signs, safety signs, and a toolbox installed in a suitable location. All other accessories are standard from the manufacturer. (Optional high flow refueling machine, 15 meter automatic return reel and refueling gun) 严格按照公告尺寸制作罐体，罐体厚度大于等于 4.2mm，罐体材质：采用 Q235 优质碳钢板材，标配齐鲁油泵（可泵进泵出）；标配通仓带欧标全套下装油系统（含 1 个欧标罐盖，灌口内置呼吸阀，一个海底阀，1 个下装卸油阀、1 个油气回收阀、1 个油气回收接口、1 个防溢流探杆和插座）；罐体顶部两侧带折叠升降防护栏，后置爬梯，操作箱内带语音报警系统装置，1 套气动组合开关，防静电盘；标配颜色灰色，罐体两侧正中贴 3M-1 级橙色反光带，贴三个“易燃液体”标识，安全告示牌，合适位置安装一只工具箱，其它均为厂家标配。 （选装大流量加油机，15 米自动回位卷盘和加油枪） |
