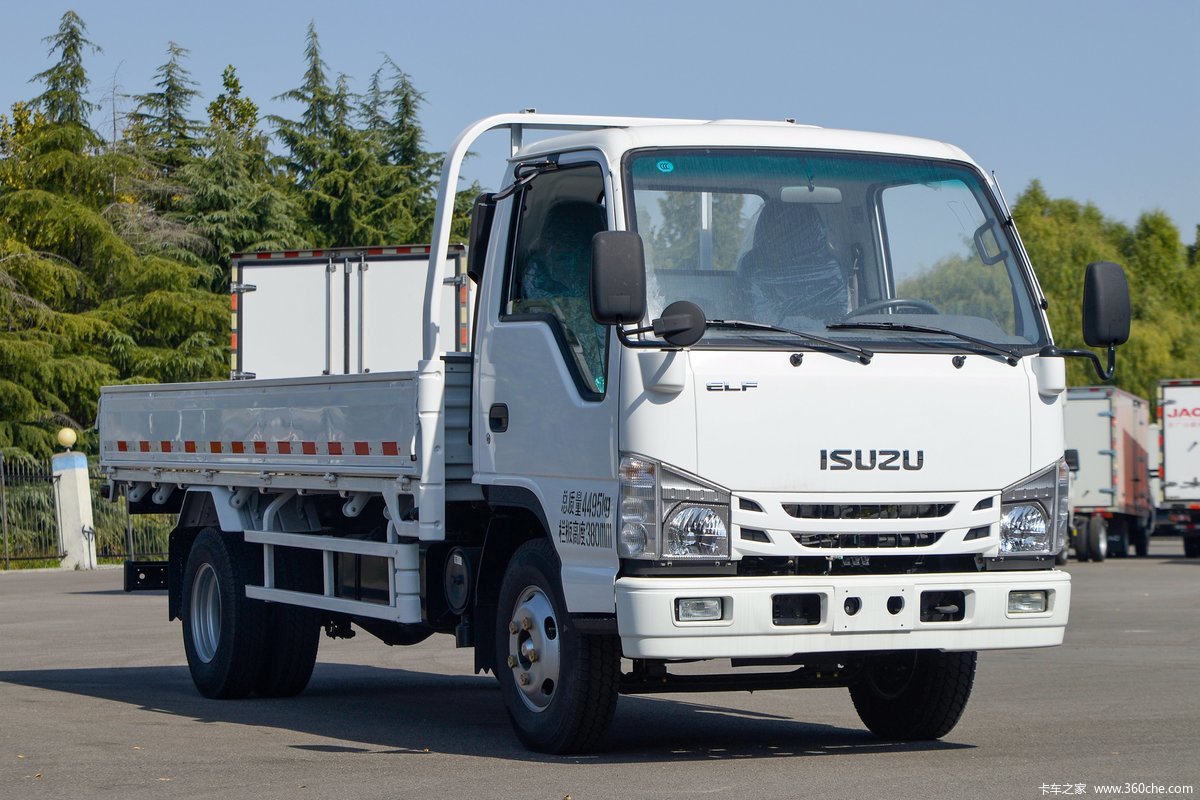

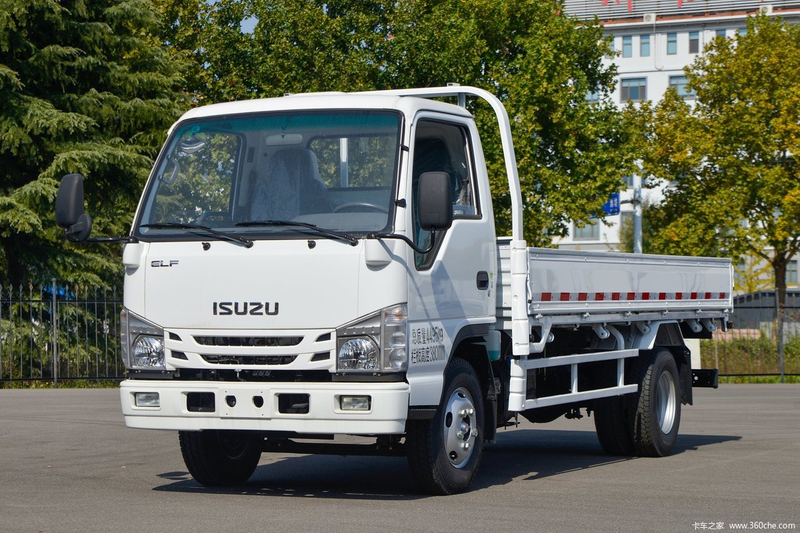

Qingling ISUZU 100P 120 Horsepower 4.275 Meter Single Row Fence Truck (National VI) (QL1040MVHA)

Condition: New
Steering: Left
Horsepower: 120hp
Fuel Type: Diesel
Drive: 4x2
Emission Standard: Euro VI
Brand: Isuzu
Wheelbase: 3360mm
GVW: 4495 kg
Overall size: 5950x1940x2300mm


Availability:
Quantity:
  • QL1040MVHA

Product Description

Qingling ISUZU 100P 120 Horsepower 4.275 Meter Single Row Fence Truck (National VI) (QL1040MVHA)



QL1040MVHA 3QL1040MVHA 2QL1040MVHA 4QL1040MVHA 6QL1040MVHA 5



Advantages:


• More environmentally friendly

Qingling Guo V products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.


• More economical (fuel saving and urea saving)

Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;

High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;


• High reliability and low maintenance cost.


• Stronger oil adaptability

Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.


• More cost-effective

• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.


Specifications (Euro VI)


Model QL1040MVHA
Driving type 4×2
Overall dimension(mm) 5950x1940x2300
Container dimension (mm) 4275x1850x380
Displacement(ml) 2499
GVW (KG) 4495
Curb weight  (KG) 2375
Rated weight (KG) 1995
Wheelbase (mm) 3360
Engine Mode  4KK1N6LB
Engine Power  88kW/120PS
Transmission  MSB-5MT
Emission  Euro VI
Front wheel track  (mm) 1377
Rear wheel track (mm) 1425
Axle load (KG) 1805/2690
Rear axle speed ratio  5.571
Max. Speed (km/h) 100
Front/rear suspension (mm) 1105/1575
Tire  7.00R16LT 8PR
Cabin  Single row
Other configurations

AB

Spower steering

Reflective signage
air conditioning system
Maintenance-free battery
