Product Description
Advantages:
• More environmental friendly
Qingling national VI products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving. The emission standard has met all the requirements of national VI B.
• More economical (fuel saving and urea saving)
Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity; High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;
• High reliability and low maintenance cost.
• Stronger oil adaptability
Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.
• More cost-effective
In the case that the growth rate of domestic similar national VI models is higher than that of overseas V models by more than 10% - 20%, Qingling only increased by 3-4%.
• Stronger power
It is more powerful, the power and low-speed output torque are comprehensively optimized, and the full load power performance and climbing performance of the whole vehicle are improved.
• More specifications
Meanwhile, we have enriched the varieties of a row and a half berth, composite board box, bin grid type box, refrigerated vehicle and heat preservation vehicle, providing users with more choices of specifications.
Light Duty Truck：600P Parameter Comparison
Item | Parameter 1 | Parameter 2 | Parameter 3 |

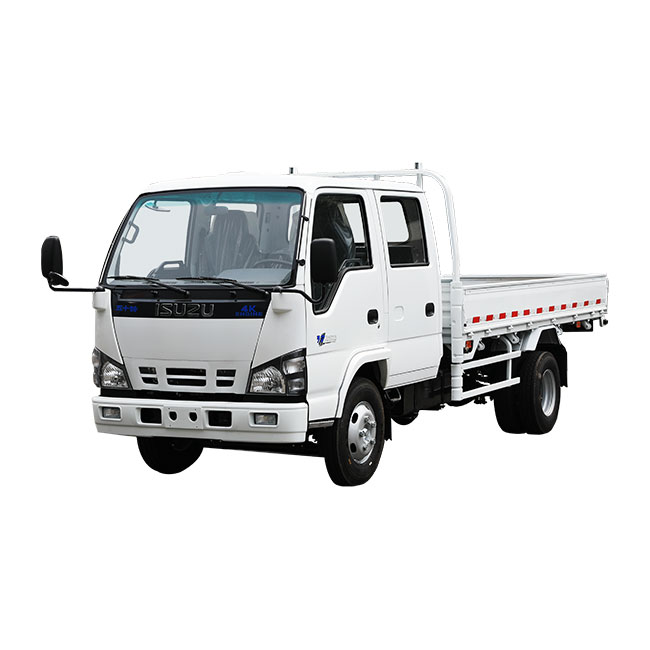

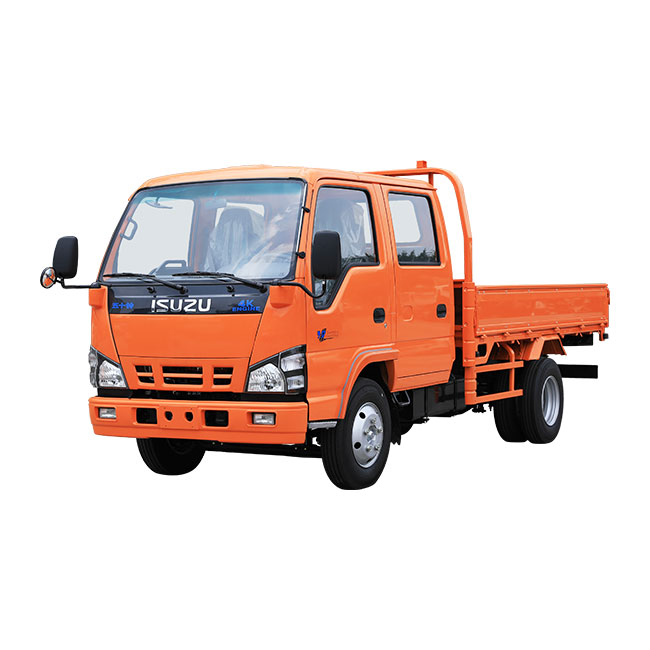

Truck name | Cargo Truck | Cargo Truck | Dump Truck |
Truck No. | QL1040BUFW | QL1080BUHA | QL3040ZBUFA |
Engine Model No. | 4KH1CN6LB | 4KH1CN6HB | 4KH1CN6LB |
Fuel type | 0 # or - 10 # national V diesel (s content ≤ 10ppm) | 0 # or - 10 # national V diesel (s content ≤ 10ppm) | 0 # or - 10 # national V diesel (s content ≤ 10ppm) |
Displacement | 2999 | 2999 | 2999 |
Engine power | 88 | 97 | 88 |
Torque | 290 | 320 | 290 |
Drive Speed Ratio | 5.375 | 5.375 | |
Transmission Model | |||
Gross Mass(kg) | 4230 | 8280 | 4495 |
Curb Mass(kg) | 2410 | 3110 | 2720 |
Load Mass(kg) | 1495 | 1645 | |
Towering mass (kg) | |||
Wheel base(mm) | 2765 | 3365 | 2765 |
Cab type | 双排 | 单排 | 单排 |
Passenger | 2+3 | 3 | 2 |
Overall dimension Length (mm) | 5280 | 5995 | 5035 |
Overall dimension Width (mm) | 1880 | 2410 | 1945 |
Overall dimension Height (mm) | 2300 | 2440 | 2375 |
Container volume | |||
Container internal dimension length (mm) | 2560 | 4130 | 3260 |
Container Internal dimension width (mm) | 1790 | 2300 | 1780 |
Container Internal dimension height (mm) | 380 | 380 | 380 |
Front wheel track(mm) | 1504 | 1690 | 1504 |
Rear wheel track(mm) | 1425 | 1655 | 1425 |
Leaf spring | 3/3+2 | 6/6+6 | 8/6+5 |
Front suspension (mm) | 1015 | 1120 | 1015 |
Rear suspension (mm) | 1500 | 1510 | 1255 |
Axle load(kg) | 1520/2710 | 3000/5280 | 1805/2690 |
Max. speed | 105 | 105 | 105 |
Light Duty Truck：600P Parameter Comparison
Item | Parameter 1 | Parameter 2 | Parameter 3 |

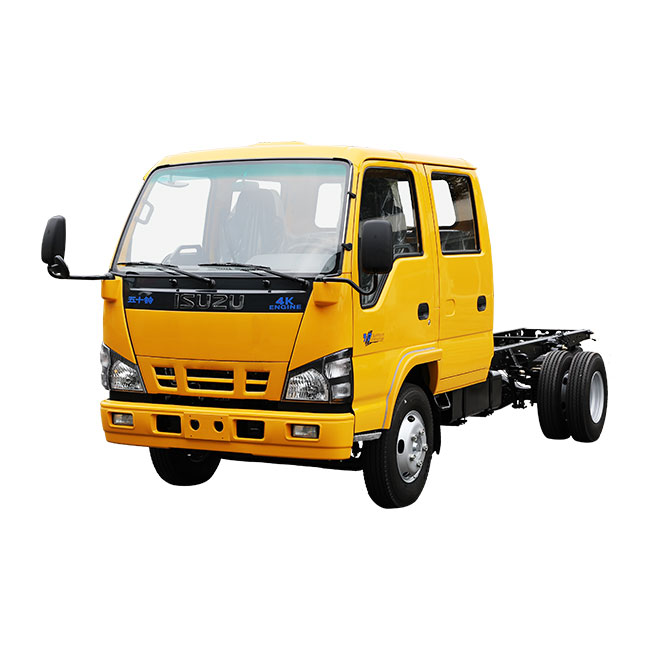

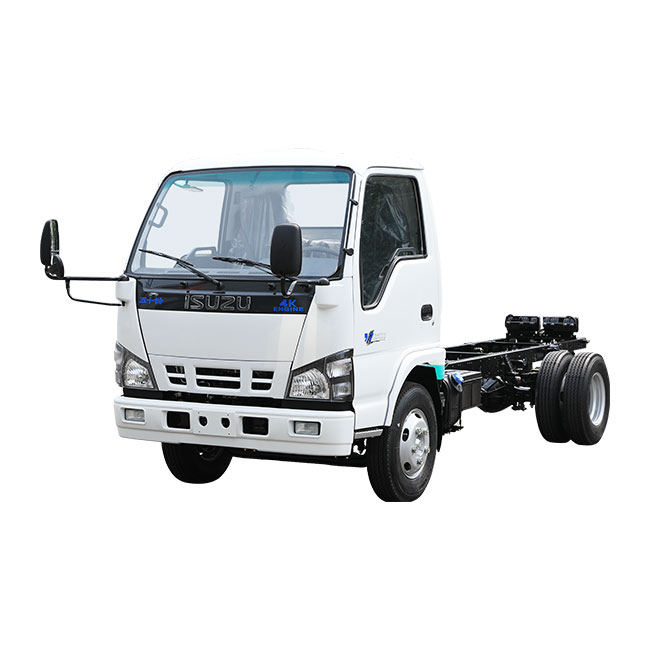

Truck name | Truck Chassis | Truck Chassis | Truck Chassis |
Truck No. | QL1070A5FAY | QL1070A5HAY | QL1070A5KAY |
Engine Model No. | 4KH1TCG51 | 4KH1CN5HD | 4KH1CN5HS |
Fuel type | 0#或-10# 国V柴油（S含量≤10ppm） | 0#或-10# 国V柴油（S含量≤10ppm） | 0#或-10# 国V柴油（S含量≤10ppm） |
Displacement | 2999 | 2999 | 2999 |
Engine power | 88 | 96 | 96 |
Torque | 290 | 290 | 290 |
Drive Speed Ratio | |||
Transmission Model | |||
Gross Mass(kg) | 6720 | 7300 | 7300 |
Curb Mass(kg) | 2050 | 2080 | 2110 |
Load Mass(kg) | |||
Towering mass (kg) | |||
Wheel base(mm) | 2765 | 3360 | 3815 |
Cab type | 单排 | 单排 | 单排 |
Passenger | 2 | 2 | 3 |
Overall dimension Length (mm) | 5230 | 5900 | 6665 |
Overall dimension Width (mm) | 1880 | 1880 | 1880 |
Overall dimension Height (mm) | 2200 | 2200 | 2200 |
Front wheel track(mm) | 1504 | 1504 | 1504 |
Rear wheel track(mm) | 1425 | 1425 | 1425 |
Leaf spring | 8/6+5 | 8/6+5 | 8/6+5 |
Front suspension (mm) | 1015 | 1015 | 1015 |
Rear suspension (mm) | 1450 | 1425 | 1835 |
Axle load(kg) | 2300/4420 | 2580/4720 | 2580/4720 |
Max. speed | 110/105 | 110/105 | 110/105 |
