Qingling FVR Truck Chassis QL1250WRFZY

Condition: New
Steering: Left
Horsepower: 300hp
Fuel Type: Diesel
Drive: 6x4
Emission Standard: Euro VI
Overall dimension:10210×2490×2810mm


Availability:
Quantity:
  • QL1250WRFZY

Product Description

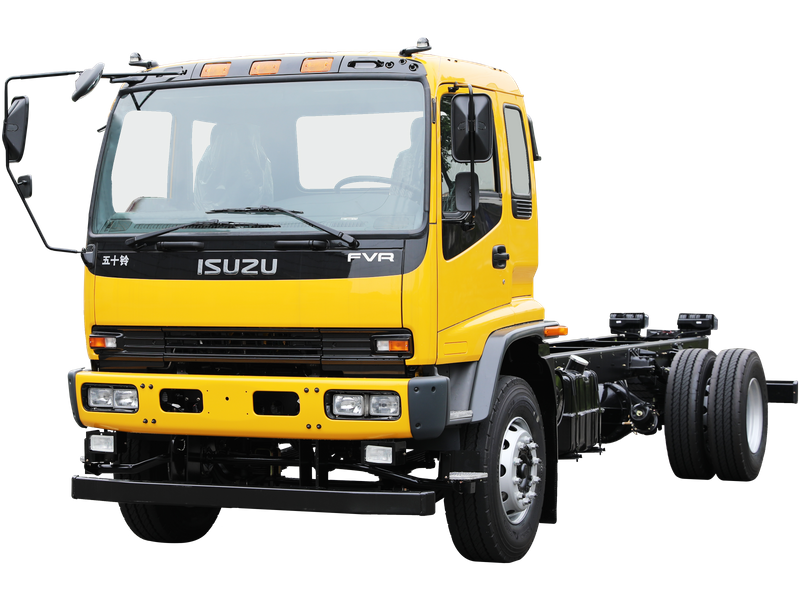

Qingling ISUZU FVR Truck Chassis QL1250WRFZY


FVR_1FVZ_1

Main Specifications:


Model QL1250WRFZY
Driving type 6x4
Overall dimension (mm) 10210×2490×2810mm
Displacement(ml) 7790
GVW(KG) 25000
Curb weight(KG) 7820
Wheelbase(mm) 5100+1300
Engine Model 6HK1-TCH
Engine Power 221kW/300PS
Transmission 9JS11T9A
Emission Euro VI
Front wheel track (mm) 1960
Rear wheel track(mm) 1855/1855
Axle load(KG) 7000/18000
Max. Speed(km/h) 105
Front/rear suspension(mm) 1335/2475 mm
Tire 11.00R20 16PR ,11.00R22.5 16PR
Cabin Single and half row
Other configurations ABS
power steering
Reflective signage
air conditioning system
Maintenance-free battery
