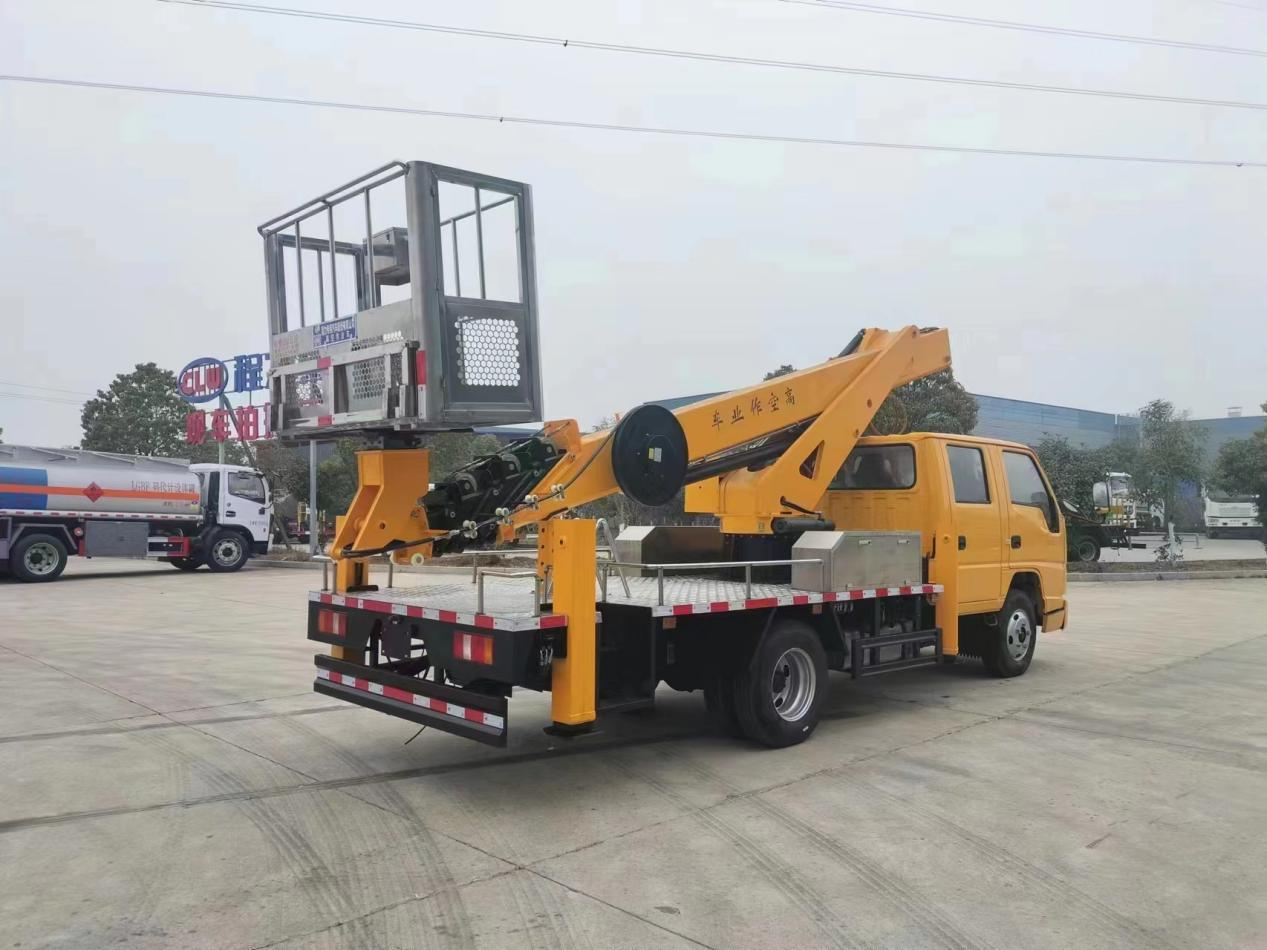

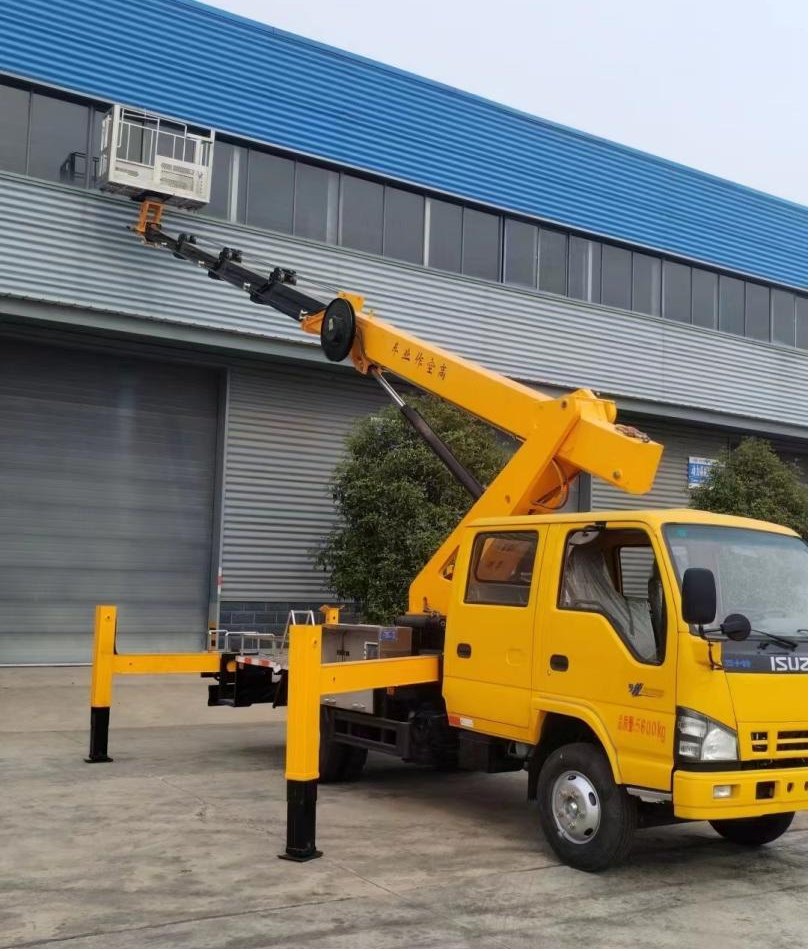

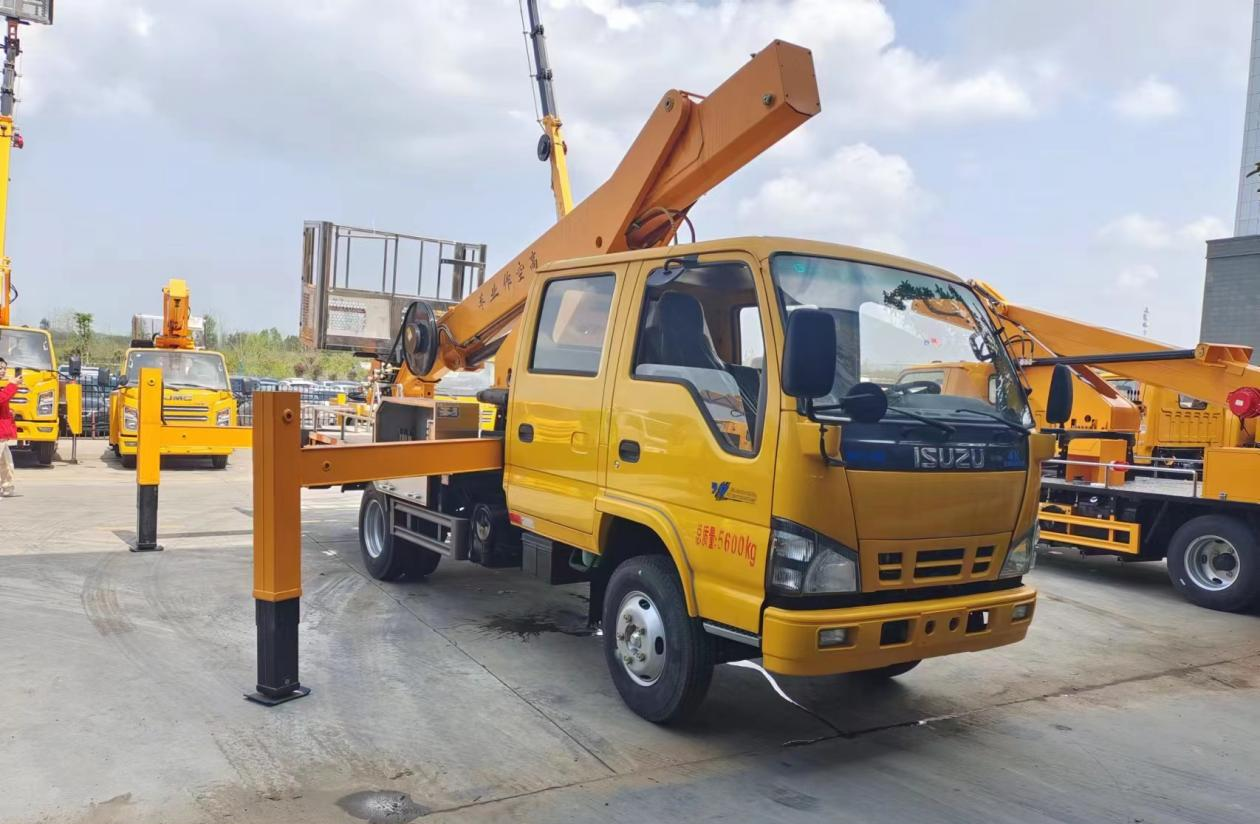

Qingling Chassis 14 Meter Telescopic Aerial Work Vehicle

Dimension

★Total length

mm

5998

★ Total width

mm

2000,2100

★Total height

mm

2750,3000,3250,3150

Mass

Number of passengers (including driver)

Person

2

GVW

kg

4495

Main performance parameters

Rated load of working platform

kg

260

Max. Working height★

m

14m

★Operating amplitude at Max. operating height

m

3.0

★Maximum operating amplitude

m

9.0

Operating height at Max.operating amplitude★

m

24

Outrigger span★

horizontal

mm

4450

vertical

mm

4300

Driving parameters

★Front suspension

mm

1075

★Rear suspension

mm

1563

★Wheel base

mm

3360

Max. speed

Km/h

100

Approach angle

°

20

Departure angle

°

11.5

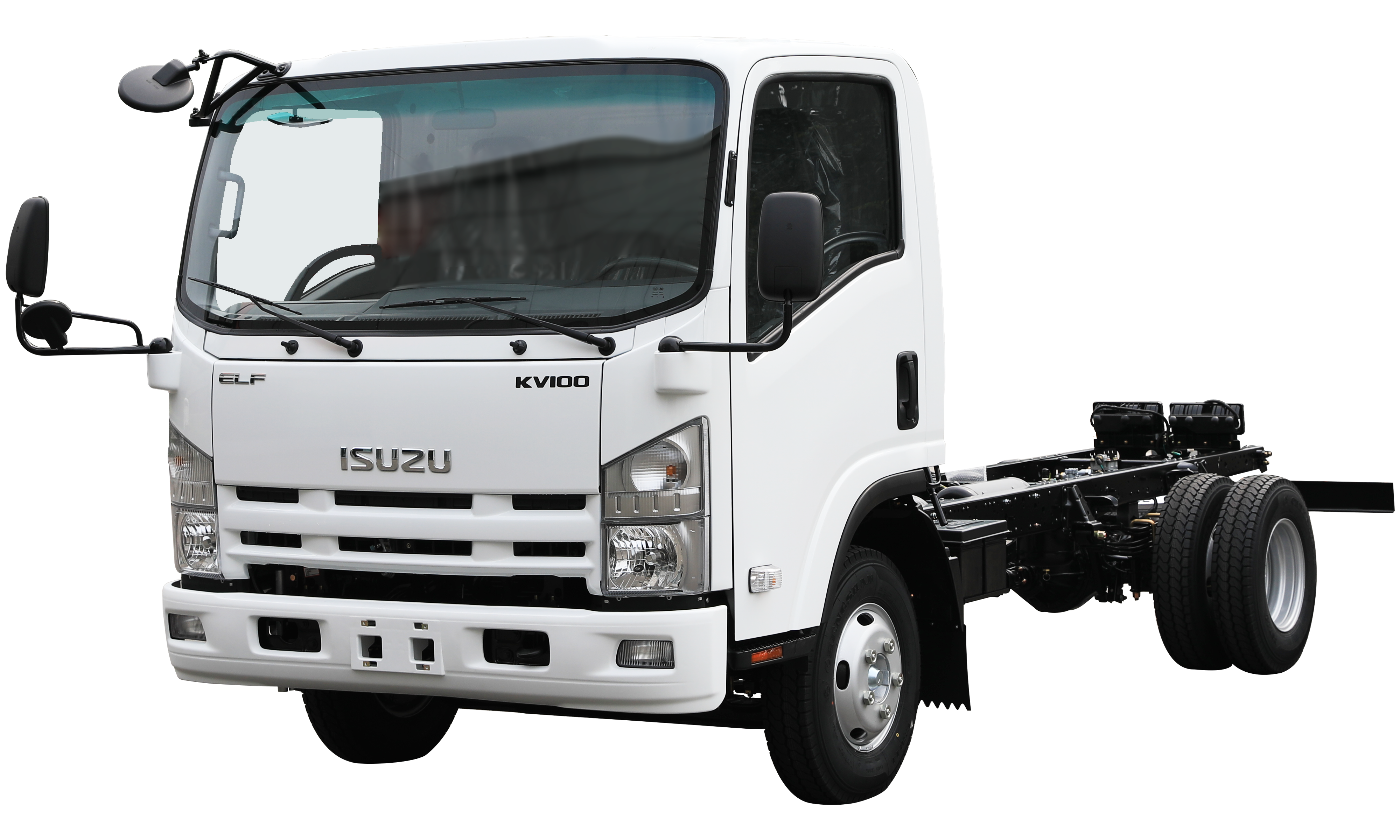

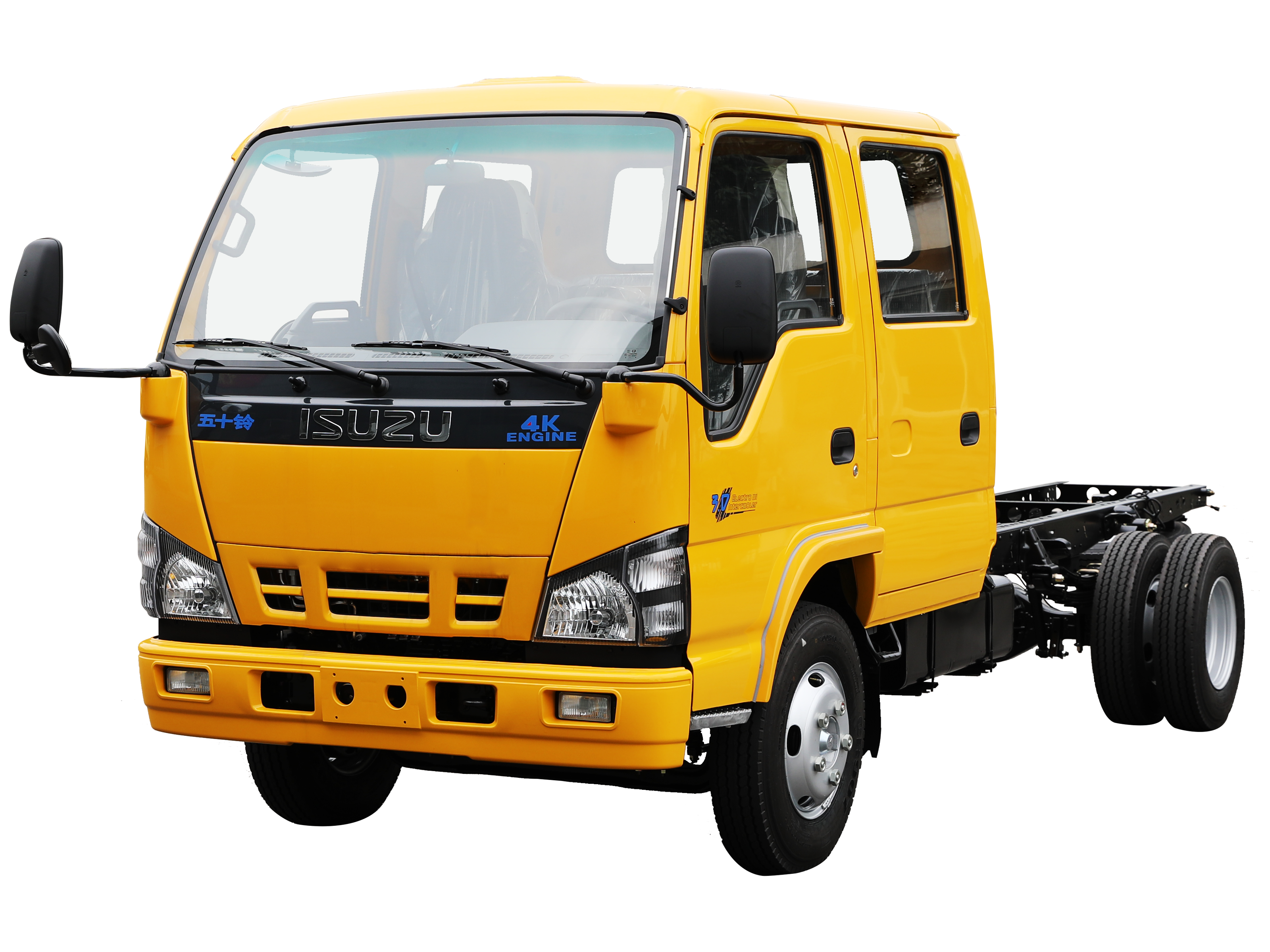

Chassis

Qingling Isuzu 100P

Engine

Qingling Isuzu engine，Diesel,Power 83KW/113PS，Euro V

Cab

Double rows，Allowable passengers are 2+3.

Steering assistance

★ Steering assisted

Temperature adjustment

Cab with air conditioning

Shroud and walkway board

Stainless steel fence and anti slip walkway board

TPO

Mechanical operation

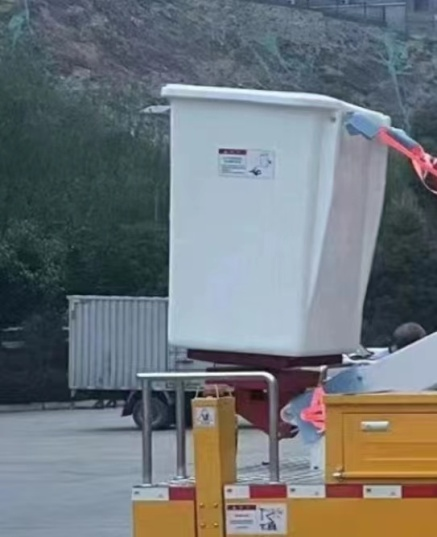

Working platform

high-strength aluminum alloy size: 1400X710X1200

Boom form

Three hexagonal working arms, synchronous telescopic

Rotating device

360 degree continuous rotation

Outrigger

★ Front V-shaped, back H-shaped, individually adjustable

(controlled)

Operation

★Electric control operation, equipped with manual emergency operation

Controlling system

CAN bus control system, equipped with wireless remote control, achieving stepless speed regulation

Leveling system

Hydrostatic automatic leveling
