Qingling 8x4 VC61 Fire Truck Chassis QL5400GXFW2VCHY

Condition: New
Steering: Left
Horsepower: 460ps
Fuel Type: Diesel
Drive: 8x4
Emission Standard: Euro V
Overall dimension：11285x2540x3055,2985mm


Availability:
Quantity:
Inquire Add to Basket

  • QL5400GXFW2VCHY

Product Description

Qingling 8x4 VC61 Fire Truck Chassis  QL5400GXFW2VCHY

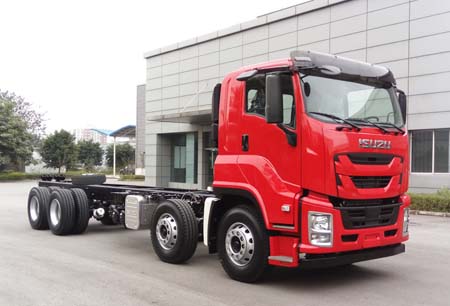

QL5400GXFW2VCHY

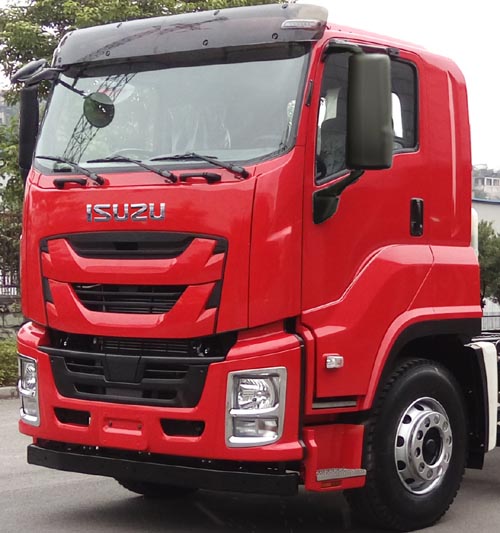

QL5400GXFW2VCHY 2

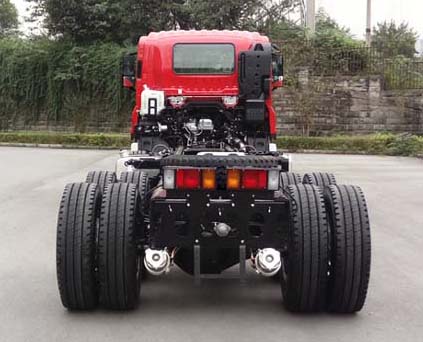

fire truck chassis

Main Specifications:


Model QL5400GXFW2VCHY
Driving type 8x4
Overall dimension (mm) 11285×2540×3055,2985(mm)
Displacement（ml） 15681
GVW(KG) 40000
Curb weight(KG) 10450
Wheelbase(mm) 1850+4575+1370
Engine Model 6WG1-TCG51
Engine Power 338Kw/460PS
Transmission ZF8S2030TO
Emission Euro V
Front wheel track (mm) 2060/2060
Rear wheel track(mm) 1855/1855
Axle load（KG） 7000/7000/26000
Max. Speed(km/h) 102
Front/rear suspension（mm） 1370/2120 mm
Tire 315/80R22.5 16PR
Cabin Single row
Other configurations ABS
power steering
Reflective signage
air conditioning system
Maintenance-free battery
