QL1110CNHAY
ISUZU
Product Description

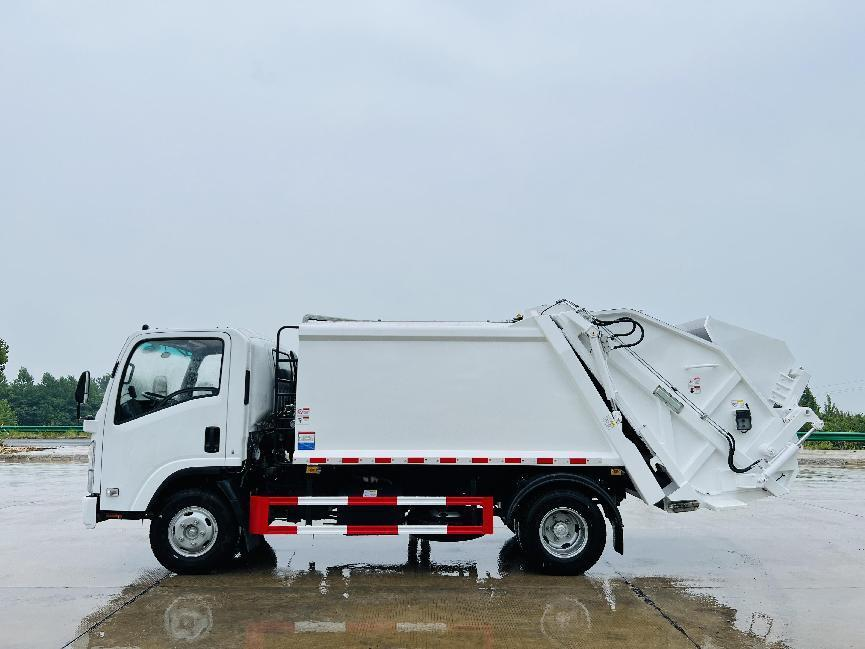

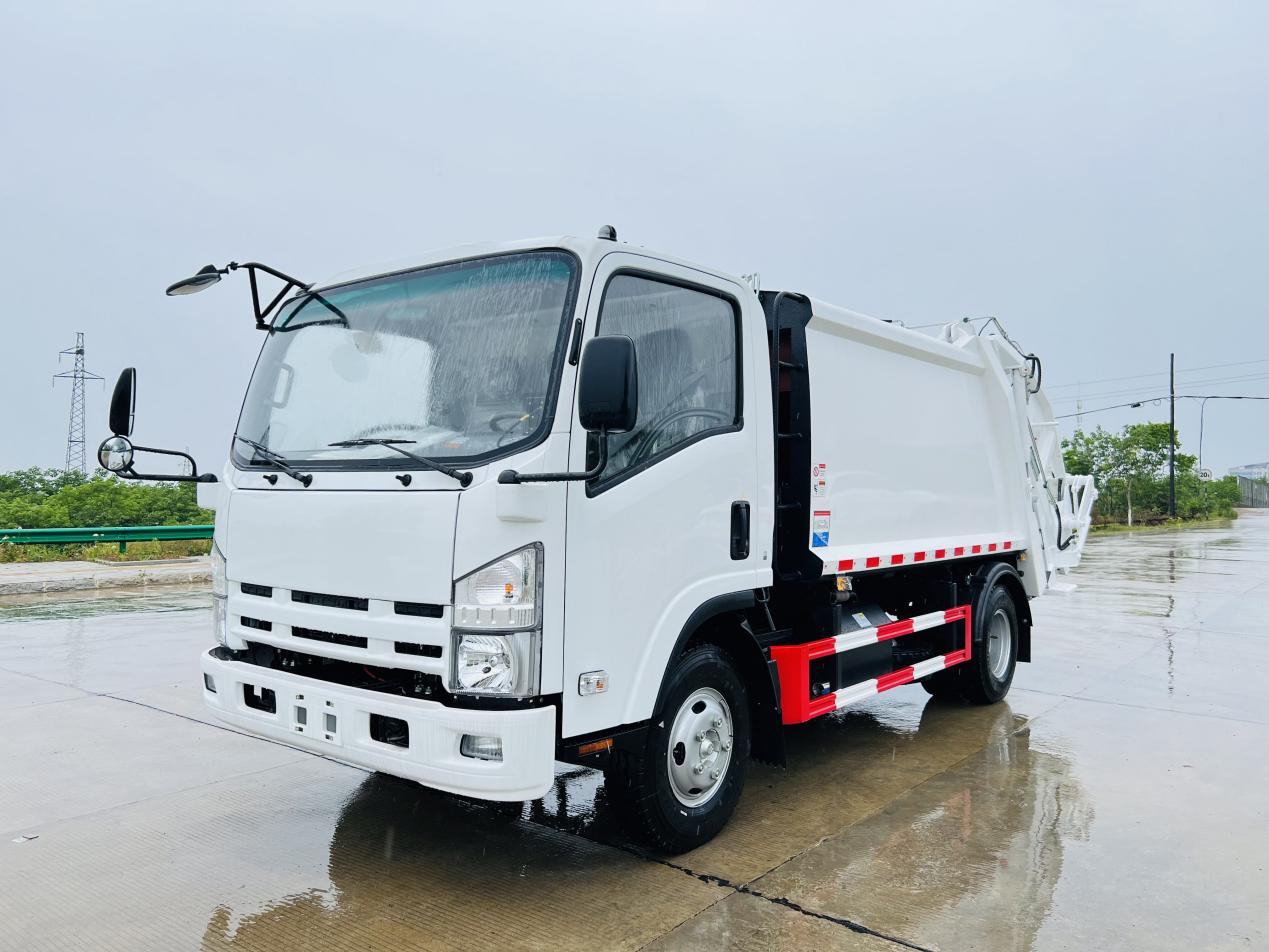

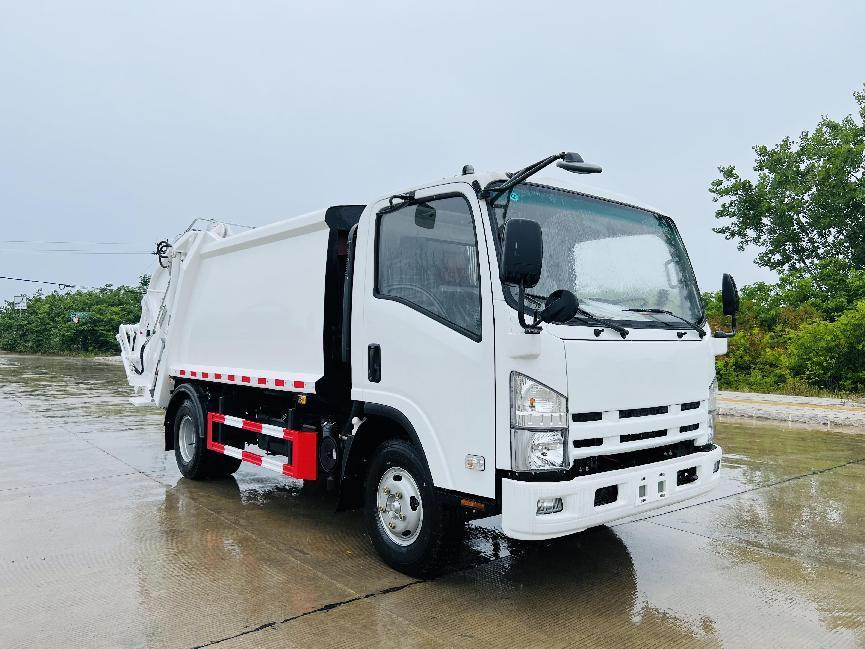

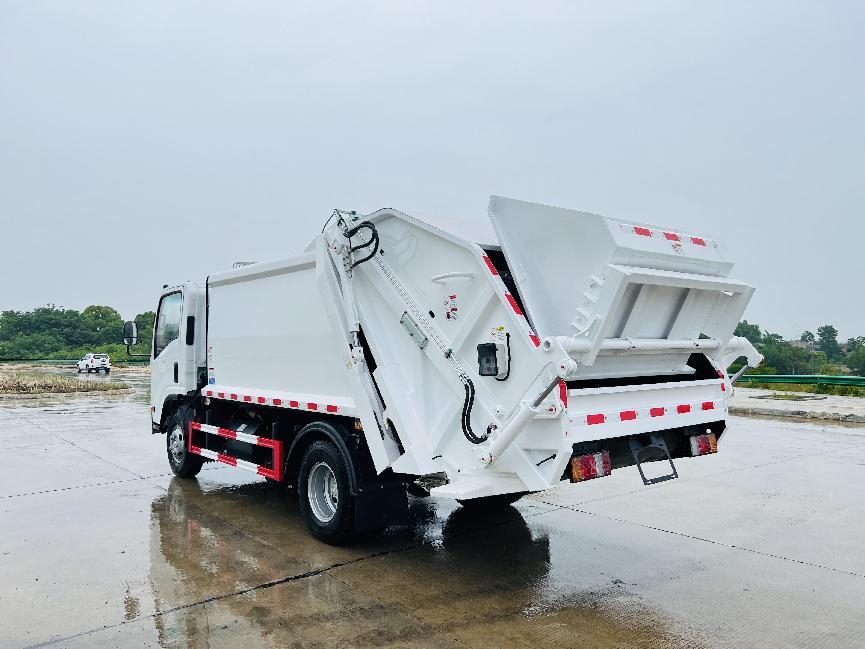

QingLing ISUZU 700P 4x4 6M3 Compressed Garbage TRUCK QL1110CNHAY
Advantages:
• More environmentally friendly
Qingling Guo VI products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.
• More economical (fuel saving and urea saving)
Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;
High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;
• High reliability and low maintenance cost.
• Stronger oil adaptability
Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.
• More cost-effective
• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.
QingLing ISUZU 700P 6M3 Compressed Garbage TRUCK 4x2 QLQL1110ANHAY（Euro 6）
I. Chassis Parameter 底盘参数
Model/车型： | QL1110CNHAY |
Drive Type/驱动方式 | 4x4 |
Chassis dimension/底盘尺寸 (L x W x H)： | 5995x2170x2565mm |
GVW/总质量： | 10550 KG |
Curb weight/整备质量： | 3650KG |
Wheelbase/轴距(mm)： | 3360mm |
Engine Model/发动机型号： | 4HK1-TCG61 |
Engine Power/发动机功率： | 140Kw/190PS |
Emission/排放： | Euro VI/ 欧六 （cancel post processing/取消后处理） |
Fuel Type/燃油类型： | Diesel/柴油 |
Cab/驾驶室: | Single row/单排 |
Front wheel track /前轮距： | 1680mm |
Rear wheel track/后轮距： | 1650mm |
Tire/轮胎： | 8.25R20 16PR（选装） |
Other configurations/其他配置： | Power steering/动力转向 Air conditioning system/空调系统 Maintenance-free battery/免维护蓄电池 |
II. Upper body parameters/上装配置
Garbage tank 垃圾车罐体配置 | Volume of tank/体积 | 6 cubic meter/6方 |
Material of Garbage tank/材料 | Carbon Steel /碳钢 | |
Tank thickness/缸体厚度 | Side :4mm ; Bottom:5mm，底5边4 | |
Control system/控制系统 | Manual control：Manual operation device 手动控制：手动操作装置 | |
Emergency control:With 1 Emergency off switch 紧急控制：带1个紧急关闭开关 | ||
Electronic control：CAN bus control + silicone material operation control panel ，1 set on the filler， 1 set in the cab . 电子控制：CAN总线控制+硅胶材料操作控制面板，1套在加油口，1套位于驾驶室。 | ||
Sewage tank污水罐用特点控制方式多样化，双向压缩
| 2 tanks/2罐
| |
Working zone Lighting/工作区照明 | 2 lamps/2盏灯
| |
Mechanism of raising/提升装置 | Hydraulic Lifting cylinder with balance valve 带平衡阀的液压举升缸
| |
Features/特点 | Control mode diversification,bidirectional compression控制方式多样化，双向压缩 | |
Function/功能 | Seal garbage truck is formed of garbage box, hydraulic system, operation system. Sewage will be put into totally the sewage box during self-compress and self-dump.With one Bucket.The rear bucket can be according to your requests. 密封垃圾车由垃圾箱、液压系统、操作系统组成。污水自压缩自倾倒时全部排入污水箱。有一个水桶。后铲斗可根据您的要求。 | |

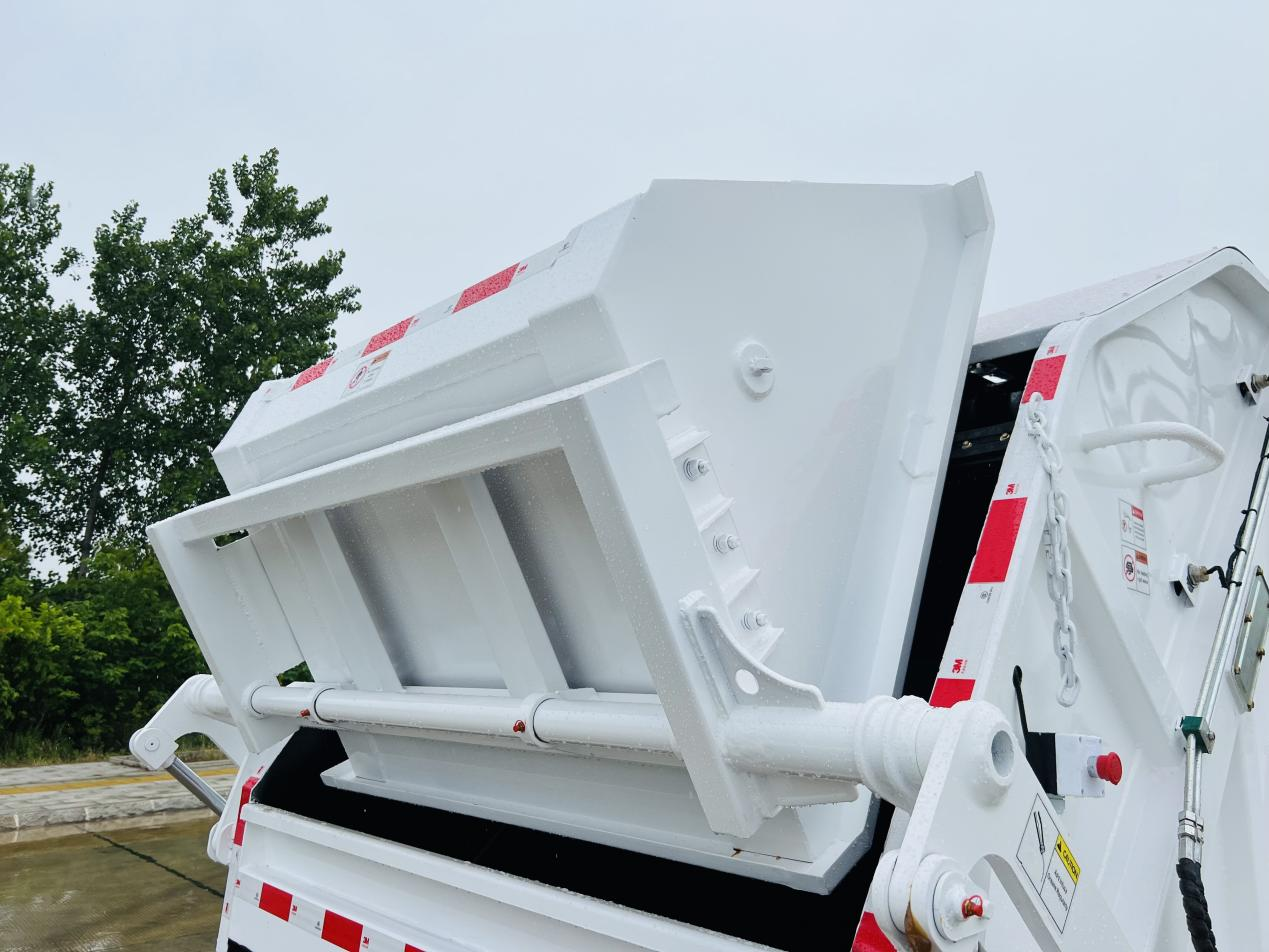

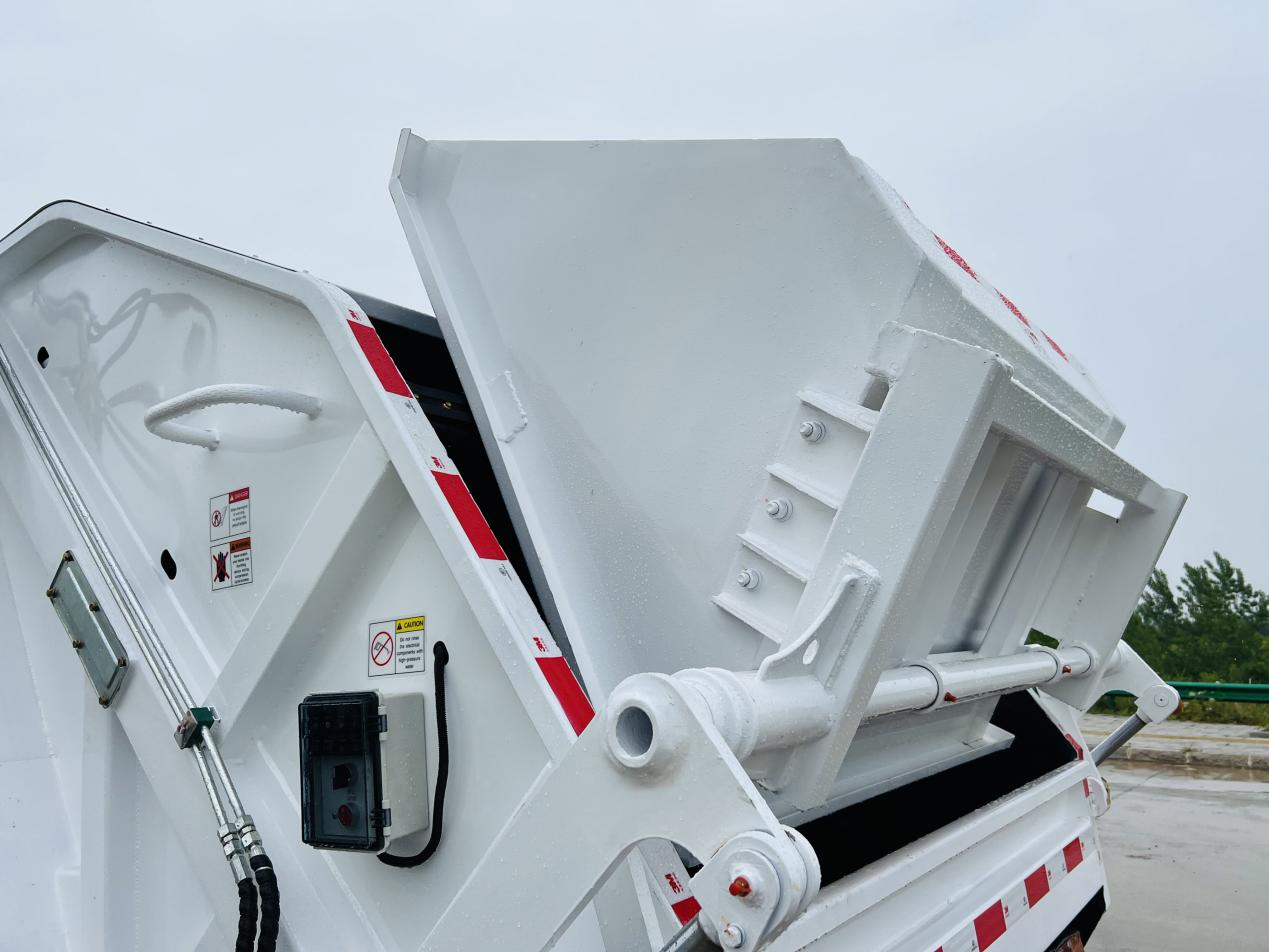

Back flip form/后翻斗 | Dustpan bucket/集尘斗 | |
Hydraulic system/液压系统 | Cylinder/缸 | China famous brand/国内著名品牌 |
Oil pump/油泵 | China famous brand/国内著名品牌 | |
Multi-way valve/多通阀 | China famous brand/国内著名品牌 | |
Hydraulic tank/液压油箱 | 1 piece/1个 | |
Hydraulic tubing/液压油管 | Black rubber steel wire hose and steel oil pipe 黑色橡胶钢丝软管和钢制油管 | |
Process requirements 工艺要求 | Corrosion inside the box 箱内腐蚀 | Industrial grade anti-corrosion 工业级防腐 |
Requirements/其他要求 | The tank body, mudguard, sub-frame welded joints and side lights need to be treated with sealant 罐体、挡泥板、副车架焊接接头和侧灯需要用密封胶处理 |
