QL1250U4QDZCY
ISUZU
Product Description

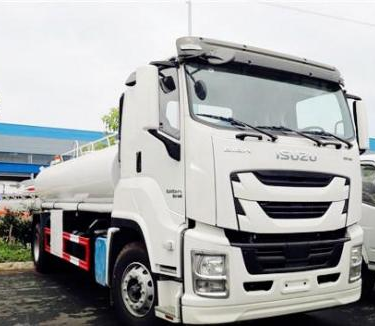

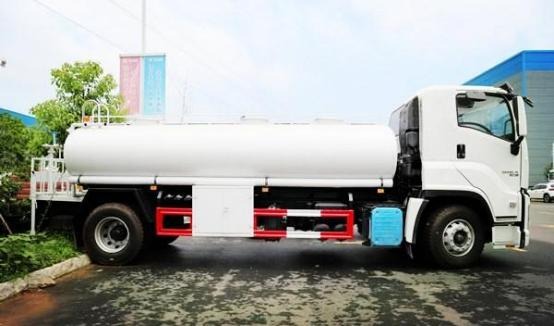

QINGLING ISUZU VC66 13 m³ Water Spray Road Truck 6x4
Advantages:
• More environmentally friendly
Qingling Guo VI products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.
• More economical (fuel saving and urea saving)
Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;
High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;
• High reliability and low maintenance cost.
• Stronger oil adaptability
Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.
• More cost-effective
• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.
QINGLING ISUZU VC66 13 m³ Water Spray Road Truck 6x4（Euro 6）
Model： |
QL1250U4QDZCY |
Drive： |
6×4 |
Chassis dimension： |
L:7825 / W:2540 / H:3055 |
| Tank volume： | 13m³ |
GVW： |
25000KG |
Curb mass： |
8840KG |
Load mass： |
kg |
Wheelbase(mm)： |
3985+1370 mm |
Engine Model： |
6UZ1-TCG61 |
Engine power： |
279kW/380PS |
Fuel type： |
Diesel |
Emission： |
Euro VI |
Max. speed： |
85km/h |
Tire： |
12R22.5 18PR |
Cab： |
One row with a berth |
Cab allowable passengers： |
3 |
| Front wheel track | 2060mm |
| Rear wheel track | 18551855mm |
Other configurations： |
ABS Power steering Retro-reflective marking AC Free-maintenance battery |
Upper body technical Specification 上装技术规格 |
This vehicle is mainly applied for greening irrigation and road water sprinkling. The water tank is welded of Q235 carbon steel with a plate thickness of 4 mm and a nominal volume of 13 cubic meters. Tank dimensions: 6000 mm × 1900 mm × 1300 mm. Four anti-sloshing baffles are installed inside the tank. The tank top is equipped with a manhole and guardrail; the rear side is fitted with a ladder, working platform and safety guardrail. It is equipped with a 60/90 water sprinkler pump, delivering a flow rate of 60 m³/h and a maximum lift of 90 meters. Front flush nozzles are mounted at the vehicle front, while rear sprinklers, side sprinklers and a water cannon are arranged at the rear section. |
