QL1250FNFZY
ISUZU
Product Description

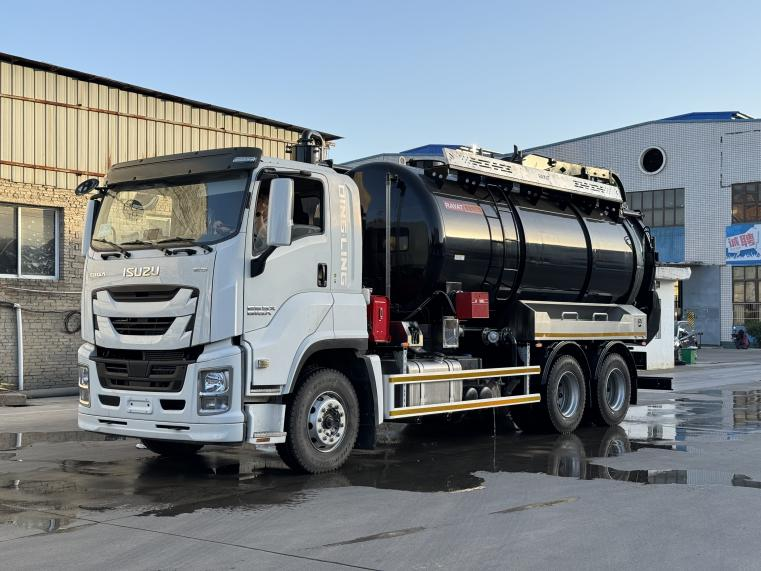

QINGLING ISUZU Sewage suction truck 20m³ 6x4 QL1250U4SDZY
Advantages:
• More environmentally friendly
Qingling Guo VI products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.
• More economical (fuel saving and urea saving)
Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;
High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;
• High reliability and low maintenance cost.
• Stronger oil adaptability
Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.
• More cost-effective
• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.
QINGLING ISUZU Sewage suction truck 20m³ 6x4 QL1250U4SDZY（Euro 6）

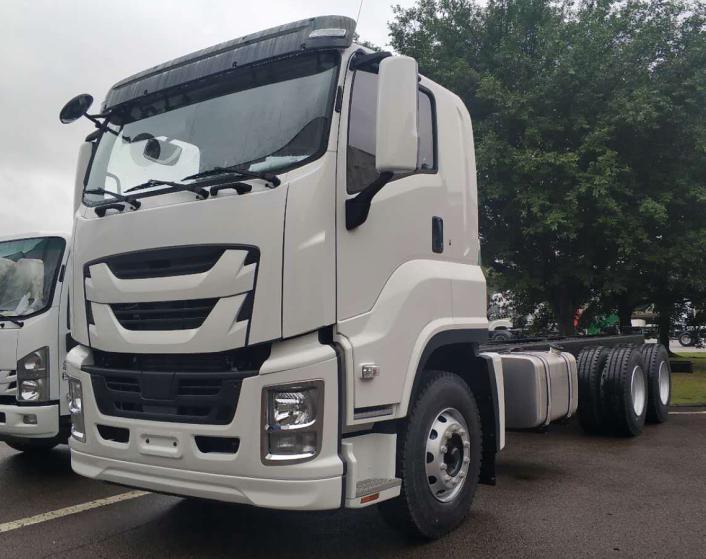

I. Chassis Parameter 底盘参数
Model/车型号： | QL1250U4SDZY | |
Brand/品牌： | QINGLING ISUZU/庆铃五十铃 | |
Series/车系： | VC66 | |
Drive Type/驱动形式： | 6x4 | |
Driver position/驾驶员位置： | Left-steering 左舵 | |
Overall dimension/外形尺寸： | 9745*2540*3055mm | |
GVW/总质量： | 25000KG | |
Curb weight/整备质量： | 9200KG | |
Wheelbase/轴距： | 4600+1370mm | |
Engine Model/发动机型号： | 6UZ1-TCG61 | |
Engine Power/发动机功率： | 279Kw/380HP | |
Emission/排放： | 欧六/Euro VI | |
Displacement/排量： | 9800ml | |
Fuel Type/燃油种类： | 柴油/Diesel | |
Cab/驾驶室： | Standard roof/标顶 | |
Front wheel track /前轮距： | 2060mm | |
Rear wheel track/后轮距： | 1855/1855mm | |
Tire/轮胎： | 12R22.5 18PR | |
Other configurations/其他配置： | 气刹/Air brake | |
ABS system/ABS系统 | ||
动力转向/Power steering | ||
空调/Air conditioning system | ||
免维修电池/Maintenance-free battery | ||
II. Upper body parameters/上装配置
Superstructure Configuration/上装配置
| Parts /部件 | Parameters/参数 |
Sewage Tank/污水罐 | 12 m³ | |
Clean Water Tank/清水罐 | 8 m³ | |
Tank Material/罐体材料 | Carbon Steel Q235/碳钢Q235 | |
Tank Wall Thickness/罐壁厚度 | 8mm | |
Front-mounted lifting mechanism and hydraulic rear cover opening/ 罐体前置举升和后盖液压开启 | ||
Sewage Pneumatic Ball Valve 污水气动球阀 | 150 mm | |
Sewage Pneumatic Ball Valve 污水气动球阀 | 100 mm | |
Combustion Unit/燃烧机 | Diesel/柴油 | |
High-Pressure Cleaner(Hand held spray gun)/ 高压清洗机（手持喷枪） | ||
Remote-Operated Boom Seat, Reel, and Hose Winder 遥控操作吊杆座，卷盘，盘管器 | ||
High-pressure Pipeline/高压管道 | 100m | |
Arrow Warning Light/箭头警示灯 | ||
Tank Bottom Lined with Stainless Steel 罐体底部铺不锈钢 | ||
Full Tank Alarm, Automatic Pressure Relief, Secondary Anti-Overflow System/ 满罐报警器，自动泄压，二级防溢 | ||
Toolbox Material/工具箱 | Stainless Steel/不锈钢材质 | |
Superstructure Coating Process/上装工艺 | Electrostatic Powder Coating and Baking Paint/静电喷粉烤漆 | |
Vacuum Pump/真空泵 | JUROP PVT 400 Roots Pump/ JUROP PVT 400罗茨泵 | |
Speed/转速 | 2500-3300 rpm/2500-330转/分 |
