QINGLING ISUZU Sewage suction truck 10000L 6*4 QL1250FNFZY

 QINGLING ISUZU Sewage suction truck 10000L  6*4  QL1250FNFZY

Advantages:

• More environmentally friendly

Qingling Guo VI products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.

• More economical (fuel saving and urea saving)

Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;

High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;

• High reliability and low maintenance cost.

• Stronger oil adaptability

Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.

• More cost-effective

• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.

QINGLING ISUZU Sewage suction truck 10000L  6*4  QL1250FNFZY（Euro 6）

Model：	QL1250FNFZY
Drive：	6X4
Overall dimension：	L:8960 / W:2540 / H:3040
Internal dimensions of cargo compartment railing(mm)：
GVW：	25000KG
Curb mass：	8140KG
Load mass：	kg
Wheelbase(mm)：	4350+1370 mm
Engine Model：	6HK1-TCG60
Engine power：	221kW/300PS
Fuel type：	Diesel
Emission：	Euro VI
Max. speed：	105km/h
Tire：	295/80R22.5 18PR
Cab：	One row with a berth
Cab allowable passengers：	3
Other configurations：	ABS Power steering Retro-reflective marking AC Free-maintenance battery
Upper body parameters

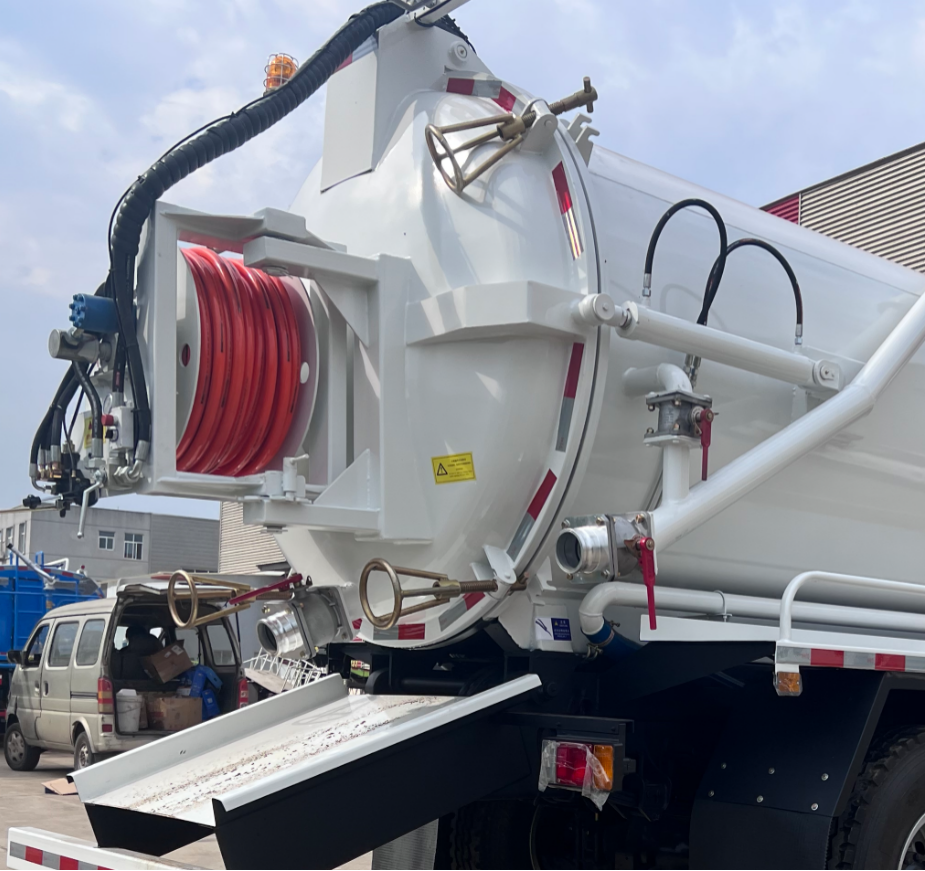

	6 square clear water tank, 4 square sewage tank, made of carbon steel material, with a thickness of 6MM, hydraulic lifting on both sides of the tank body, equipped with ladder, liquid level pipe, suction device, with drain outlet and feed inlet. Equipped with heavy-duty spiral suction hose, diameter 4 inches, pipe length 3-10 (30 meters) The rear head is equipped with a manual hydraulic reel, The high-pressure pipe is a 1-inch diameter flexible hose with a male end, a working pressure of 170-200BAR, and a burst pressure of 517BAR. It is made of lightweight and durable thermoplastic material. -120 meter
	Vacuum pump MORO60A from Italy
