QL1080BUHAY
ISUZU
Product Description

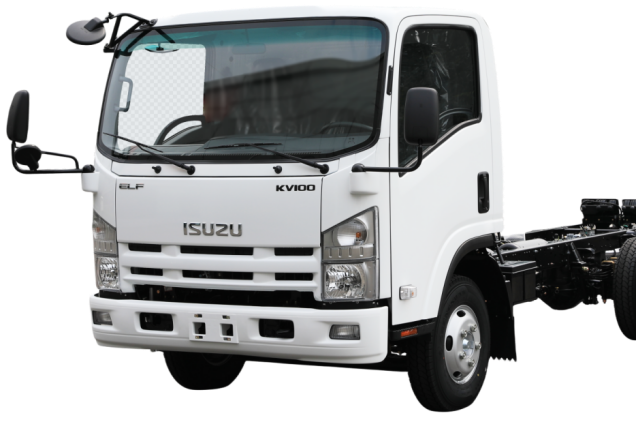

QINGLING ISUZU KV100 Milk Tanker Truck
Advantages:
• More environmentally friendly
Qingling Guo VI products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.
• More economical (fuel saving and urea saving)
Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;
High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;
• High reliability and low maintenance cost.
• Stronger oil adaptability
Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.
• More cost-effective
• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.
QINGLING ISUZU KV100 Milk Tanker Truck Specifications (Euro VI)
ISUZU Chassis Parameters/五十铃底盘参数
Model/车型： | QL1080BUHAY |
Overall dimension/外形尺寸： | 5875x2130x2315mm |
GVW/总质量： | 8280 KG |
Curb weight/整备质量： | 2560 KG |
Wheelbase/轴距(mm)： | 3365mm |
Engine Model/发动机型号： | 4KH1CN6LB |
Engine Power/发动机功率： | 88Kw/120PS |
Transmission Box/变速箱： | MSB-5MT |
Emission/排放： | Euro VI/ 欧六 |
Fuel Type/燃油类型： | Diesel/柴油 |
Displacement/排量: | 2999ml |
Cab/驾驶室: | Single row 单排 |
Front wheel track /前轮距： | 1690 mm |
Rear wheel track/后轮距： | 1655 mm |
Front/rear suspension 前悬/后悬： | 1120/1510mm |
Tire/轮胎： | 7.50R16LT 14PR |
Alex load/轴荷： | KG |
Max. Speed/最高时速: | 105 km/h |
Other configurations/其他配置： | ABS system/ABS系统 power steering/动力转向 Reflective signage/反光标识 air conditioning system/空调系统 Maintenance-free battery/免维护蓄电池 |

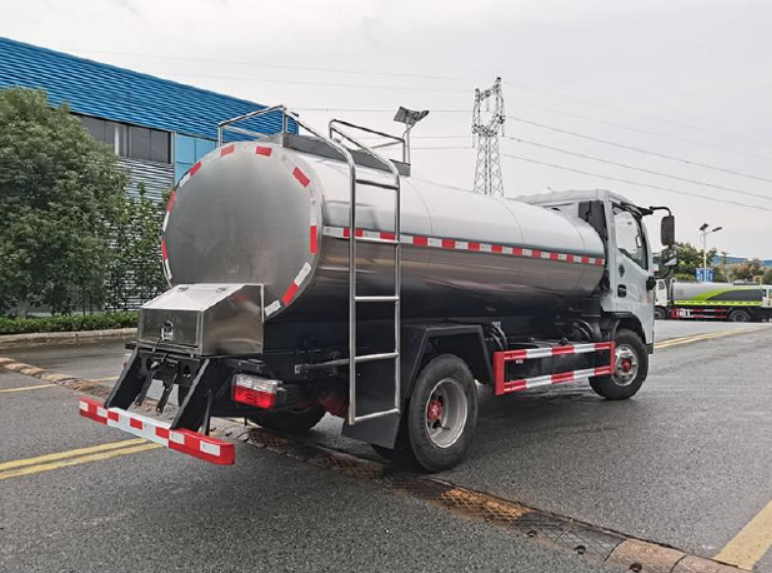

Upper body information 上装配置信息 | 4700L 奶罐车：罐体采用椭圆形卧式，车罐一体，罐体材质S304-2B, 通仓，70 mm聚氨酯喷涂+10mm橡塑保温棉，采用聚胺酯喷涂发泡，保温性能24小时不超过2℃；配备自动清洗球，由1个阀门控制，阀门接口∮51mm；进奶口/卸奶口，清洗口集成于罐车尾部不锈钢箱内，卸奶口直径50mm. 4700L Milk Tanker: The tank adopts an elliptical horizontal design with an integrated tank-chassis structure. The tank body is made of S304-2B stainless steel. It is a single-compartment tank. Insulation consists of 70 mm polyurethane spray foam plus 10 mm rubber foam insulation cotton, applied using polyurethane spray foaming technology, ensuring a temperature variation of no more than 2°C over 24 hours. Equipped with automatic cleaning balls, controlled by a single valve with a ∅51 mm connection port. The milk inlet/discharge port and cleaning port are integrated into a stainless steel box at the rear of the tanker. The discharge port has a diameter of 50 mm. |
