QL1110ANKACY
ISUZU
Product Description

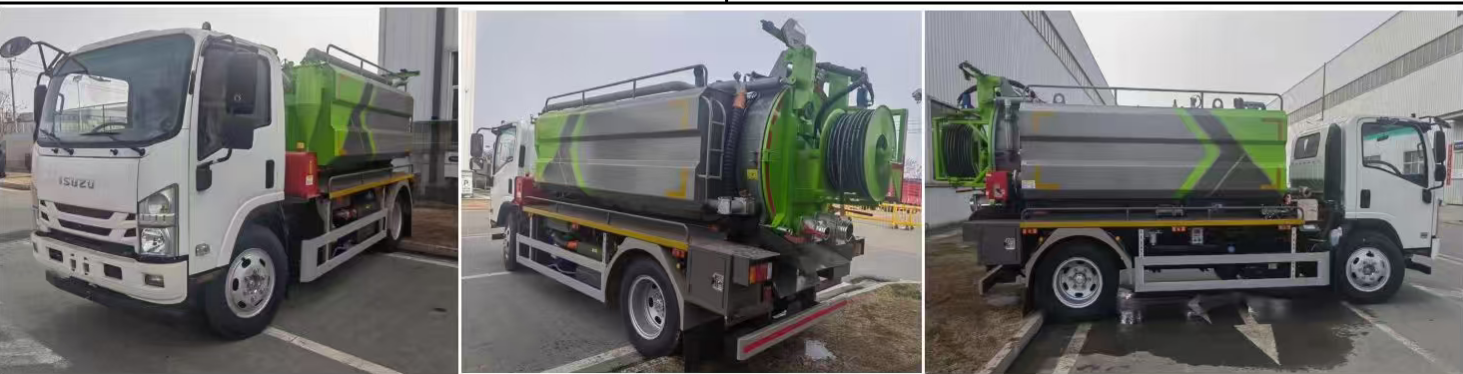

QINGLING ISUZU 700P sewage suction truck QL1110ANKACY
Advantages:
• More environmentally friendly
Qingling Guo VI products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.
• More economical (fuel saving and urea saving)
Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;
High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;
• High reliability and low maintenance cost.
• Stronger oil adaptability
Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.
• More cost-effective
• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.
QINGLING ISUZU 700P sewage suction truck QL1110ANKACY（Euro 6）
| Main Parameter/主要参数 | |||
| Model/车型号： | QL1110ANKACY | ||
| Chassis 底盘 |
Brand/品牌： | QINGLING ISUZU/庆铃五十铃 | |
| Series/车系： | 100P | ||
| Drive Type/驱动形式： | 4X2 | ||
| Driver position/驾驶员位置： | Left-steering 左舵 | ||
| Overall dimension/外形尺寸： | 6980*2170*2450mm | ||
| GVW/总质量： | 10550KG | ||
| Curb weight/整备质量： | 3400KG | ||
| Wheelbase/轴距： | 3815mm | ||
| Engine Model/发动机型号： | 4HK1-TCG61 | ||
| Engine Power/发动机功率： | 140Kw/190HP | ||
| Emission/排放： | 欧六/Euro VI | ||
| Displacement/排量： | 5193ml | ||
| Fuel Type/燃油种类： | 柴油/Diesel | ||
| Cab/驾驶室： | Single/单排 | ||
| Front wheel track /前轮距： | 1680mm | ||
| Rear wheel track/后轮距： | 1650mm | ||
| Tire/轮胎： | 8.25R20 | ||
| Other configurations/其他配置： | 气刹/Air brake | ||
| ABS system/ABS系统 | |||
| 动力转向/Power steering | |||
| 空调/Air conditioning system | |||
| 免维修电池/Maintenance-free battery | |||
| Upper body information 上装配置信息 |
Tank Configuration 罐体配置 |
Sewage tank volume: 7 cubic meters, clean watertank volume: 3 cubic meters; with 2 internalanti-wave plate supports 污水罐容积：7 立方米，清水罐容积：3 立方米；内部配备 2 块防浪板支撑 |
|
| Plate Configuration 板材配置 |
6mm Wugang high-quality carbon steel plate 6mm 武钢优质碳钢板 |
||
| Pump Configuration 泵配置 |
Pinfu 215 high-pressure pump, SK-9 watercirculation pump 品孚 215 高压泵，SK-9 水循环泵 |
||
| Cleaning Device 清洗装置 |
Rear-mounted high-pressure cleaning reel, with60m 19 high-pressure pipe and 10 standardhigh-pressure nozzles 后置式高压清洗卷盘，配备 60 米 19 高压管及 10 个标准高压喷嘴 |
||
| Suction and DischargeDevice 吸排装置 |
1 piece of 8m water soaking suction pipe; 1100-caliber suction port, 1 100-caliber dischargeport;with anti-overflow valve and sewage sightpipe 1 根 8 米吸水软管；1100 口径吸水口，1 个 100 口径排水口；带防溢流阀和污水观察管 |
||
| Function Configuration 功能配置 |
With self-unloading function; rear door with hydraulic opening; with air-blowing water function, sprinkler pipe device (water-sewageintercommunication), reel cleaning function and hand washing function 具备自卸功能；后门液压开启；具备吹气排水功能、洒水管装置（污水互通）、卷盘清洗功能及洗手功能 |
||
