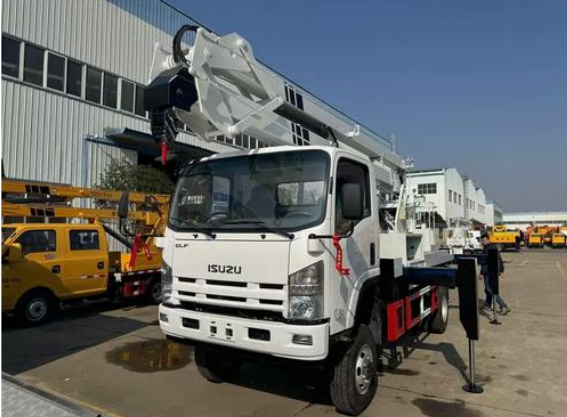

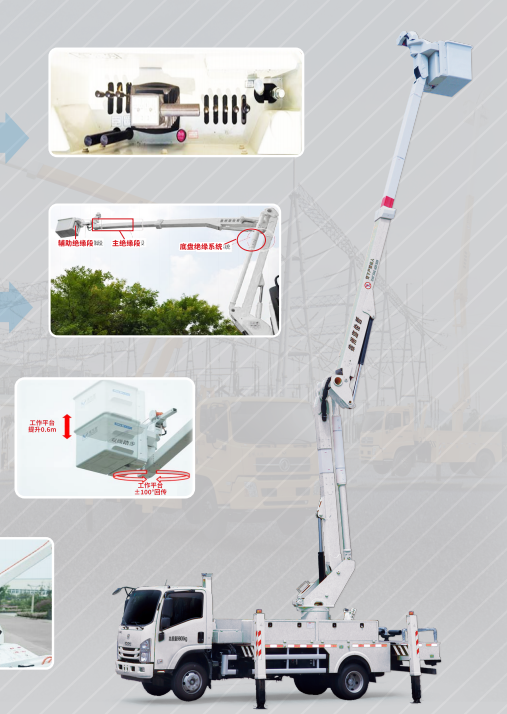

QINGLING ISUZU 700P 18m Insulated Aerial Work Platform QL1120AJPAY

Condition: New
Steering: Left
Horsepower:205ps
Fuel Type: Diesel
Drive: 4x2
Emission Standard: Euro 6
Brand: Isuzu
Overall size: 8860 x 2250 x 3500mm


Availability:
Quantity:
  • QL1120AJPAY

  • ISUZU

Product Description

QINGLING ISUZU   700P 18m Insulated Aerial Work Platform  QL1120AJPAY





Advantages:


• More environmentally friendly

Qingling Guo VI products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.


• More economical (fuel saving and urea saving)

Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;

High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;


• High reliability and low maintenance cost.


• Stronger oil adaptability

Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.


• More cost-effective

• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.





QINGLING ISUZU 700P 4x2 Medium Truck with 5 Ton Crane  QL1120AJPAY(Euro 6)


Model:

QL1120AJPAY

Drive:

4×2

Overall dimension:

L:8860 / W:2250 / H:3500

GVW:

11995KG

Curb mass:

3995KG

Load mass:


Wheelbase(mm):

5150 mm

Engine Model:

4HK1-TCG60

Engine power:

150kW/205PS

Fuel type:

Diesel

Emission:

Euro VI

Max. speed:


Tire:

8.25R20 16PR

Cab:

Single row

Cab allowable passengers:

2

Front wheel track /前轮距: 1680mm
Rear wheel track/后轮距: 1720mm
Axle load/轴荷: 4000/7995KG

Other configurations:


AC

ABS

Air brake

Power steering

Retro-reflective marking

Air conditioning system

Free-maintenance battery
