QL1040AMHWY
ISUZU
Product Description

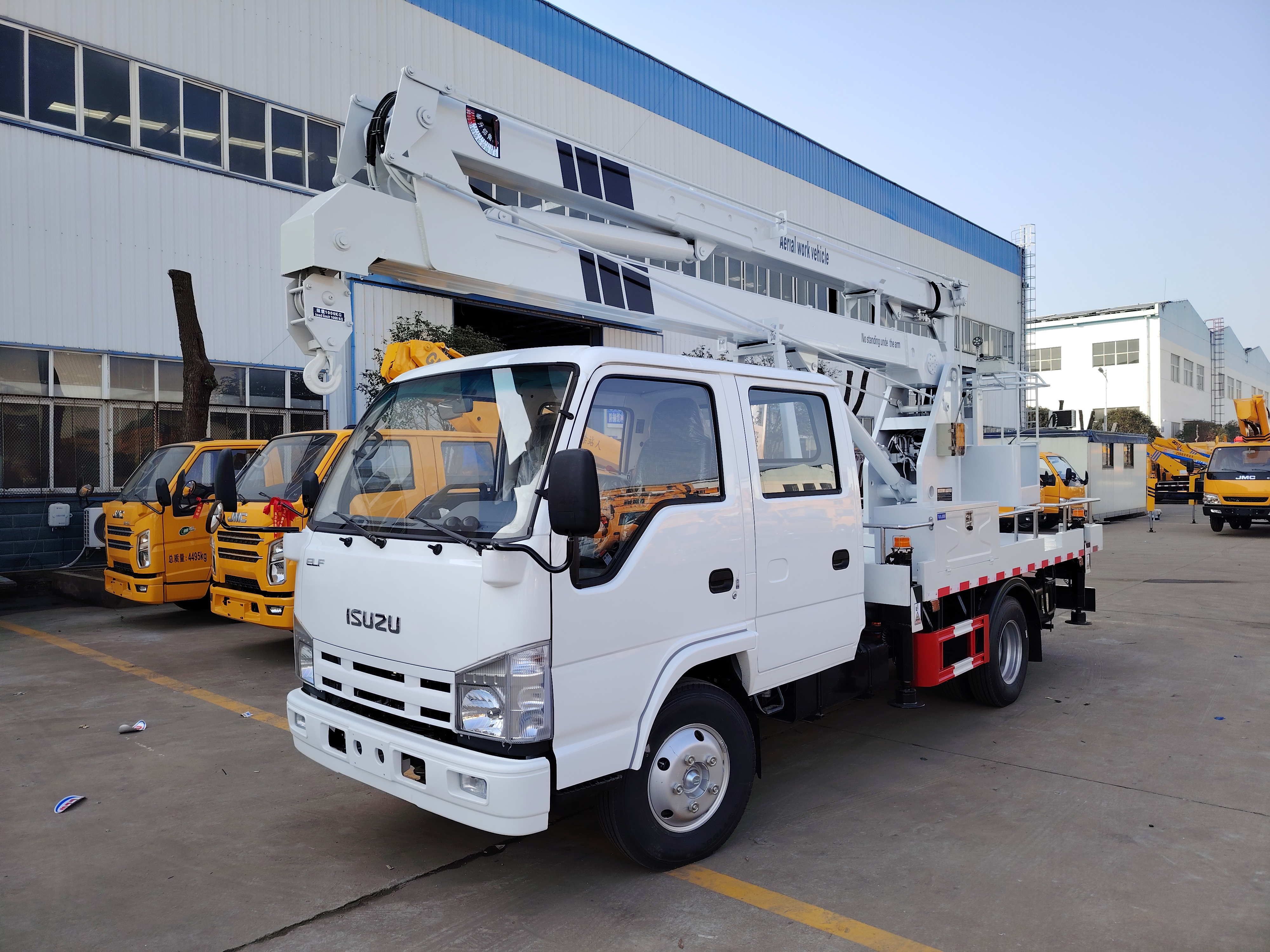

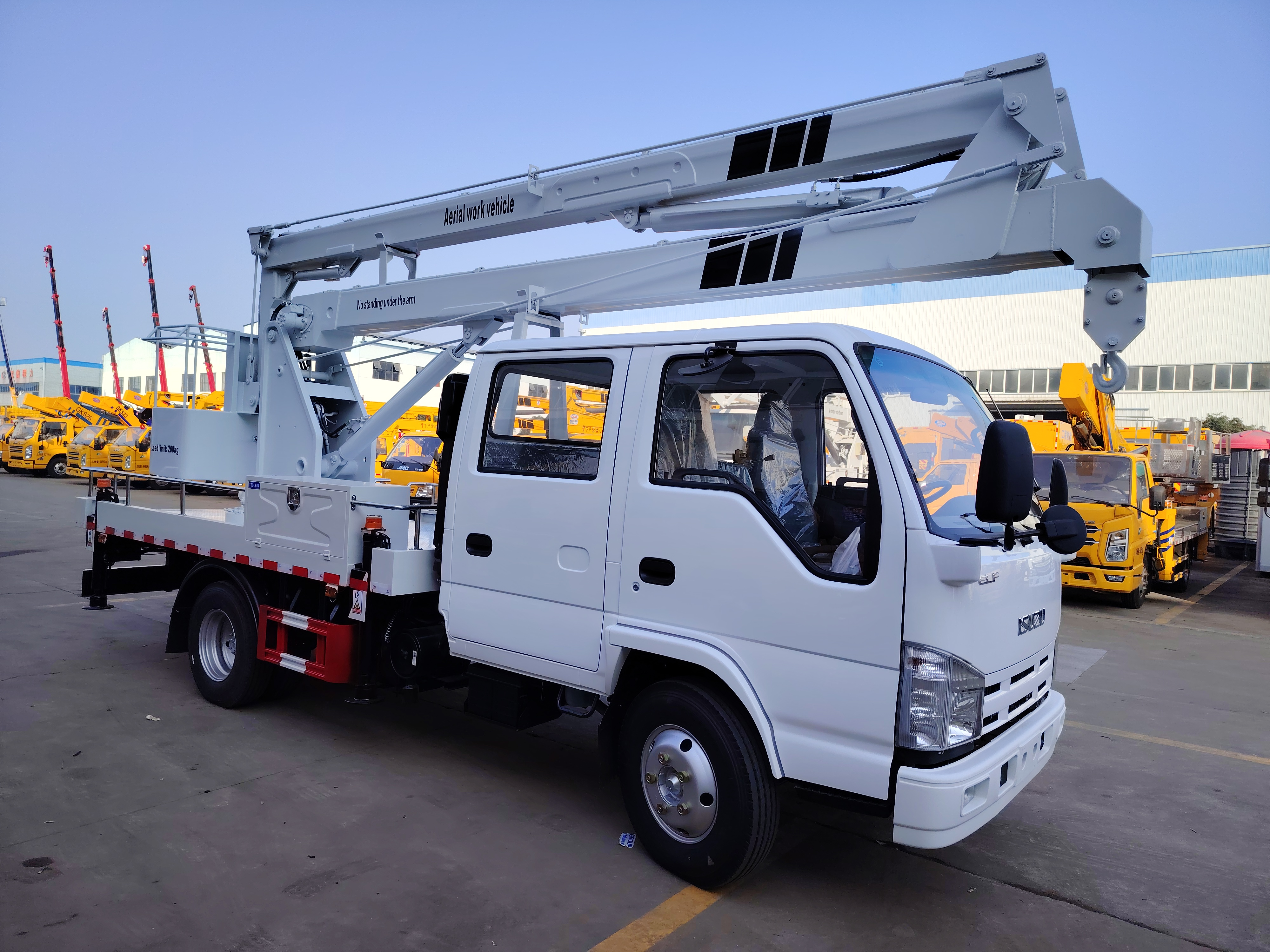

QINGLING ISUZU 100P 14m Aerial Work Platform QL1040AMHWY
Advantages:
• More environmentally friendly
Qingling Guo V products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.
• More economical (fuel saving and urea saving)
Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;
High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;
• High reliability and low maintenance cost.
• Stronger oil adaptability
Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.
• More cost-effective
• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.
QINGLING ISUZU 100P 14m Aerial Work Platform QL1040AMHWY（Euro 5）
1. Chassis Parameter底盘参数
Model： | QL1040AMHWY |
Drive： | 4×2 |
Overall dimension： | L:5900 / W:1800 / H:2200 |
GVW： | 4495KG |
Curb mass： | 2130KG |
Load mass： | |
Wheelbase(mm)： | 3360 mm |
Engine Model： | 4KH1CN5MD |
Engine power： | 85kW/115PS |
Fuel type： | Diesel |
Emission： | Euro V |
Max. speed： | |
Tire： | 7.00R16 8PR |
Cab： | Double row |
Cab allowable passengers： | 2 |
| Front wheel track /前轮距： | 1377mm |
| Rear wheel track/后轮距： | 1425mm |
| Axle load/轴荷： | |
Other configurations： | ABS Air brake Power steering Retro-reflective marking Air conditioning system Free-maintenance battery |
2.Main parameters of upper body/上装技术参数：
Category/类别 | Items/项目 | Data/数据 | |
Three-section folding arm,360°rotation 三节折臂，360°回转 | |||
Main performance parameters 主要性能参数 | Rated load of working platform 吊篮额定载荷 | ≤200KG | |
Dimension of working platform 吊篮尺寸 | 1050*590*1150mm | ||
Max. Working height 最大作业高度 | 14m | ||
maximum working radius 最大作业半径 | 6.6m | ||
Maximum lifting capacity 最大起吊质量 | 1000KG | ||
maximum lifting height 最大起吊高度 | 7.4m | ||
Outrigger span 支腿跨距 | Horizontal 横向 | 3560mm | |
Vertical/纵向 | 3250mm | ||
Other configurations 其他配置 |
外置拉杆机械调平，带油缸锁止功能，转台和吊蓝双位操作。电控液压上下操作，四支腿全部水平伸出，并可单独调节，平衡拉杆全部为实心。带角度传感器。 with external rod mechanical leveling, equipped with cylinder locking function, dual-position operation from both the turntable and the basket. Electrically controlled hydraulic operation for both upper and lower controls. All four outriggers extend horizontally and can be adjusted individually. Stabilizer rods are all solid. Equipped with an angle sensor. | ||
