QINGLING EVM600 Pure Electric Truck Chassis QL1100BEVEYHAY

Model: QL1030CTGW
Drive:  4x2
Engine power:150ps
Emission: Eurp VI
Overall dimension: 5382 x 1877 x 1840,1815mm


Availability:
Quantity:
  • QL1030CTGW

  • QINGLING

Product Description

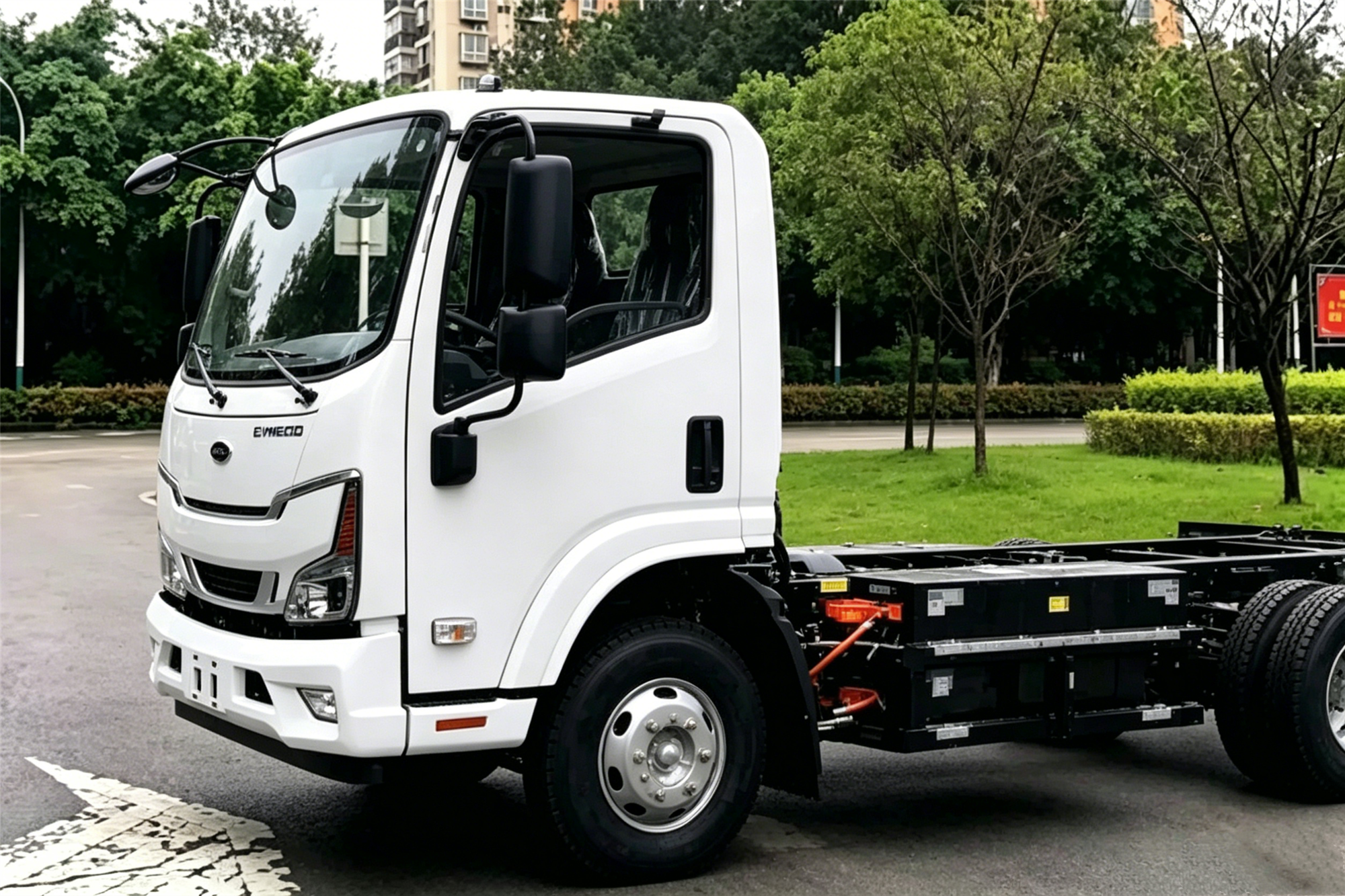

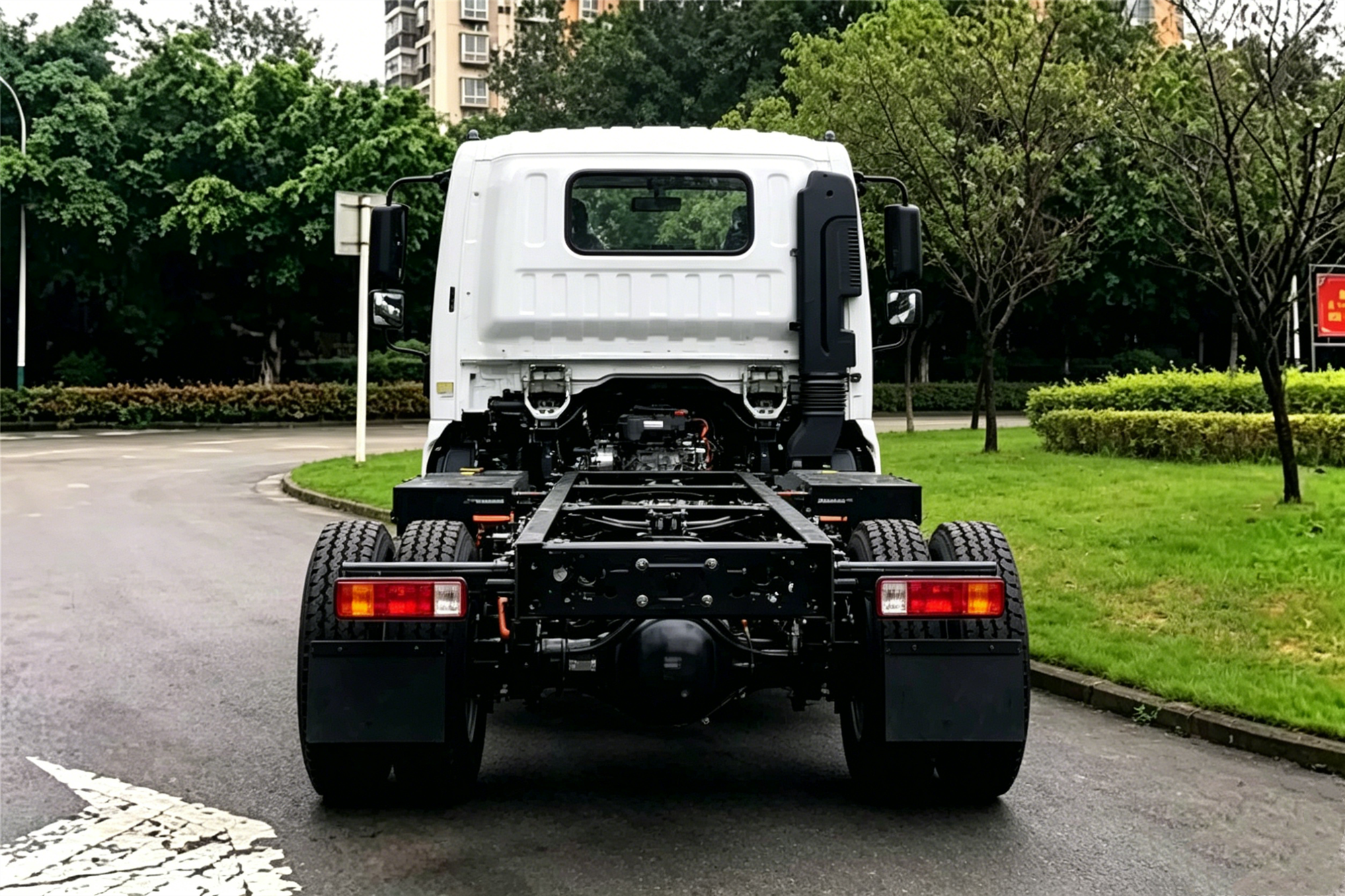

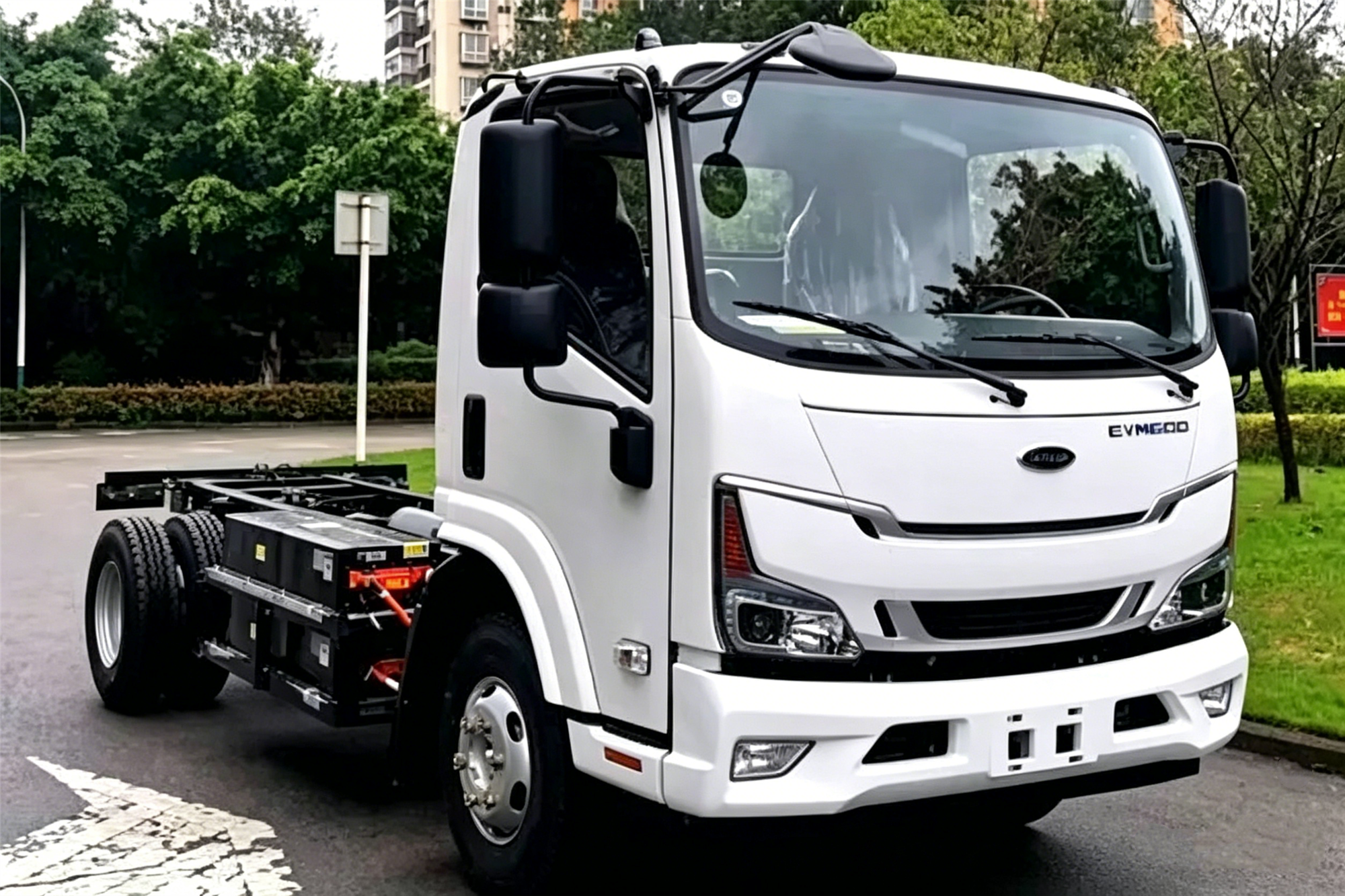

QINGLING EVM600  Pure Electric  Truck Chassis  QL1100BEVEYHAY



Advantages:

1. Low cost

The use cost of electric vehicles is lower than that of diesel engines, without the maintenanc

 and repair costs of various oils and filters of traditional fuel cards, and the maintenance cost is low.

  • 2. High comfort Low noise, no vibration, good comfort.

  • 3.

    High security

  • The power battery is arranged on both sides of the frame, the center of gravity of the vehicle is

  • reduced, effectively preventing rollover, and higher safety; Standard ABS, improve braking safety.

  • At the same time, the truck adopts a split door mirror, plus two larger size ground mirrors, which

  • can effectively reduce the driver's blind area.

  • 4.Easy to operate

  • Automatic transmission/no transmission, no clutch scooter, automatic transmission control is simple

  • 5.High power

  • The motor directly drives the rear axle, the initial response is rapid, and the acceleration ability is beyond.

  • 6.Long driving range

  • Choice of lithium iron phosphate battery, battery storage, longer mileage.

  • 7.The cargo box has a large volume

  • The power battery arrangement on both sides of the frame does not occupy the space of the cargo box,

  • the floor of the box is flat, and the cargo box volume of Qingling pure electric logistics vehicle is large.




EVM600 Pure Electric  Truck Chassis Specifications


Model:

QL1100BEVEYHAY

Drive:

4×2

Overall dimension:

L:5935/ W:2130 / H:2285

Internal dimensions of cargo compartment railing(mm):

——

GVW:

9995 KG

Curb mass:

3660 KG

Load mass:

——

Wheelbase(mm):

3660 mm

Motor Model:

TZ370XS-LKM1201

Motor Power:

185kW

Peak Power: ——
Battery Brand CATL
Battery Model
Front/Rear wheel track
1640/1655mm
Front/Rear Suspension

Max. speed:

90km/h

Tire:
7.00R16  8PR
Driving range  285km
Charge time

Fast charge/快充 1-2 hours/小时

Other configurations:

ABS syetem

Power steering

Refltective signage

Aluminium flat compartment

Lithium iron  phosphate battery
