QINGLING 5000L Fire Fighting Truck

5000L water foam fire truck is adopted 700P 4475mm wheelbase chassis, equipped with a 5000L water tank , as well as standard firefighting equipment, such as fire extinguished equipment, forcible entry rescue tool and so on. The vehicle has crew cab and max 5 passengers inside. The body main structure is made by high quality steel and the equipment room is covered with shutter door and equips rescuer and personal protection device, which is based on the requirement.
Availability:
Quantity:
Inquire Add to Basket

Product Description

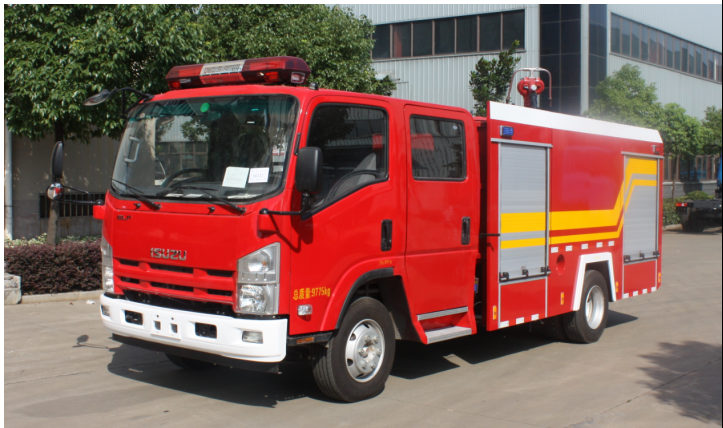

QINGLING 5000L Fire Fighting Truck-700P



5000L 700p



Specification

Name

Parameter

Overall Dimension

7600x 2300x2800mm

Water Tank Capacity

5000L

Engine

190hp

Emission

Euro V

GVW

10000KGS

Max Speed

100km/h

Front / Rear Axle Load

4T /7T

Approach / Departure Angle

20/ 11

Allowable Cab Passengers

2+3

Ⅱ Chassis

1. Specification

Model

QL1100A8MAY

Manufacture

ISUZU

Engine

ISUZU, 4HK1-TC51, 190hp

4 stroke water-cooled, 4 cylinders inline

Displacement

5193ml

Emission

Euro V

Wheel base

4475mm

Max Speed

100km/h

Transmission

ISUZU MSB brand, Manual,6 forward and 1 reverse

Tire

235/75R17.5, 6pcs and 1 spare tire

Brake system

Air brake

Driving type

4x2

2. Driving Cab

Form

crew cab with 4 doors

Passenger

2+3

Steering Wheel

Left Hand Drive

Equipment

1. Control box for alarm and alarm lamp
2. Jacklight and strong flashing light indicator

Ⅲ Body

1. Body

Equipment Room

Body is made by high quality steel with phosphate treatment. The inner plate and floor is made by anodized aluminum plate.

Equipment Rack

Aluminum alloy structure

Ladder

on the backside body


2. Water Tank

Water Tank capacity

5000L

Material

Carbon steel, side 3mm bottom 4mm

Tank fixing

Fixed on chassis frame

Manhole

One manhole with a diameter of 500 mm, with quick locking/opening device


3. Fire Pump

Fire pump model

CB10/40

Water flow rate

40L/S, 1.0MPa

Maximum suction depth

7m

Diversion device

Self-contained slide pump

Priming time

Maximum depth of suction < 35s

4. Fire Monitor

Fire monitor model

PS40

Flow rate

40L/s, 1.0MPa

Covering range

Range≥50m

Rotating Angle

360° Horizontal Rotation

Max. Pitch / dip angle

pitch angle≤-35°
dip angle≥+75°


5. Electric Device

Flashing light

RED-RED color

Lamp

1.boday lamp

2. LED on equipment rack

3.Jacklight on both side of body

Cab device

1. Long line alarm lamp on top of the cab

2. Electric alarm
