Product Description

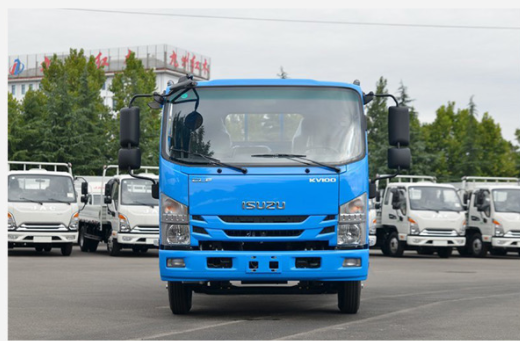

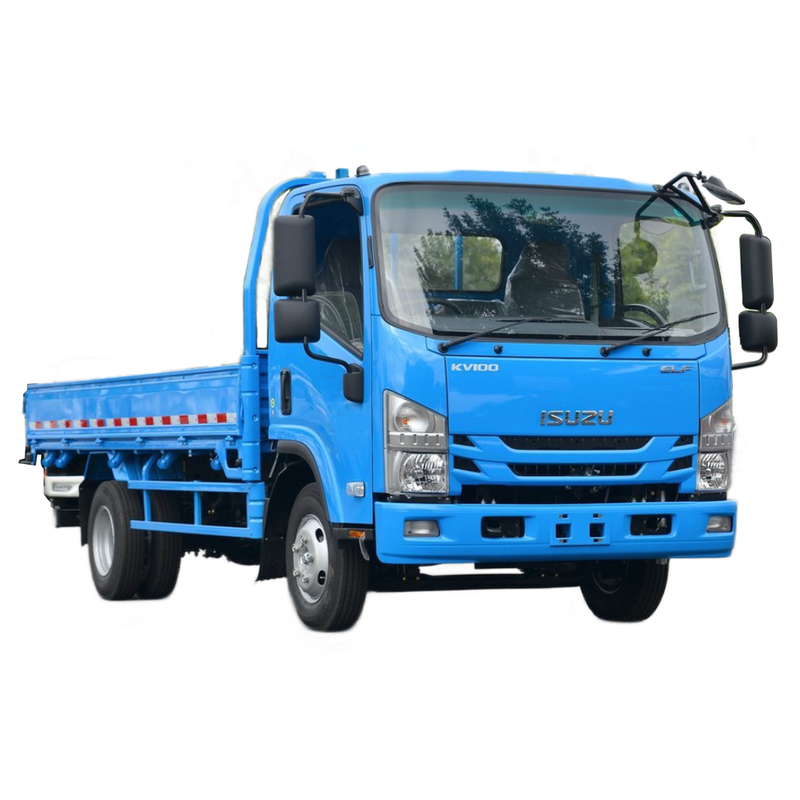

4x2 Isuzu KV100 Mini Dump Tipper Truck
Generally called a truck, it refers to a car mainly used to transport goods, and sometimes refers to a car that can tow other vehicles, belonging to the category of commercial vehicles. Generally, according to the weight of the car, it can be divided into two types: heavy and light. Most trucks are powered by diesel engines, but some light trucks use gasoline, LPG or natural gas.
Advantages:
• More environmentally friendly
Qingling Guo V products have achieved low emission and low fuel consumption in the whole life cycle. The performance of the whole vehicle has been improved synchronously, with lower noise, less jitter and quieter and more comfortable driving.
• More economical (fuel saving and urea saving)
Low fuel consumption, saving more than 10% - 15% fuel compared with domestic vehicles with the same load capacity;
High precision calibration of urea injection quantity reduces the user's use cost and is convenient for refitting customers;
• High reliability and low maintenance cost.
• Stronger oil adaptability
Taking full account of the use conditions of Chinese oil products and users, the matching development has improved the adaptability to oil products.
• More cost-effective
• In the case that the growth rate of domestic similar national six models is higher than that of overseas five models by more than 10% - 20%, Qingling only increased by 3-4%.
Isuzu Tipper Truck Specifications
ITEM | UNIT | PARAMETER | |
Vehicle |
| ISUZU KV100 dump truck | |
Overall dimensions | mm | 5800×2000×2260 | |
Box dimension | mm | 3200x1800x400 | |
GVW | kg
| 4500 | |
Curb weight | 2500 | ||
Payload | 2000 | ||
Wheel base | mm
| 3360 | |
F/R track base | 1385/1395 | ||
F/R Suspension | 1200/1080 | ||
Approach/departure angle | ° | 20/12 | |
Max speed | km/h | 90 | |
Axle Load | kg | 2500/4800 | |
Drive model | 4x2 | Fuel type | Diesel |
Tire specification | 7.00R16 | Number of axles | 2 |
Engine | 4KH1CN5MD | ||
Emission/kw | 2999ml/85Kw, 115Hp | ||
type | MSB 5F/1R | ||
Rate speed rpm | 2900 | ||
Max Torque N.M/ rpm | 277/1500 | ||
Standard Configuration | Tank material Q235 Air condition available Single row Left hand driving Middle lifting system Bucket side 3mm and bottom 4mm | ||
